AL
Automotvie Relay

. Up to 40A switching capability

. 1 Form A & 1 Form C contact arrangement

. Plastic Bracket & Metal Bracket Available

. Ambient temperature range: -40℃ to 85℃

. Environmental friendly product (RoHS compliant)

. Available for PC board mounting & direct insert mounting

Rear Windows Defogger /

Battery Disconnection Device /

Air-Conditioning System /

Power Distribution /

Fog Lamp & Headlight Control /

Fuel Pump Control /

ABS /

Traction Control system /

Cooling Fan Control /

Heating Control /

Power Supply Management System, etc

. Coil Voltage: 12~24VDC

. Contact Arrangement: 1 Form A, 1 Form C

. Contact Rating:

 1A: 40A 14VDC

 1C: NO: 40A 14VDC

        NC: 30A 14VDC

. Max. Switching Power: 560W

. Max. Switching Current: 40A

. Min. Contact Load: 1A 6VDC

. Coil Power Consumption: 1.6W~1.8W

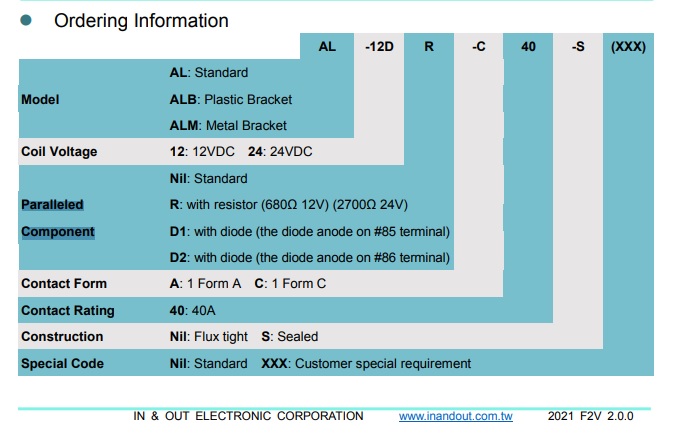

. Standard Type / Plastic Bracket / Metal Bracket available

. Paralleled Component: with diolde / with resistor

. Standard flux tight / sealed type

. Weight: approx. 28g

Dimension: 27.4 x 28.4 x 25.0 mm

IATF 16949: 2016

ISO 9001
