SIGNAL RELAYTELECOM RELAY
Relay
SIGNAL RELAYTELECOM RELAY
Model Type |
Appearance
Size(mm) |
Contact Form |
Max. Switching Current |
Coil Voltage | Terminal Type |
Mounting Holes (Bottom View) |

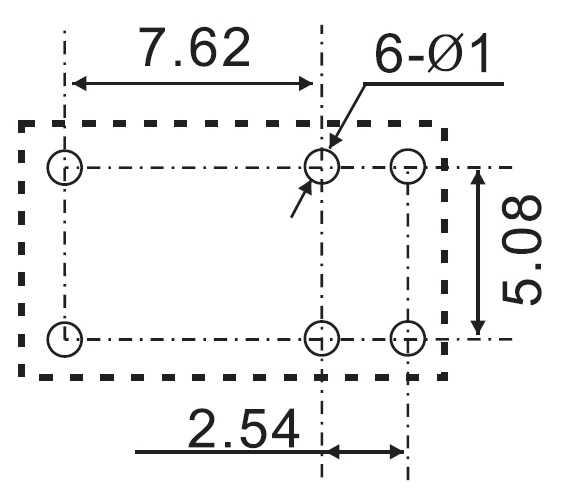

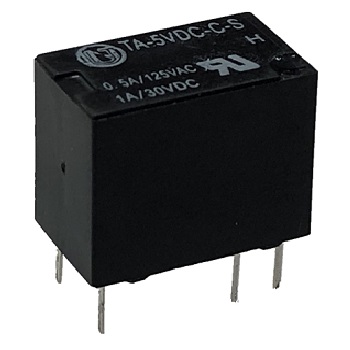

TA
[Detail] [PDF] |
12.3 * 7.3 * 10.2 |
1C | 1A | 3~24 VDC | PCB | |

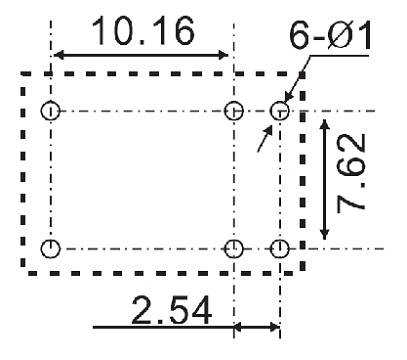

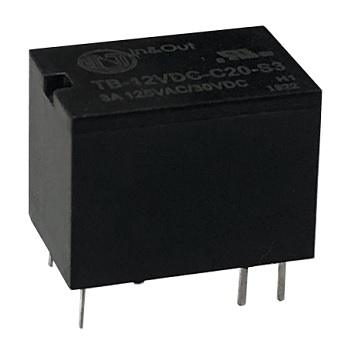

TB
[Detail] [PDF] |
15.5 * 10.5 * 11.7 |
1C | 3A | 3~24 VDC | PCB | |

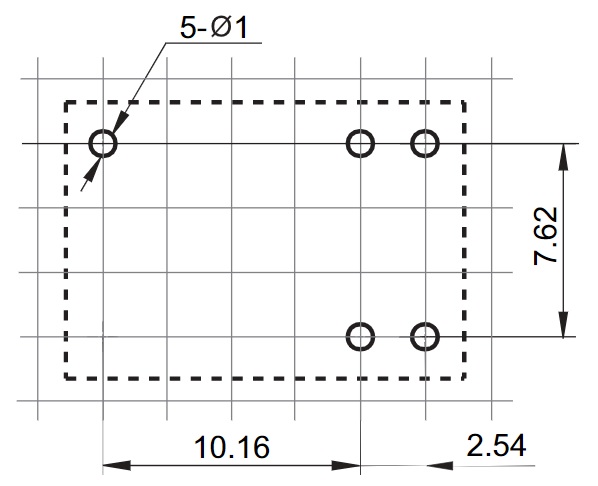

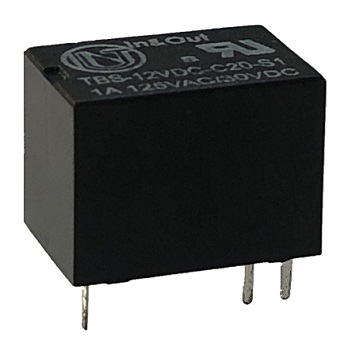

TBS
[Detail] [PDF] |
15.5 * 11.0 * 11.5 |
1C | 3A | 3~24 VDC | PCB | |

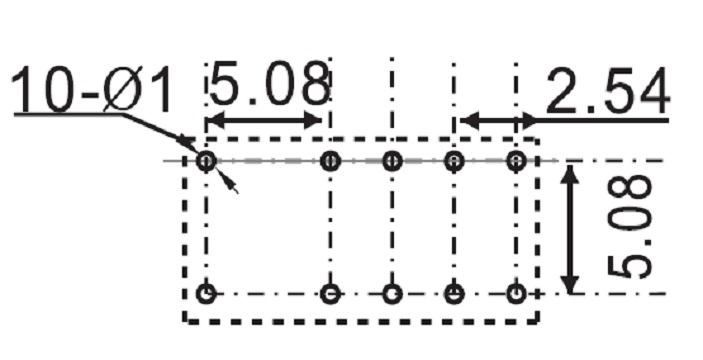

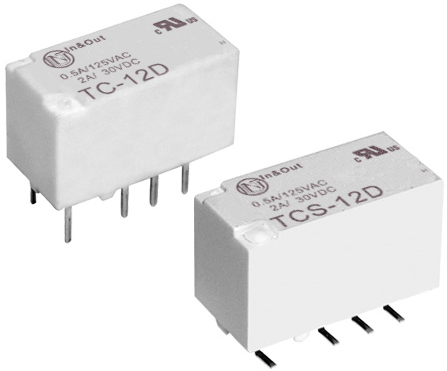

TC
[Detail] [PDF] |
15.0 * 7.5 * 9.4 |
2C | 4A | 1.5~48 VDC | PCB | |
TCS
[Detail] [PDF] |
15.0 * 7.5 * 9.8 (SMT) |
2C | 4A | 1.5~48 VDC | PCB | |

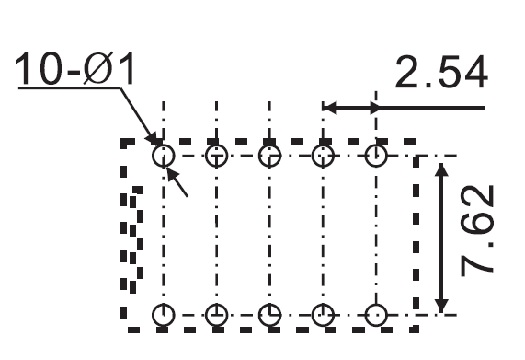

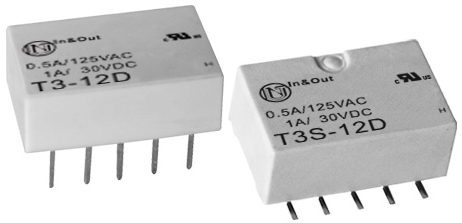

T3
[Detail] [PDF] |
14 * 9 * 5 |
2C | 1A | 1.5~24 VDC | PCB | |

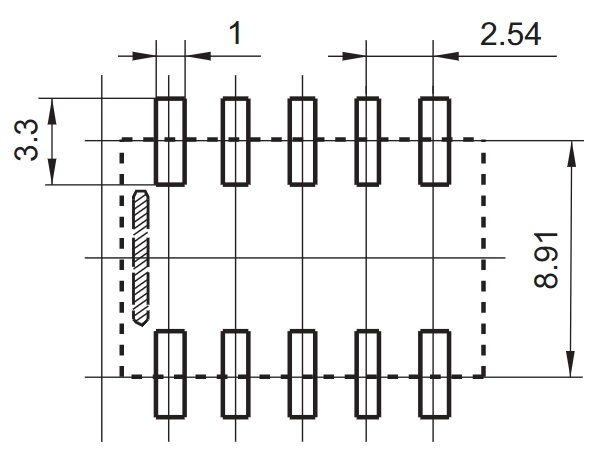

T3S
[Detail] [PDF] |
14 * 9 * 5 |
2C | 1A | 1.5~24 VDC | PCB | |

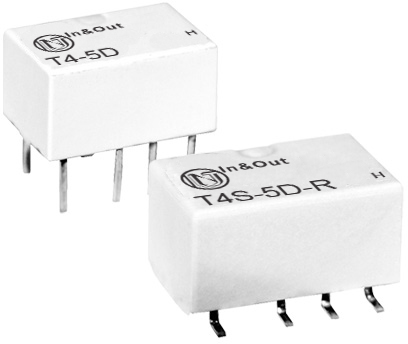

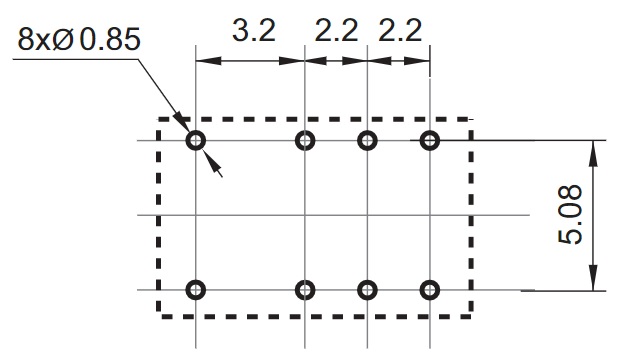

T4
[Detail] [PDF] |
10 *6.5 *5.4 |
2C | 2A | 1.5~24 VDC | PCB | |

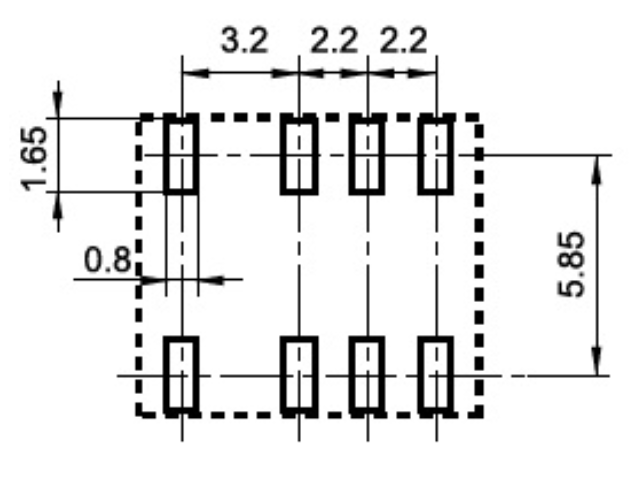

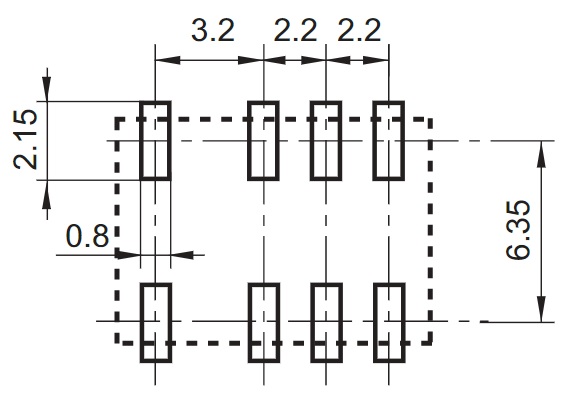

T4S
[Detail] [PDF] |
10 *6.5 *5.4 |
2C | 2A | 1.5~24 VDC | PCB | |

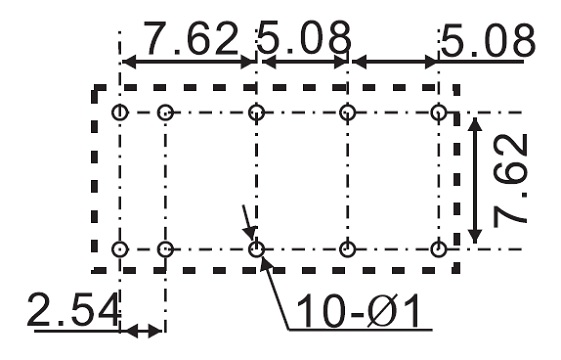

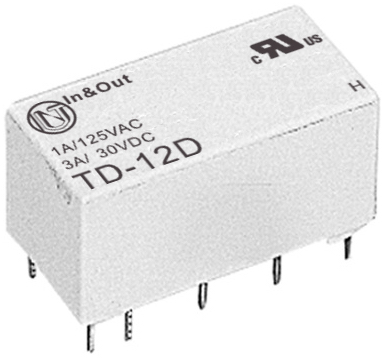

TD
[Detail] [PDF] |
20.2 * 10.0 * 10.6 |
2C | 3A | 3~48 VDC | PCB | |

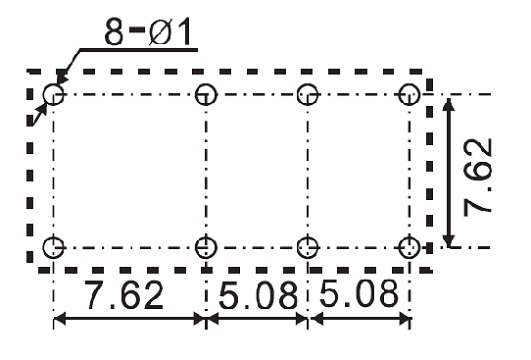

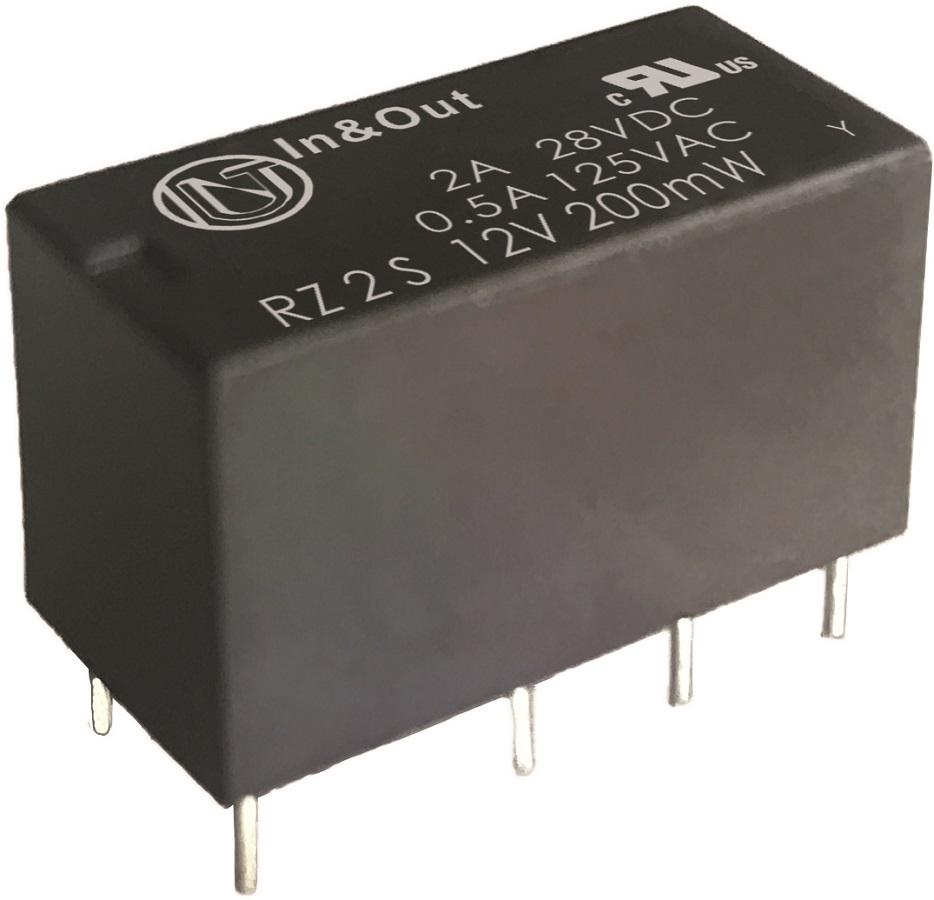

RZ2
[Detail] [PDF] |
20.2 x 10.0 x 12.0 |
2C | 2A | DC: 5~24 | PCB | |

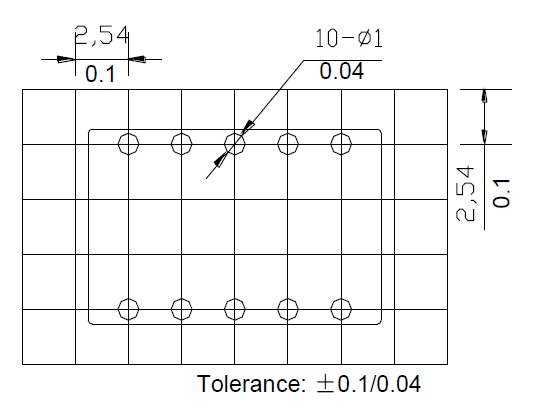

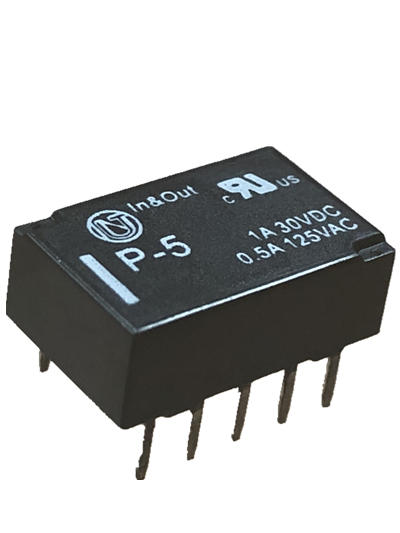

P
[Detail] [PDF] |
14 * 9 * 5 |
2C | 1A | DC: 3~24 | PCB |
