PMA216

• SOP package 4 Pin type in miniature design

• Low driver power requirements (TTL/CMOS Compatible)

• No moving parts

• High reliability

• Arc-Free with no snubbing circuits

• 1500Vrms Input/Output isolation

• Tape & Reel version available

• Telecommunications (PC, Electronic notepad)

• Measuring and Testing equipment

• Industrial control

• Security equipments

• High speed inspection machine

• Medicial equipments

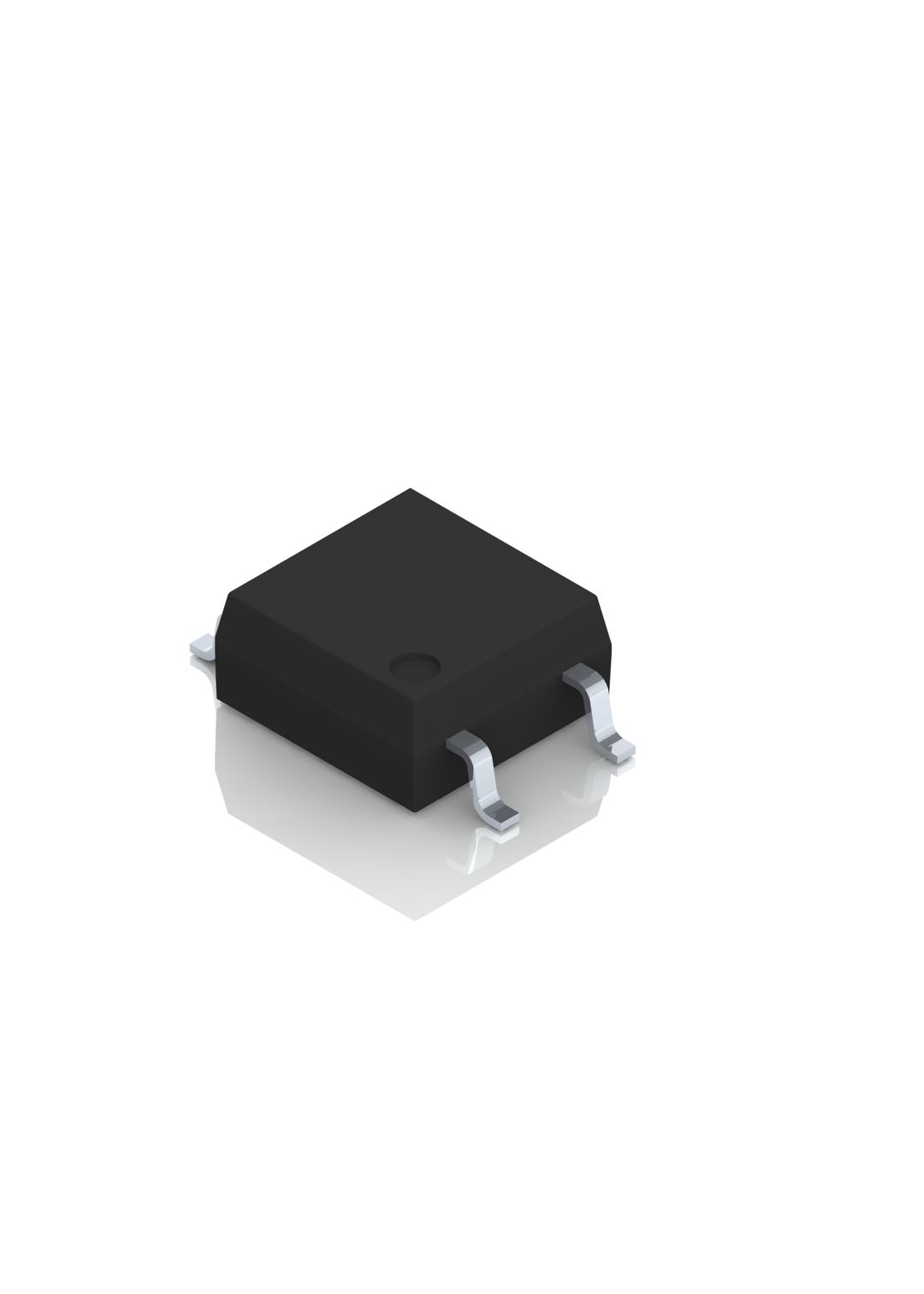

PMA216 is a miniature 1-Form A solid state relay in a 4 pin SOP package that employs

optically coupled MOSFET technology to provide 1500V of input to output isolation.

The optically coupled input is controlled by a highly efficient GaAlAs infrared LED and

MOS FETs on the output side.

• Package: SOP4

• Load: AC/DC

• Load voltage: 20V

• Load current: 1.7A

• Contact: 1A

• On Resistance Ron: 1.2Ω

• Turn-On Time Ton: 1.5ms

• Turn-Off Time Toff: 0.1ms

• Operation LED Current (Max.) Ifon: 2.0mA

• LED Forward Voltage (Max.): 1.4V

• Off-State Leakage Current Ileak Ileak: 1μa

Size: 4.4 * 4.3 * 2.0mm
