CEA
High Power Relay

. 25A Switching Capability

. Heavy load up to 6925VA

. 4.5kV dielectric strength (between coil and contacts)

. PCB & QC layouts available

. UL insulation system: Class F

. With bracket cover (CE-B Type)

. Environmental friendly product (RoHS compliant)

. Dimensions: 30.4 x 16.0 x 23.3 mm (PCB & QC)

                     30.4 x 16.0 x 29.8 mm (Bracket)

Home Appliances /

A/C Control /

Electronic Water /

Heater /

Refrigerator /

Refrigerator Dehumidification Control Inverter, etc.

. Coil Voltage Form: DC

. Coil Voltage: 3~48VDC

. Coil Power Consumption: 0.9W

. Contact Arrangement: 1 Form A

. Max. Switching Power: 6925VA

. Max. Switching Voltage: 300VAC

. Max. Switching Current: 25A

. Single Contact

. Terminal Type: PCB & QC

. Weight:  Approx. 23g

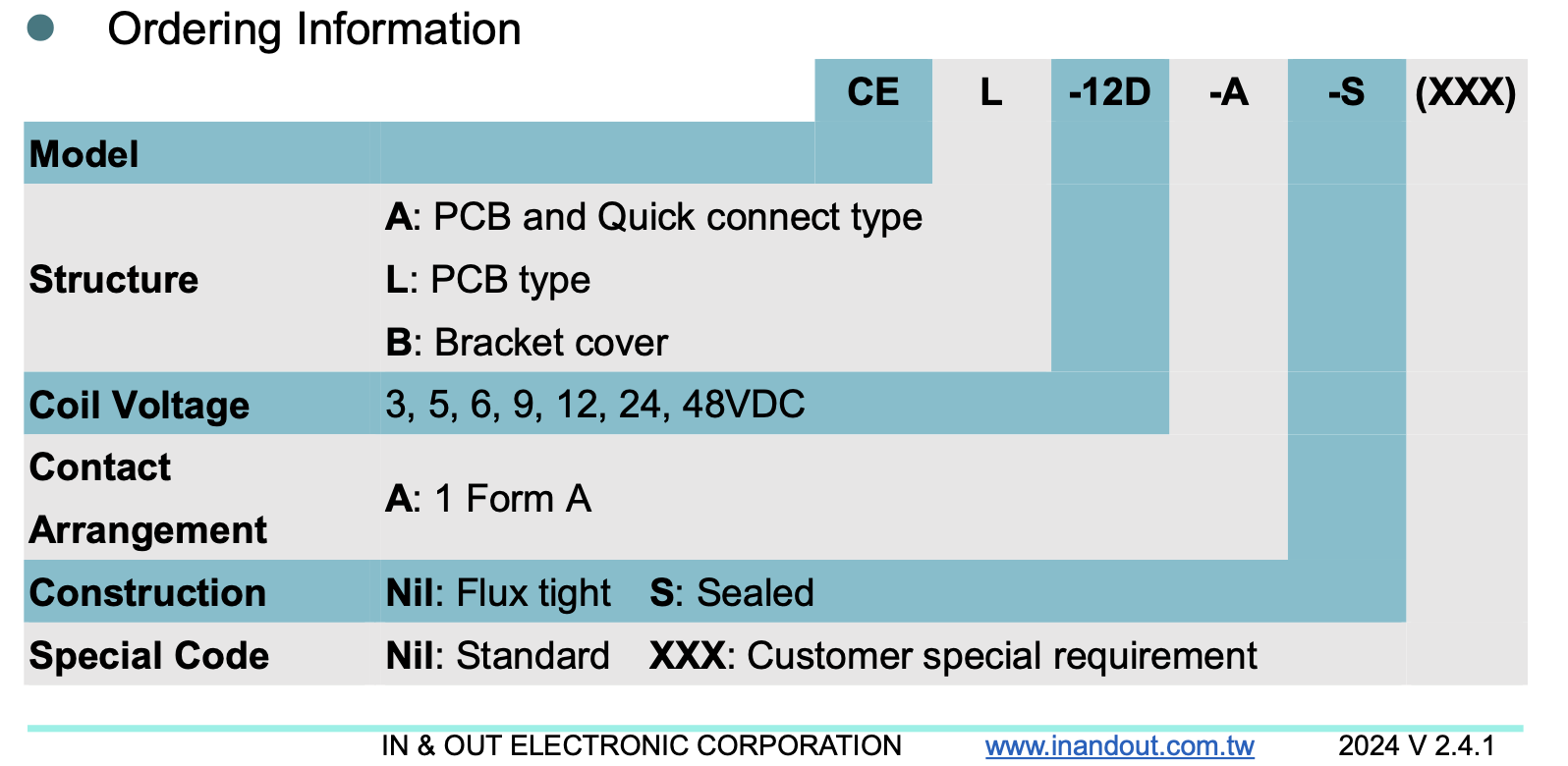

* PCB + QC: CEA

   PCB type: CEL

   With Bracket: CEB

Dimensions:

                 30.4 x 16.0 x 23.3 mm (PCB & QC)

                 30.4 x 16.0 x 29.8 mm (Bracket)

TUV / CQC / UL

ISO 9001

IATF 16949: 2016
