AUTOMOTIVE RELAY

AG

Automotive Relay

Features: 15A switching capability; 1 Form A and 1 Form C configurations; Subminiature, standard PCB layout; Plastic sealed and flux proofed types available; Environmental friendly product (RoHS compliant)

Application

Access control
Security control
Anti-theft devices
Power doors and windows
Wiper controls
Home appliances
Smart home
Thermostats
Heating/boiler controls
Industrial and office automation controls
Instrumentation, etc.

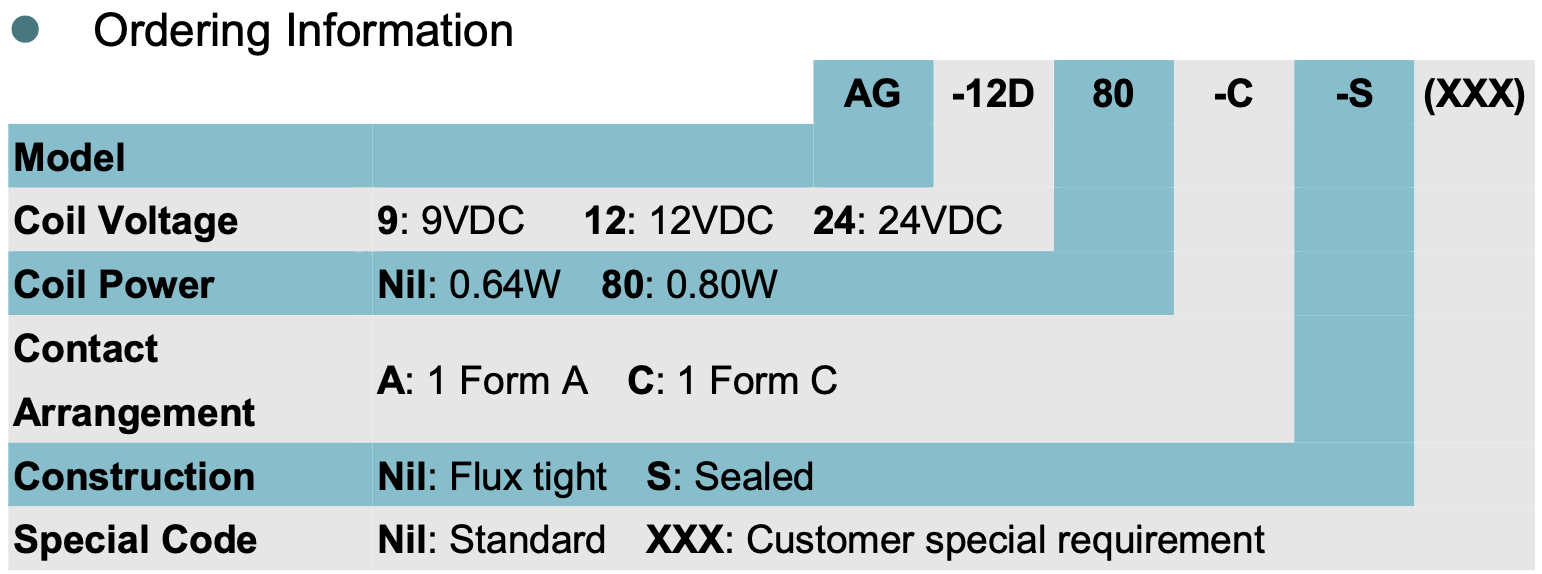

Add Inquiry (0) AG Relay Spec

Model: AG

Product Detail	Coil Voltage Form: DC relay Coil Voltage: 9/12/24VDC Contact Material: Ag Alloy Contact Arrangement: 1A, 1C Contact Rating: 15A 14VDC Coil Power Consumption: 0.64W / 0.80W Max. Switching Power: 210W Max. Switching Voltage: 14VDC Max. Switching Current: 15A Weight: Approx. 9.5g
Dimensions (mm)	19.0 × 15.5 × 15.0
