AJ

Automotive Relay

Features: 1 Form A & 1 Form C contact arrangement; Ambient temperature range: -40℃ to 125℃; 2.8mm QC terminals; Environmental friendly product (RoHS compliant)

Headlight Control
Fuel Pump Control
Horn control
A/C Compressor Clutch,etc.

Add Inquiry (0) AJ Relay Spec

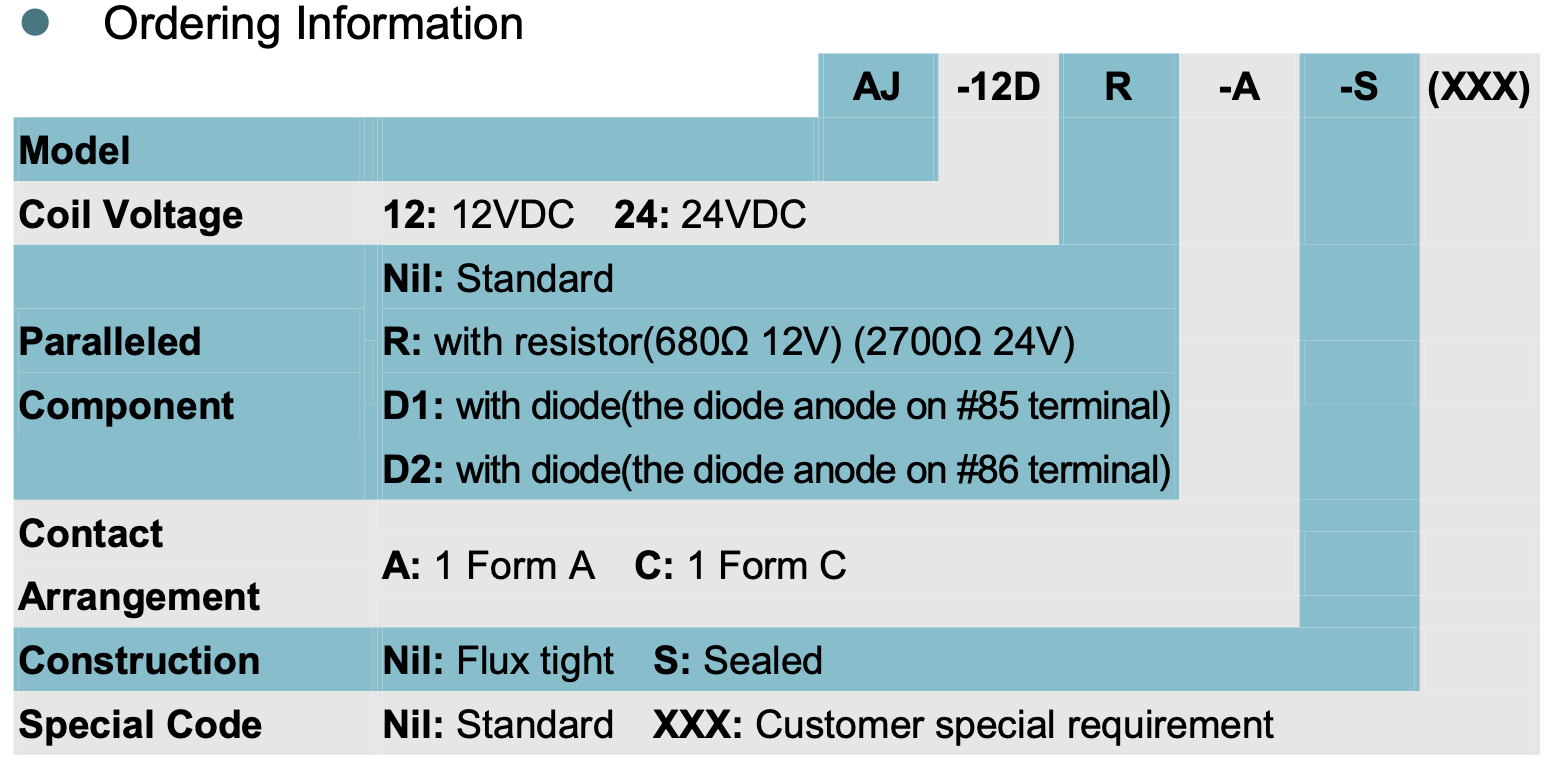

Model: AJ

Product Detail	Coil Voltage: 12VDC~24VDC Automotive Relay Contact Arrangement: 1 Form A, 1 Form C Single Contact: SPST, SPDT Max. Switching Current: 35A Contact Rating: 1A: 35A 14VDC 1C: NO: 35A 14VDC NC: 20A 14VDC Max. Switching Power: 490W Max. Switching Current: 35A Paralleled Component: Resistor & Diode available Terminal Type: QC, Plug in Weight: Approx. 19.6g
Dimensions (mm)	22.5 × 15 × 25.2
