AUTOMOTIVE RELAY

AL / ALB / ALM

Automotive Relay

Features: Up to 40A switching capability; 1 Form A & 1 Form C contact arrangement; Plastic Bracket & Metal Bracket Available; Ambient temperature range: -40℃ to 85℃; Environmental friendly product (RoHS compliant); Available for PC board mounting & direct insert mounting

Application

Rear Windows Defogger
Battery Disconnection Device
Air-Conditioning System
Power Distribution
Fog Lamp & Headlight Control
Fuel Pump Control
ABS
Traction Control system
Cooling Fan Control
Heating Control
Power Supply Management System, etc

Add Inquiry (0) AL Relay Spec

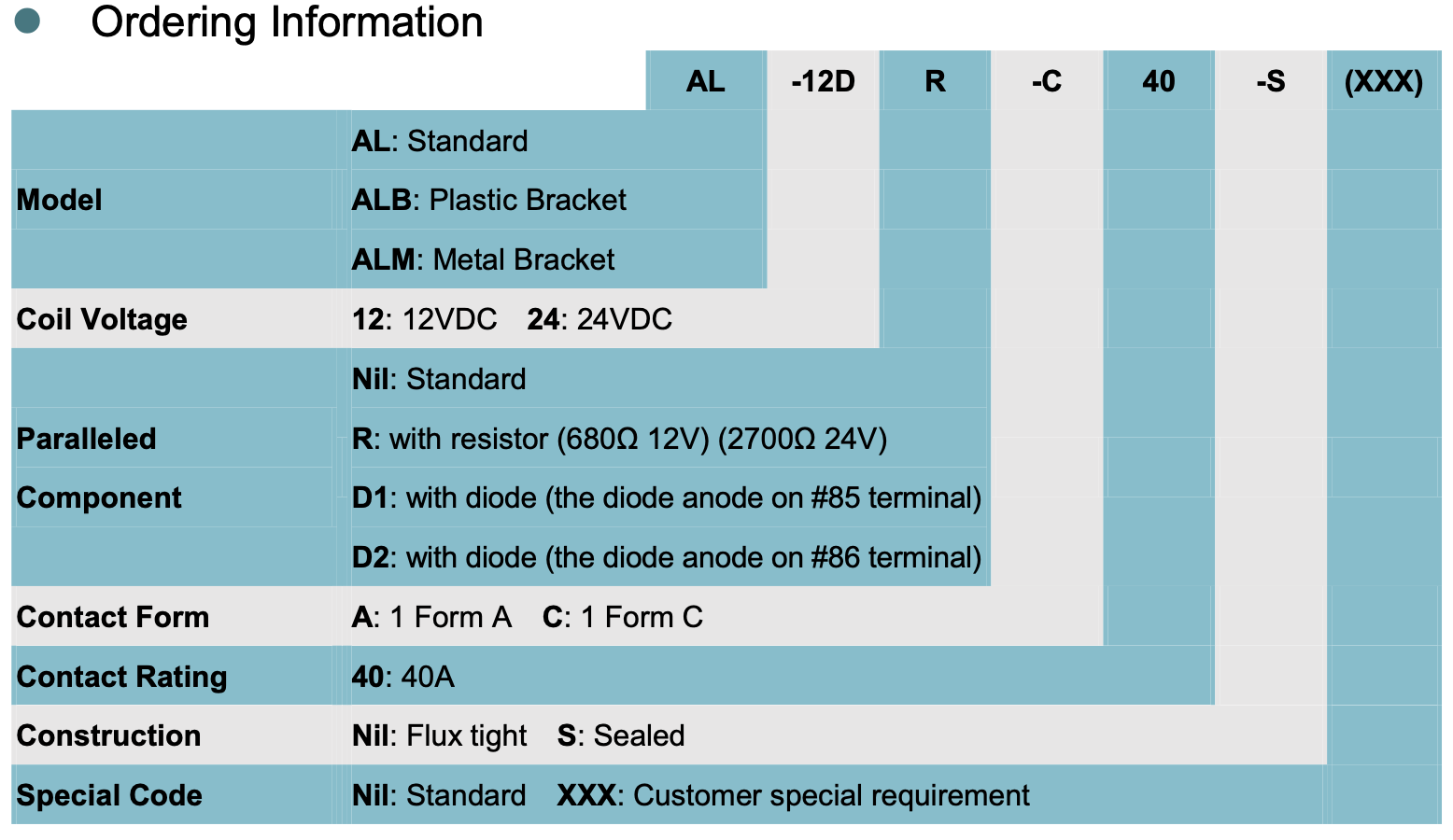

Model: AL

Product Detail

Coil Voltage: 12~24VDC

Contact Arrangement: 1 Form A, 1 Form C

Contact Rating:
1A: 40A 14VDC
1C: NO: 40A 14VDC
NC: 30A 14VDC

Max. Switching Power: 560W

Max. Switching Current: 40A

Min. Contact Load: 1A 6VDC

Coil Power Consumption: 1.6W~1.8W

Standard Type / Plastic Bracket / Metal Bracket available

Paralleled Component: with diode / with resistor

Standard flux tight / sealed type

Weight: Approx. 28g

Dimensions (mm)

27.4 × 28.4 × 25.0
