AL6 / AL6B/ AL6M / AL6P (80A)

Automotive Relay

Features: 80A switching capability; 1 Form A & 1 Form C contact arrangement; Plastic Bracket & Metal Bracket Available; Ambient temperature range: -40℃ to 125℃; Environmental friendly product (RoHS compliant); Available for PC board mounting & direct insert mounting; Dimension: 26.0 x 26.0 x 23.7 mm

Application

Rear Windows Defogger
Battery Disconnection Device
Air-Conditioning System
Fog Lamp & Headlight Control
Fuel Pump Control
ABS Control system
Cooling Fan Control
Power Management, etc

Add Inquiry (0) AL6(80A) Relay Spec

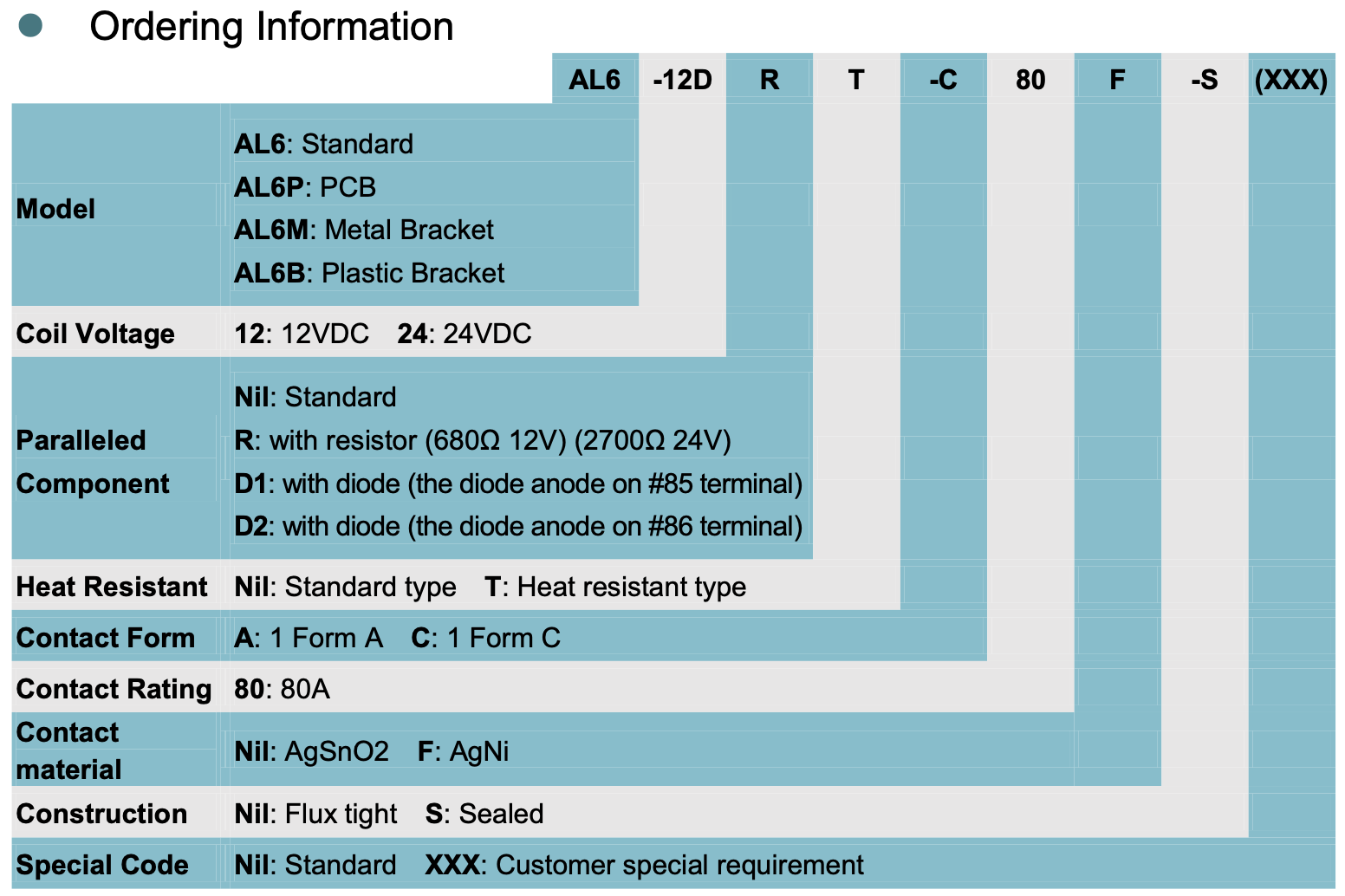

Model: AL6 / AL6B/ AL6M / AL6P (80A)

Product Detail	Coil Voltage Form: DC relay Coil Voltage: 12/24VDC Contact Material: Ag Alloy (AgSnO2 / AgNi) Contact Arrangement: 1A, 1C Contact Rating: 1A: NO: 80A 14VDC 1C: NO: 80A 14VDC / NC: 60A 14VDC Coil Power Consumption: Approx. 12VDC: 1.6W 24VDC: 1.8W Max. Switching Power: 1120W Max. Switching Current: 80A Min. Contact Load: 1A 6VDC Weight: Approx. 38g
Dimensions (mm)	26.0 × 26.0 × 23.7
