AUTOMOTIVE RELAY

ALMS

Automotive Relay

Features:  Shrouded power relay; 40A switching capability; 1 Form A & 1 Form C contact arrangement; Metal Bracket; Ambient temperature range: -40℃ to 125℃; Environmental friendly product (RoHS compliant); Direct insert mounting; Dimension: 35.2 x 35.2 x 46.0 mm

Application

Rear Windows Defogger / Battery Disconnection Device / Air-Conditioning System /
Power Distribution / Fog Lamp & Headlight Control / Fuel Pump Control / ABS /
Traction Control system / Cooling Fan Control / Heating Control / Power Supply
Management System, etc.

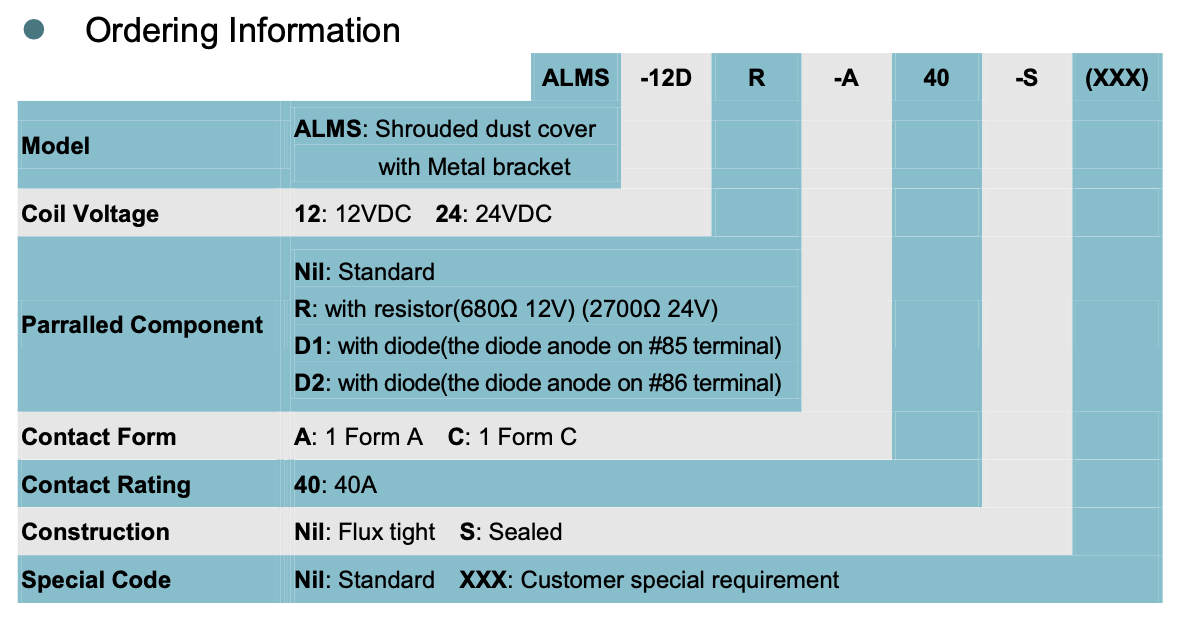

Add Inquiry (0) ALMS SPEC

Model: ALMS

Product Detail	Coil Voltage Form: DC relay Coil Voltage: 12VDC / 24VDC Contact Material: Ag Alloy Contact Arrangement: 1A, 1C Contact Rating: 1A: 40A 14VDC 1C: NO: 40A 14VDC / NC: 30A 14VDC Coil Power Consumption: 1.6W Max. Switching Power: 560W Max. Switching Current: 40A Min. Contact Load: 1A 6VDC Weight: Approx. 52.5g
Dimensions (mm)	35.2 × 35.2 × 46.0
Qualification
