AM/AMB

Automotive Relay

Features: 30A switching capability; 1 Form A contact arrangement; RoHS compliant

Application

Power windows
Compressor
Cooling fan control
Headlight control
Window and mirror defogger
Car air conditioner
Truck refrigerator
Headlight control
Defog controller
Blower, etc.

Add Inquiry (0) AM/AMB Relay Spec

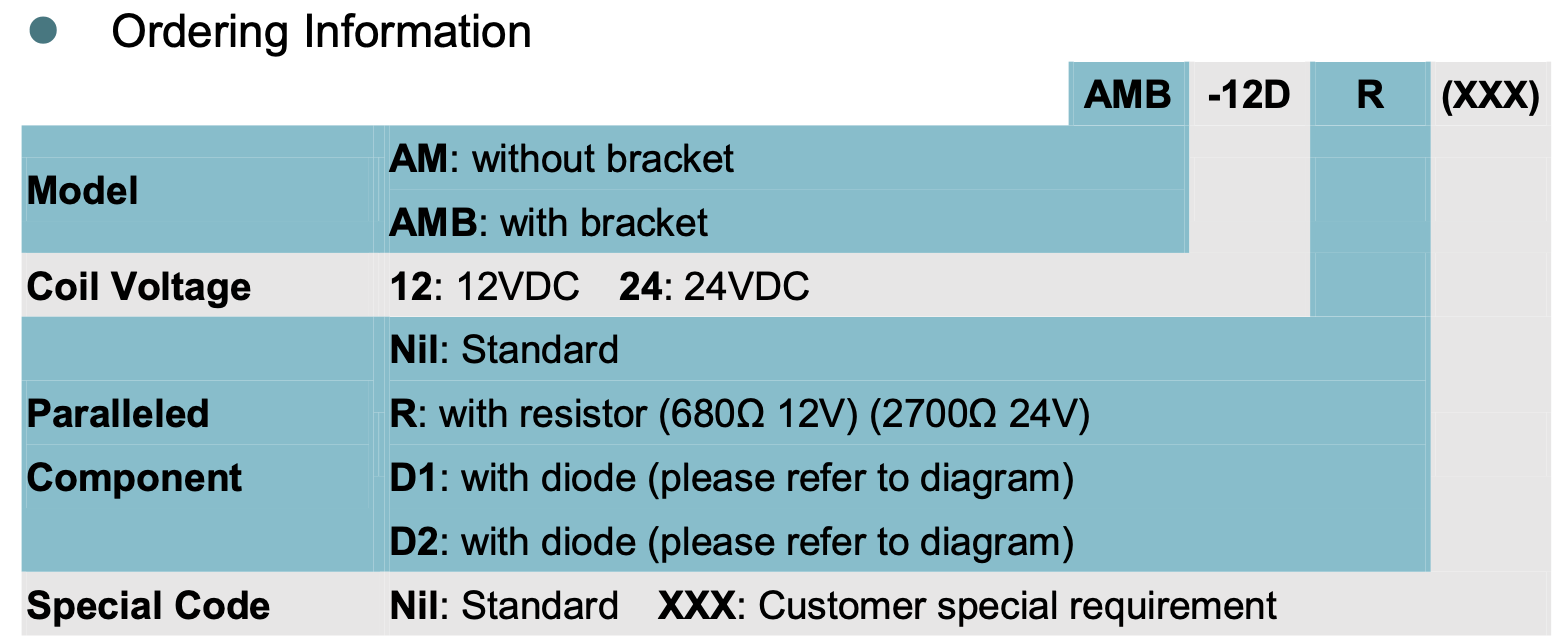

Model: AM

Product Detail	Coil Voltage Form: DC relay Coil Voltage: 12/24VDC Contact Material: Ag Alloy Contact Arrangement: 1A Contact Rating: 30A 14VDC, 15A 28VDC Coil Power Consumption: Without resistor: Approx. 1.4W With R1 resistor: Approx. 1.7W Max. Switching Power: 420W Max. Switching Voltage: 14/28VDC Max. Switching Current: 30A / 15A Weight: Approx. 32g
Dimensions (mm)	AM: 28 × 23.0 × 29.5 AMB: 28 × 23.0 × 49.5(B)
