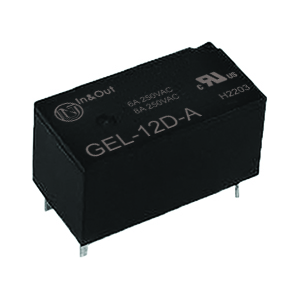

GEL

General Power Relay

Features: 8A switching capability; Creepage distance: 6mm (coil & contacts); 1 Form A and 1 Form C configurations; High sensitivity 200mW; 5KV dielectric between coil to contacts; UL insulation system: Class F available; Environmental friendly product (RoHS compliant); Dimensions: 20.0 x 10.0 x 10.6 mm

Home appliances
Intelligent home
Industrial and office automation control
Alarm control panel
Frequency converter, etc

Add Inquiry (0) GEL SPEC

Model: GEL

Product Detail

Coil Voltage Form: DC relay

Terminal Type: PCB

Coil Voltage: 3~48VDC

Contact Arrangement: 1 Form A, 1 Form C

Contact Version: Single contact

Contact Rating:
1A: 6A 250VAC / 30VDC, 8A 250VAC / 30VDC, 10A 120VAC
1C: NO: 6A 250VAC / 30VDC, 8A 250VAC / 30VDC, 10A 120VAC;
NC: 5A 250VAC / 30VDC

Max. Switching Power: 1250VA / 180W

Max. Switching Voltage: 277VAC / 30VDC

Max. Switching Current: 8A

Weight: Approx. 4.6g

Dimensions (mm)

20.0 × 10.0 × 10.6
