GENERAL POWER RELAY

GF2

General Power Relay

Features: 10A switching capability; 1 Form A and 1 Form C configurations; Subminiature, standard PCB layout; Plastic sealed and flux proofed types available; 3000VAC Dielectric strength between coil and contact; Environmental friendly product (RoHS compliant); Dimensions: 19.2 x 15.5 x 15.25 mm

Application

Smart home solution
Home Appliance
Temperature Control
Industrial Control
Medicial Equipment
Security System
Anti-Theft System
Household appliance
Dehumidification Control Inverter, etc.
Home Appliance
Office Equipment
Power Supplies, etc.

Add Inquiry (0) GF2 SPEC

Model: GF2

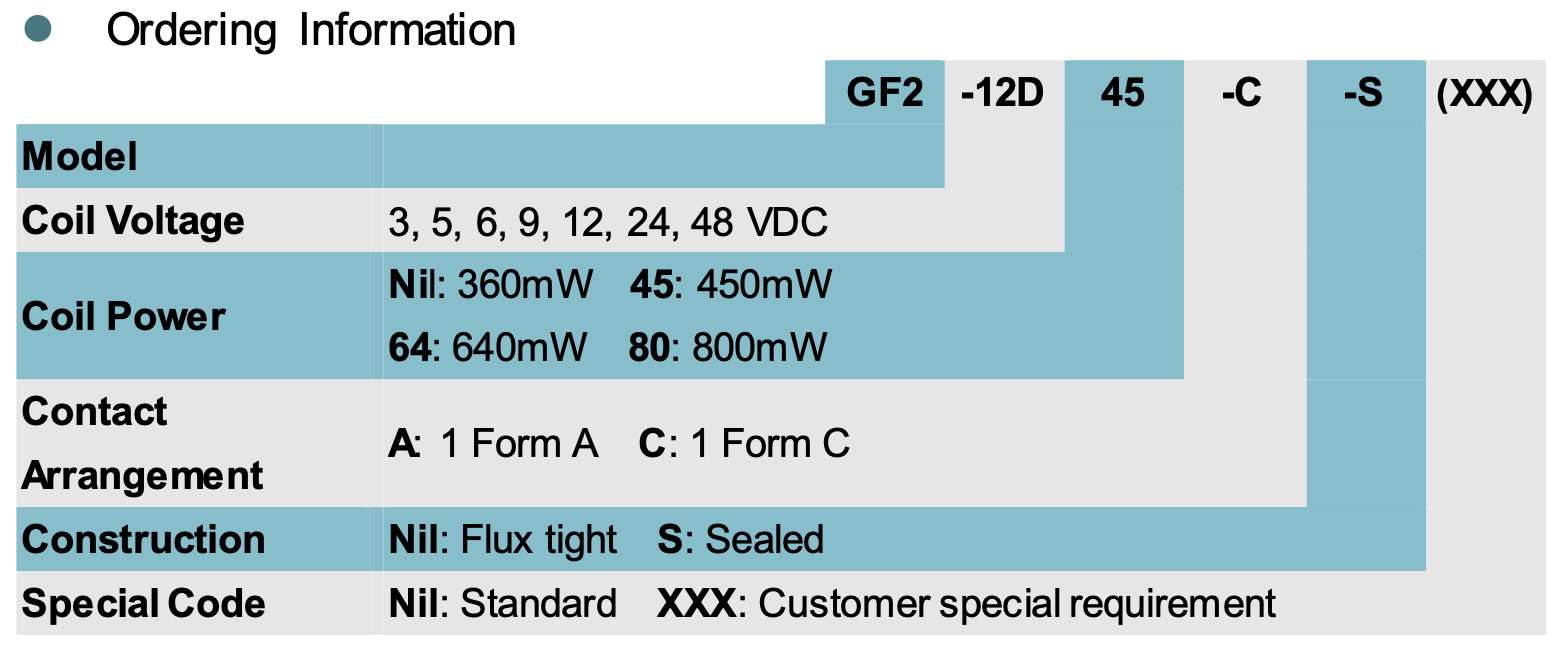

Product Detail	Coil Voltage Form: DC relay Coil Voltage: 3VDC~48VDC Coil Power: 0.36W, 0.45W, 0.64W, 0.8W Contact Arrangement: 1 Form A & 1 Form C Contact Material: Ag Alloy Contact Rating: 10A 250VAC 10A 30VDC Max. Switching Current: 10A Max. Switching Power: 2500VA Max. Switching Voltage: 250VAC Terminal Type: PCB Weight: Approx. 9.5g
Dimensions (mm)	19.2 × 15.5 × 15.25
