GENERAL POWER RELAY

GFQ

General Power Relay

Features: Quiet relay; operation noise <45dB;; 20A switching capability; 1 Form A and 1 Form C configurations; Subminiature, standard PCB layout; Plastic sealed and flux proofed types available; Environmental friendly product (RoHS compliant); Dimensions: 22.3 x 16.5 x 16 mm

Application

Suitable for quiet working environment applications.
Smart Home Solution / Home Appliance / Wiper Control / Temperature Control / Industrial Control / Security System / Anti-Theft System, etc

Add Inquiry (0) GFQ SPEC

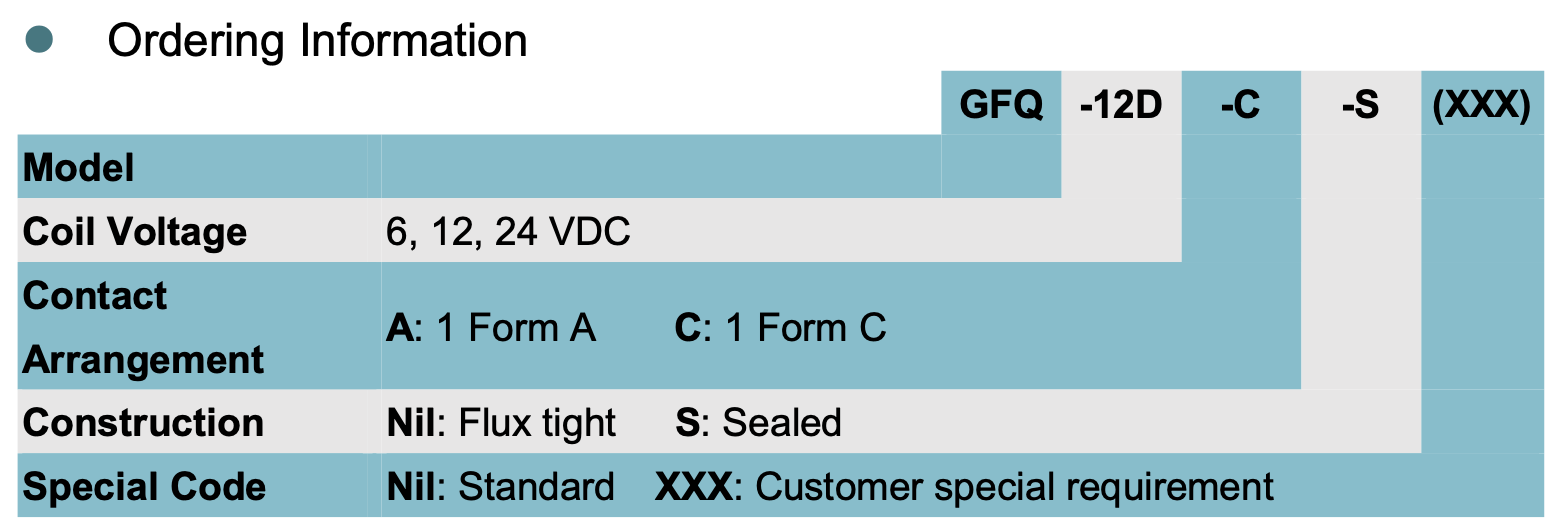

Model: GFQ

Product Detail	Coil Voltage Form: DC relay Coil Voltage: 6~24VDC Coil Power: 0.57W Contact Arrangement: 1 Form A & 1 Form C Contact Rating: 20A / 15A 14VDC Max. Switching Current: 20A Max. Switching Power: 280W Max. Switching Voltage: 14VDC Terminal Type: PCB Weight: Approx. 9.5g
Dimensions (mm)	22.3 × 16.5 × 16
