GH2

General Power Relay

Features: 20A switching capability; 1 Form A, 1 Form B and 1 Form C configurations; Standard PCB layout; Plastic sealed and flux proofed types available; UL insulation system: Class F available; Environmental friendly product (RoHS compliant); Dimensions: 20.3 x 16.5 x 20.5 mm

Smart Home Solution / Street Light Control / Home Appliance / Temperature Control / Industrial Control / Security System / Anti-Theft System, etc.

Add Inquiry (0) GH2 SPEC

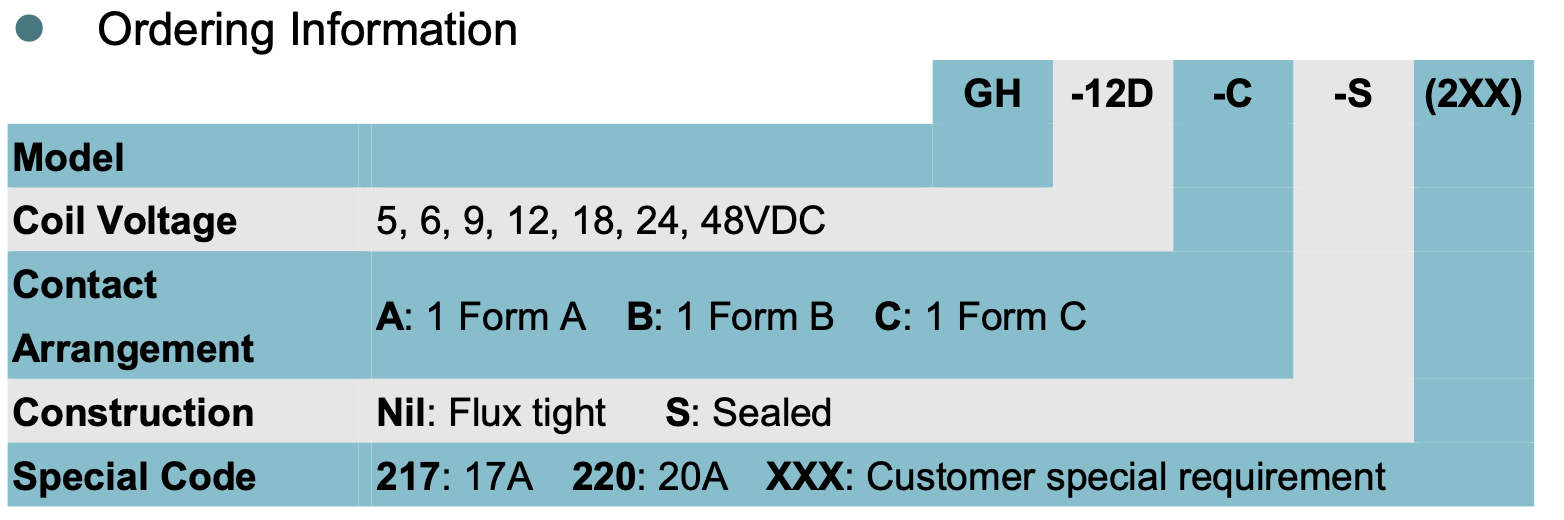

Model: GH2

Product Detail

Coil Voltage: 5~48VDC Power Relay

Coil Voltage Form: DC

Contact Arrangement: 1 Form A, 1 Form B, 1 Form C

Contact Material: Ag Alloy

Single Contact

Contact Rating:
Resistive Load:
  20A 125VAC
  17A 277VAC
  15A 250VAC
  TV-8
Motor Load:
  1HP 250VAC

Max. Switching Power: 5540VA

Max. Switching Voltage: 277VAC

Max. Switching Current: 20A

Coil Power Consumption: 0.36W

Terminal Type: PCB

Weight: Approx. 12g

Dimensions (mm)

20.3 × 16.5 × 20.5
