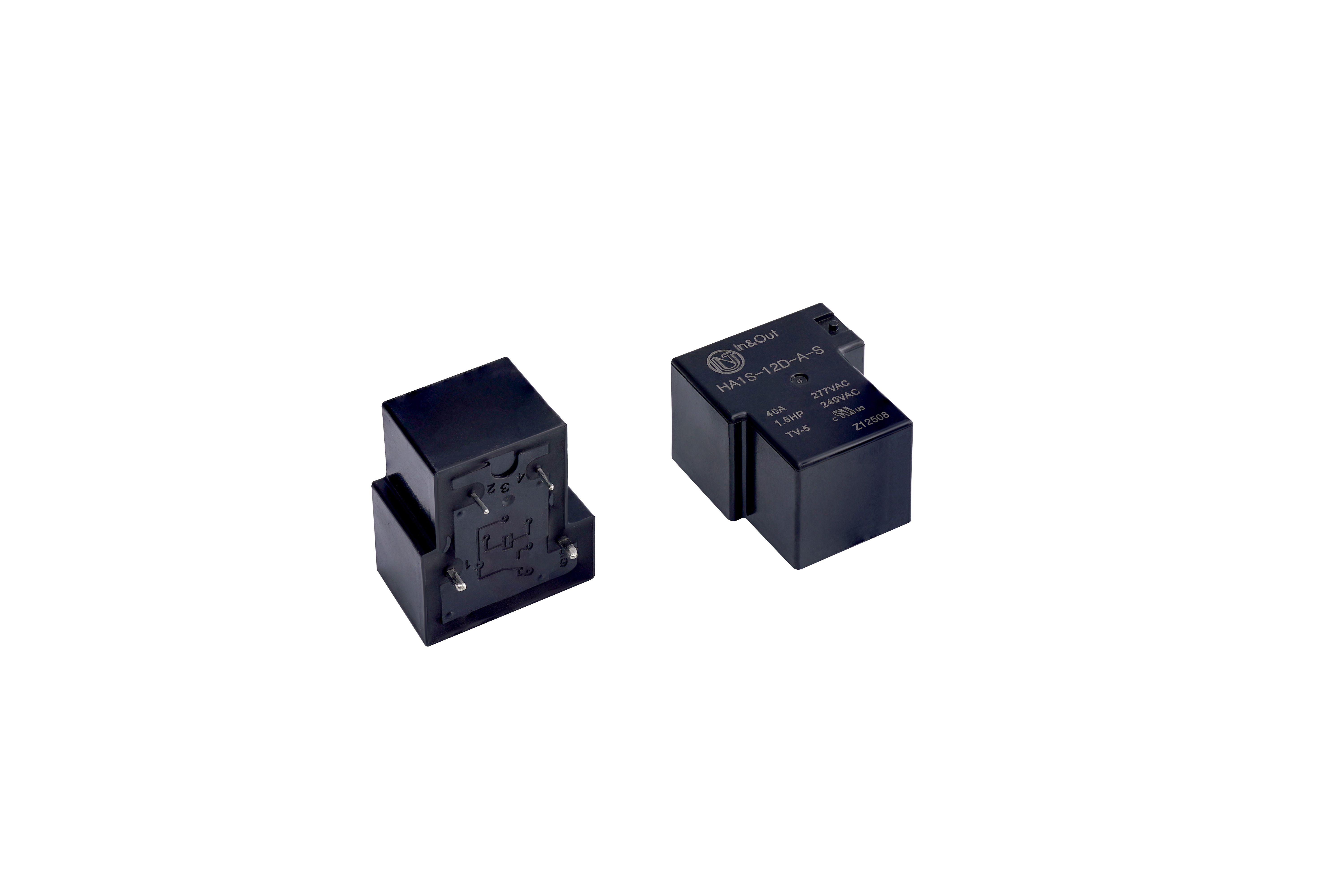

HA1 / HA1S

High Power Relay

Features: High current power relay; Air conditioner relay; 40A switching capability; Compact structure; PCB coil terminals, ideal for heavyduty load; 1 Form A, 1 Form B and 1 Form C configurations; Maximum 4kV dielectric strength (between coil and contacts); Sealed and flux tight type available; Environmental friendly product (RoHS compliant)

Air conditioner
Air compressor
Home appliances
Heating controller
Automotive application
Refrigerator
Fan
Cooling Fan Control, etc.

Add Inquiry (0) HA1/HA1S Relay Spec V2.0.1

Model: HA1

Product Detail

Coil Voltage Form: DC relay

Coil Voltage: 5~110VDC

Contact Material: Ag Alloy

Contact Arrangement: 1A, 1C, 1C

Contact Current: 30A / 40A

Contact Rating:
30A: 30A / 20A 240VAC / 277VAC / 30VDC
1/2HP / 1HP 240VAC TV-5
40A: 40A 240VAC / 277VAC / 30VDC
2HP / 1.5HP 240VAC TV-5 TV-15

Coil Power Consumption: 0.9W

Max. Switching Power: 13850VA / 1500W

Max. Switching Voltage: 277VAC / 30VDC

Max. Switching Current: 40A

Weight: Approx. 27g

Dimensions (mm)

32 × 27.2 × 20
