SA / SAS

Industrial Relay

Features: Industrial control relay; Miniature power relay; 5A switching capability; 3kV dielectric strength (between coil and contacts); Slim size (width 5mm, height 12.5mm); High sensitive: Min. 120Mw; Sockets available; UL insulation system: Class F available; Environmental friendly product (RoHS compliant)

Automation Control
Industrial Control

Smart Home Application
Home Appliance
Temperature Control
Security System
Anti-Theft System
Meter

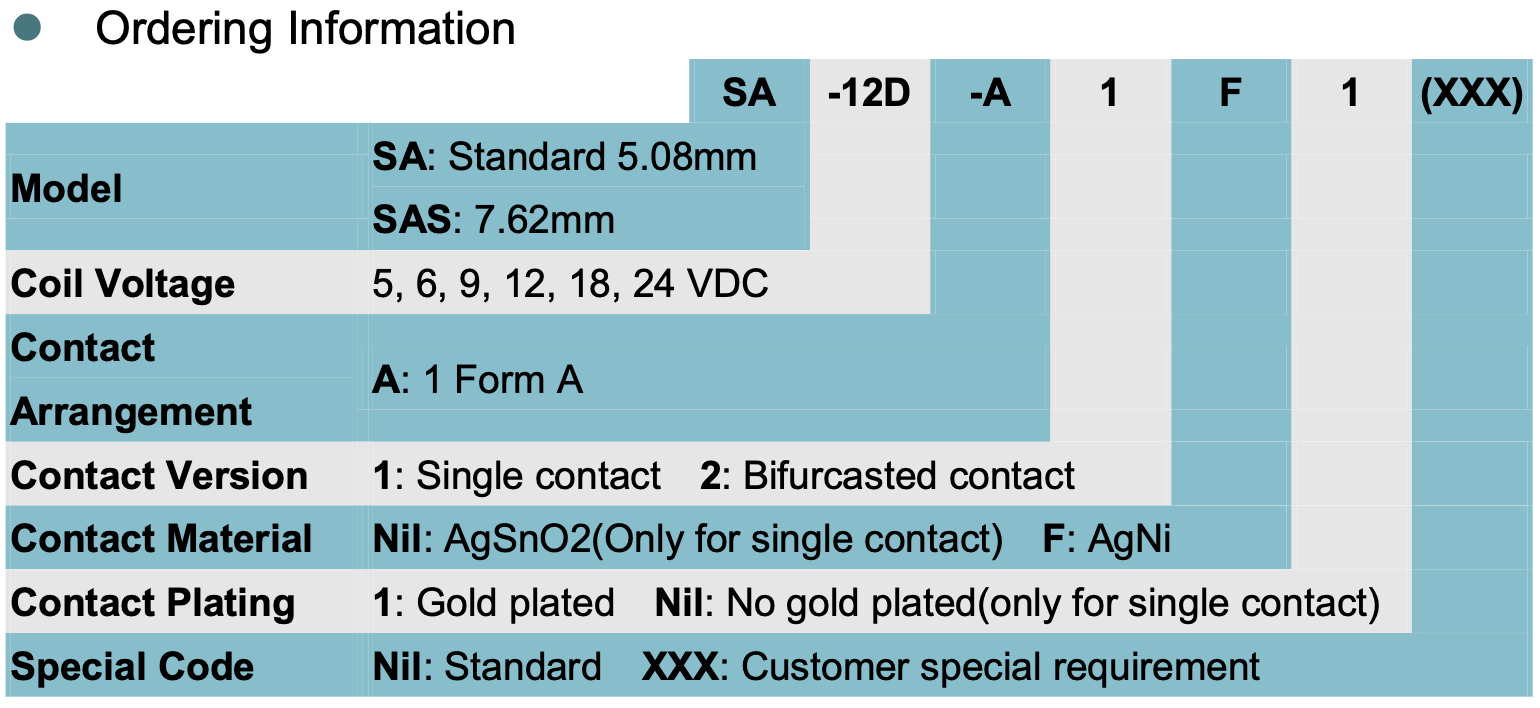

Add Inquiry (0) SA Relay Spec

Model: SA

Product Detail	Coil Voltage Form: DC relay Coil Voltage: 5~24VDC Contact Material: Ag Alloy Contact Arrangement: 1A Contact Rating: 5A 250VAC 5A 30VDC Coil Power Consumption: 5~18VDC: 0.12W 24VDC: 0.18W Max. Switching Power: 1250VA / 150W Max. Switching Voltage: 250VAC / 30VDC Max. Switching Current: 5A Weight: Approx. 3g
Dimensions (mm)	20.0 × 5.0 × 12.5
