SB / SBS

Industrial Relay

Features: Slim size (width 5mm); 6A Switching capability; High breakdowm voltage 4kV (between coil and contacts); Surge voltage up to 6kV (between coil and contacts); High sensitive: Approx.170mW; Sockets available; 1 Form A and 1 Form C configurations; UL insulation system: Class F available; Environmental friendly product (RoHS compliant)

Smart Home Application
Home Appliance
Temperature Control
Security System
Anti-Theft System
Automation Control
Industrial Control
Meter, etc.

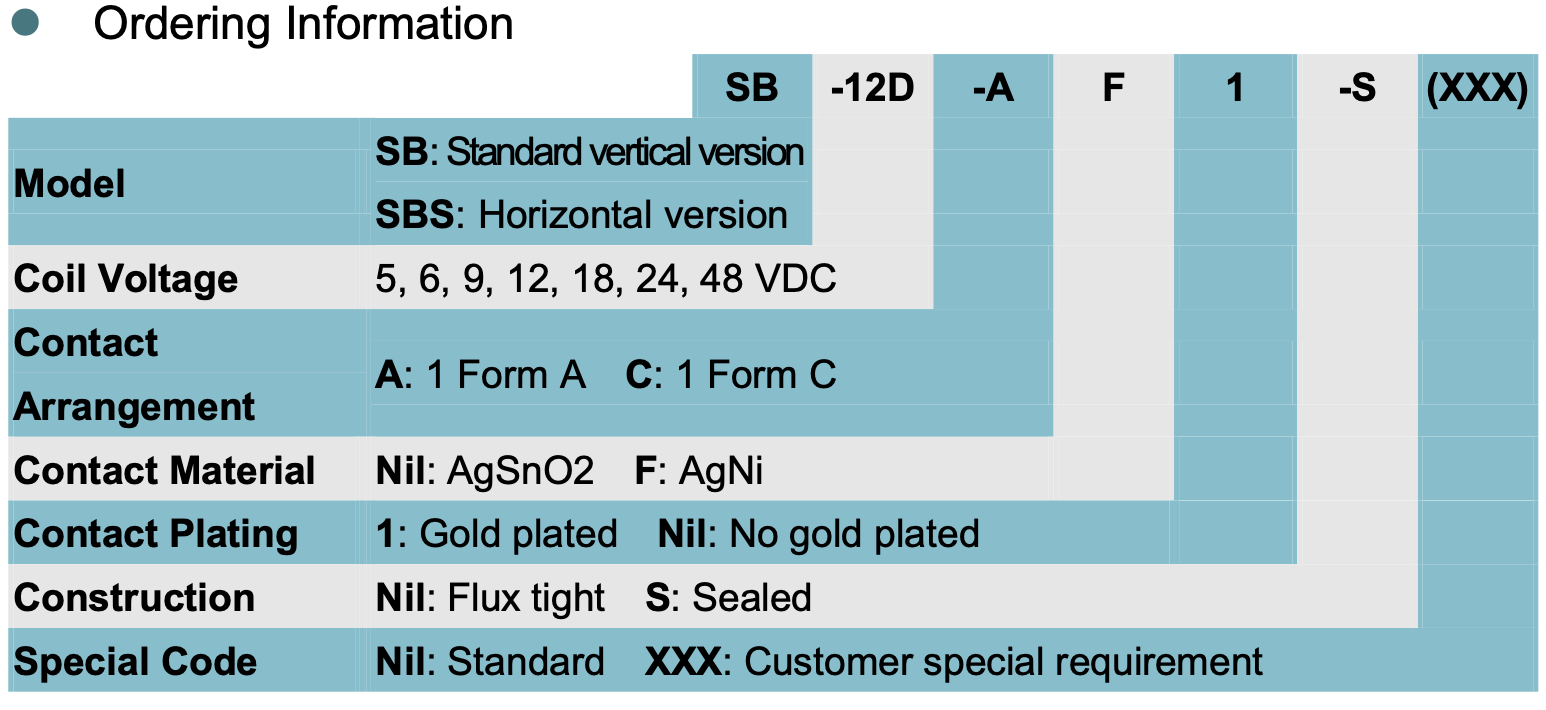

Add Inquiry (0) SB / SBS Relay Spec V2.0.0

Model: SB

Product Detail	Coil Voltage Form: DC relay Coil Voltage: 5~48VDC Contact Material: Ag Alloy Contact Arrangement: 1A, 1C Contact Rating: 6A 250VAC 6A 30VDC Coil Power Consumption: 5~24VDC: 0.17W 48VDC: 0.21W Max. Switching Power: 1500VA / 180W Max. Switching Voltage: 250VAC / 30VDC Max. Switching Current: 6A Weight: Approx. 5g
Dimensions (mm)	28.0 × 5.0 × 15.0
