LB

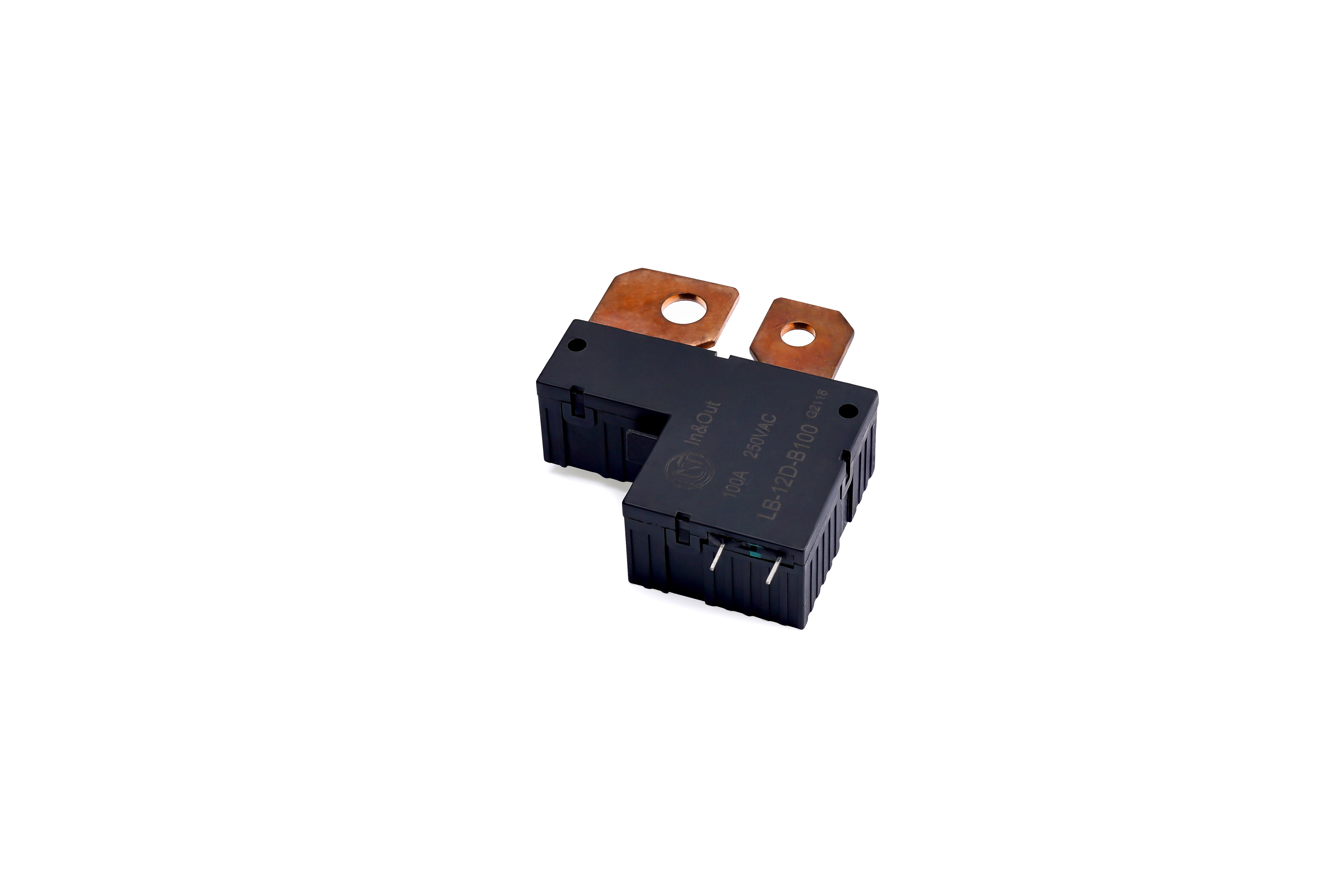

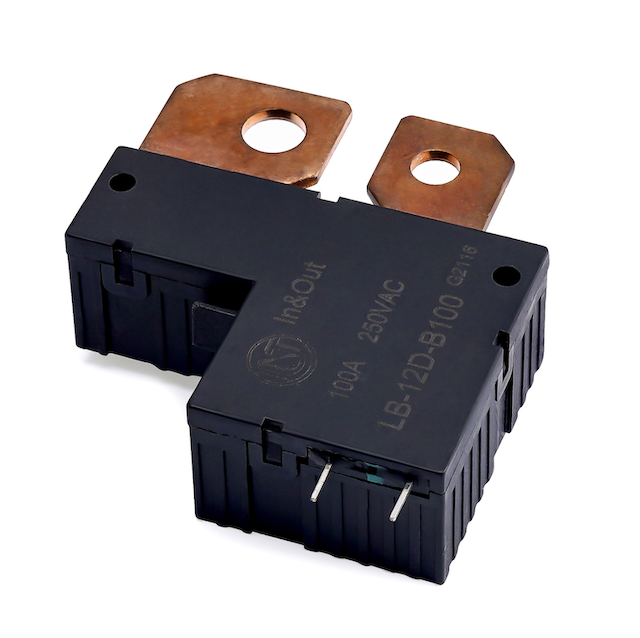

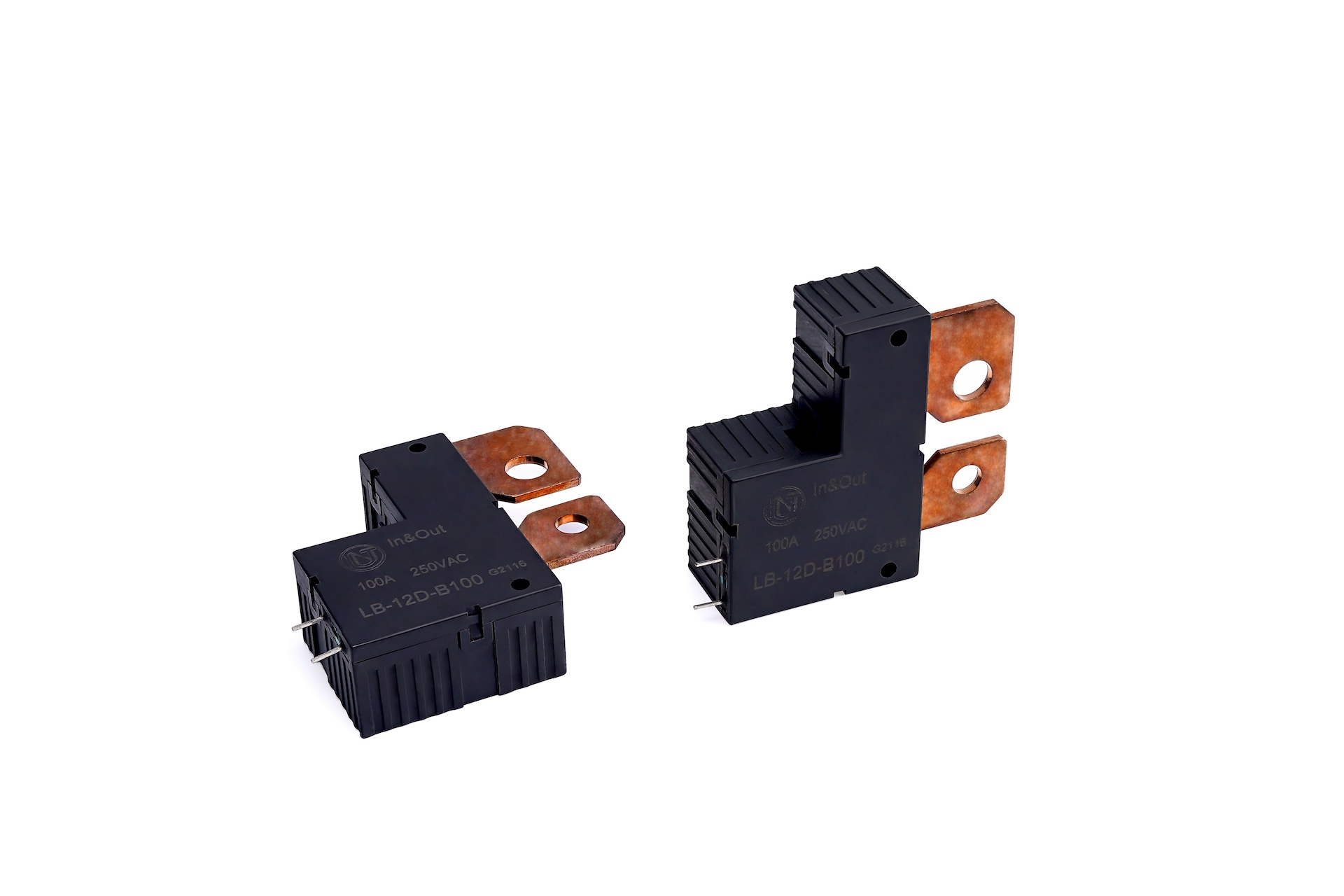

Latching Relay

Features: 100A Contact switching capability latching relay; PCB mounting, easy installation; Multiple ways of pin installation upon request; Environmental friendly product RoHS compliant; Dimensions: 58.0 x 40.0 x 20.8 mm

Smart Home Application / Electric Meter / Mechanical Electrical Equipment /
Automatic Control System, etc.

Add Inquiry (0) LB SPEC

Model: LB

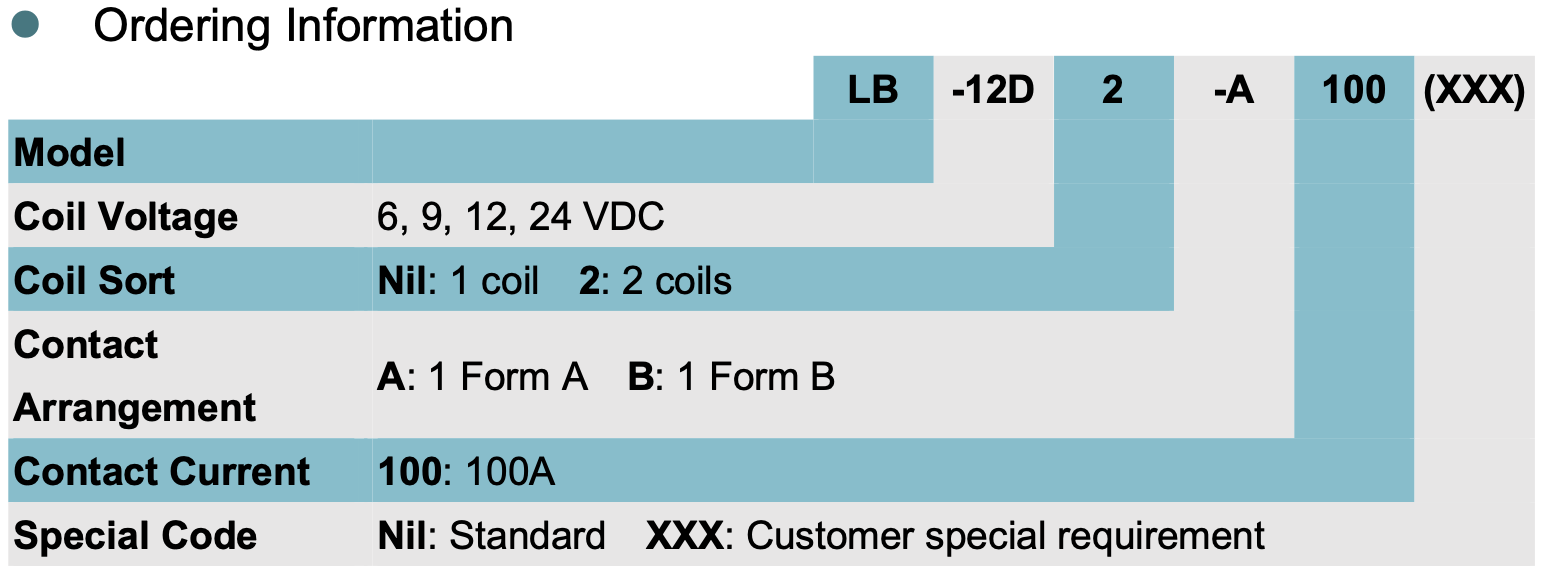

Product Detail	Coil Voltage Form: DC relay Coil Voltage: 6/9/12/24VDC Contact Material: Ag Alloy Contact Arrangement: 1A, 1B Contact Rating: 100A 250VAC Coil Sort: 1 coil / 2 coils Coil Power Consumption: 1 coil: 2.25W 2 coils: 4.5W Max. Switching Power: 25000VA Max. Switching Voltage: 250VAC Max. Switching Current: 100A Weight: Approx. 95g
Dimensions (mm)	58.0 × 40.0 × 20.8
