- PMA216D

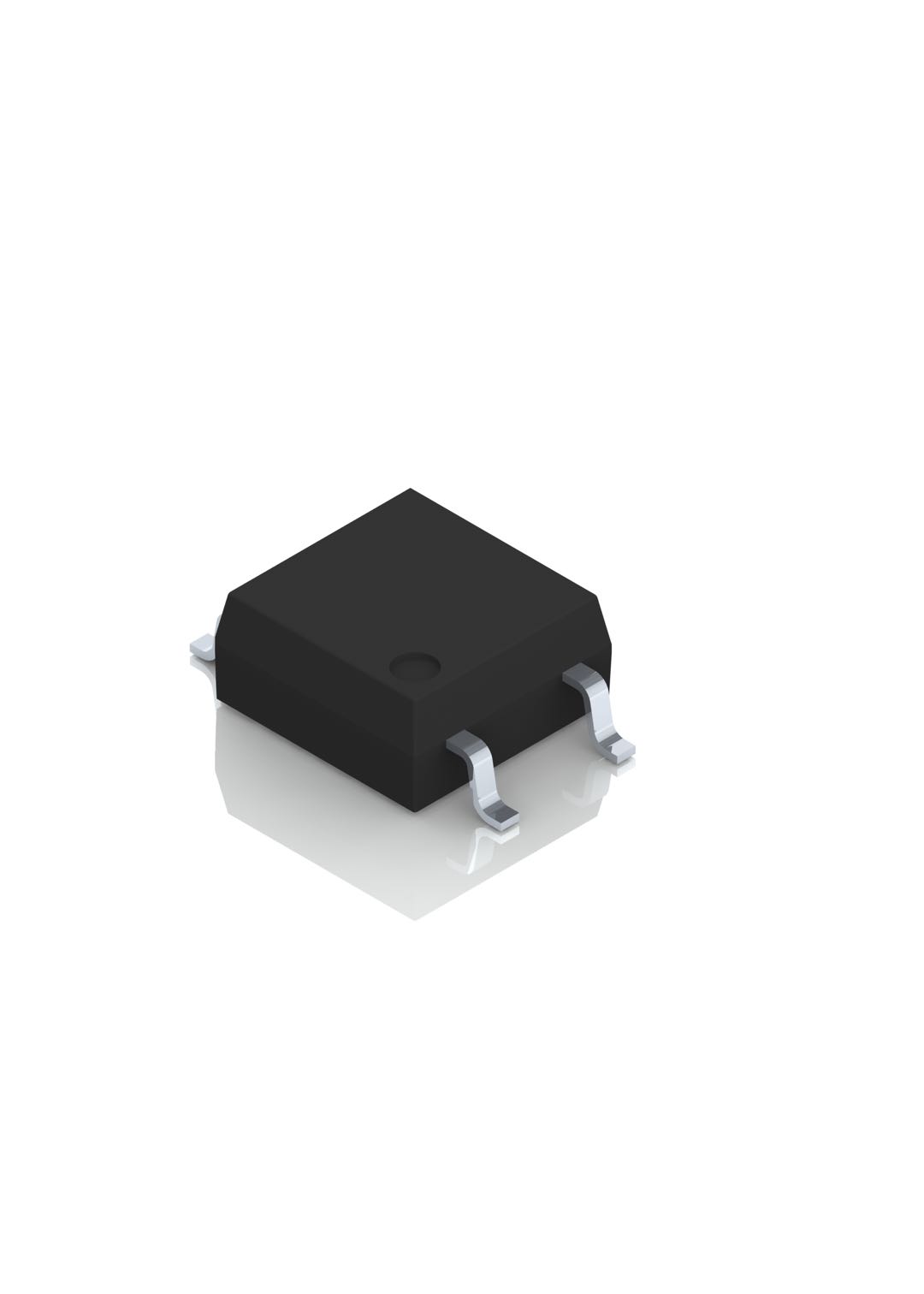

SOP 4pin
PMA216D
SOP 4pin- Features
- SOP package 4 Pin type in miniature design
- High reliability
- Arc-Free with no snubbing circuits
- 1500Vrms Input / Output isolation
- Tape & Reel version available
- Low driver power requirements (TTL/CMOS Compatible)
- 4.4 * 4.3 * 2.0
Application
• Telecommunications (PC, Electronic notepad)• Measuring and Testing equipment
• Industrial control
• Security equipments
• High speed inspection machine
• Medicial equipments
• Automotive equipment
Electrical Specifications PMA216D
| Parameter | Value | Notes |
|---|---|---|
| Package | SOP4 | PMA216D is a miniature 1-Form A solid state relay in a 4 pin SOP package
that employs optically coupled MOSFET technology to provide 1500V of input
to output isolation. The optically coupled input is controlled by a highly efficient
GaAlAs infrared LED and MOS FETs on the output side. The optically coupled input is driven by a high-efficiency GaAlAs infrared LED and MOSFETs on the output side. |
| Load Type | DC | |
| Load Voltage (V) | 20 | |
| Load Current (A) | 5.0 | |
| Contact Form | 1A | |
| LED Forward Voltage VF (V, max) | 1.4 | |
| LED Operating Current Ifon (mA, max) | 2.0 | |
| On-State Resistance RON (Ω, typ.) | 0.5 | |
| Off-State Leakage Current Ileak (μA, max) | 1.0 | |
| Turn-On Time ton (ms) | 1.5 | |
| Turn-Off Time toff (ms) | 0.1 |
