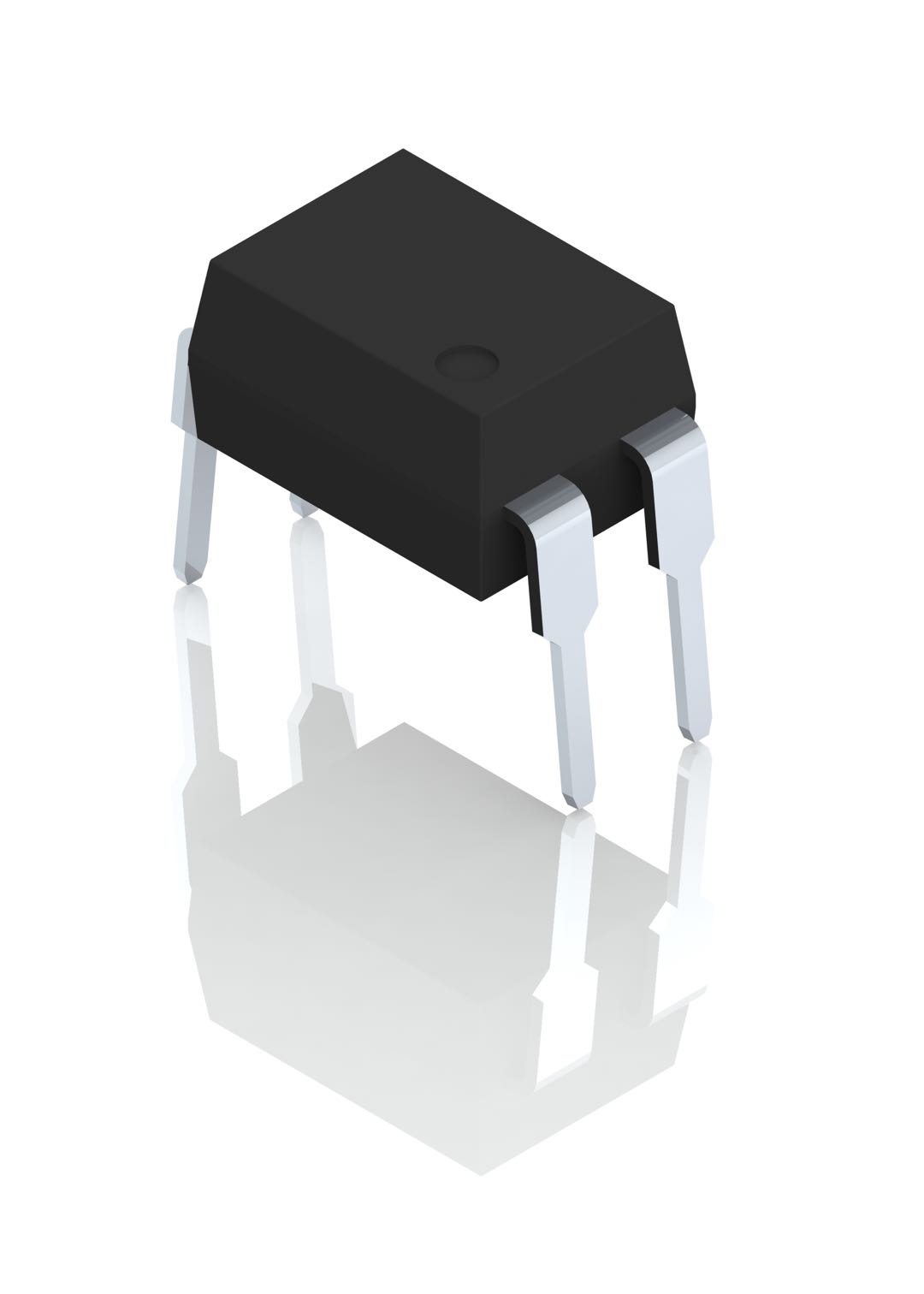

DIP 4pin
PMA410
DIP 4pin- Features
- DIP Package in miniature design
- Low driver power requirements
- (TTL / CMOS compatible)
- High reliability
- Arc-Free with no snubbing circuits
- 3750Vrms&5000Vrms input / output isolation
- Tape & Reel version available
- 6.4 * 4.7 * 3.4 mm
Application
• Telecommunications (PC, Electronic notepad)• Measuring and Testing equipment
• Industrial control
• Security equipments
• High speed inspection machine
• Medicial equipments
Electrical Specifications PMA410
| Parameter | Value | Notes |
|---|---|---|
| Package | DIP4 | PMA410 is a 1-Form A solid state relay in a 4 pin DIP package that employs optically coupled MOSFET technology to provide 3750V / 5000V of input to output isolation. The optically coupled input is controlled by a highly efficient GaAlAs infrared LED and MOS FETs on the output side. |
| Load Type | AC / DC | |
| Load Voltage (V) | 400 | |
| Load Current (A) | 0.13 | |
| Contact Form | 1A | |
| LED Forward Voltage VF (V, max) | 1.4 | |
| LED Operating Current Ifon (mA, max) | 3.0 | |
| On-State Resistance RON (Ω, typ.) | 30 | |
| Off-State Leakage Current Ileak (μA, max) | 1.0 | |
| Turn-On Time ton (ms) | 1.0 | |
| Turn-Off Time toff (ms) | 0.5 |
