DIP 4pin

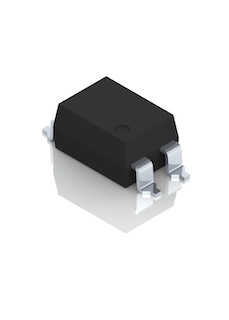

PMA637
SMD 4pin- Features
- SMD package 4 Pin type in miniature design
- High reliability
- Arc-Free with no snubbing circuits
- 3750Vrms / 5000Vrms Input / Output isolation
- Tape & Reel version available
- Low driver power requirements (TTL/CMOS Compatible)
- 6.4 * 4.7 * 3.4 mm
Application
• Telecommunications (PC, Electronic notepad)• Measuring and Testing equipment
• Industrial control
• Security equipments
• High speed inspection machine
• Medicial equipments
Electrical Specifications PMA637
| Parameter | Value | Notes |
|---|---|---|
| Package | SMD4 | The PMA637 is a 1-Form A solid state relay in a 4 pin SMD package that employs optically coupled MOSFET technology to provide 3750V / 5000V of input to output isolation. The optically coupled input is controlled by a highly efficient GaAlAs infrared LED and MOS FETs on the output side. |
| Load Type | AC / DC | |
| Load Voltage (V) | 60 | |
| Load Current (A) | 3.0 | |
| Contact Form | 1A | |
| LED Forward Voltage VF (V, max) | 1.5 | |
| LED Operating Current Ifon (mA, max) | 5.0 | |
| On-State Resistance RON (Ω, typ.) | 0.1 | |
| Off-State Leakage Current Ileak (μA, max) | 1.0 | |
| Turn-On Time ton (ms) | 3.0 | |
| Turn-Off Time toff (ms) | 0.3 |
