- PMA815
DIP 6pin
PMA815

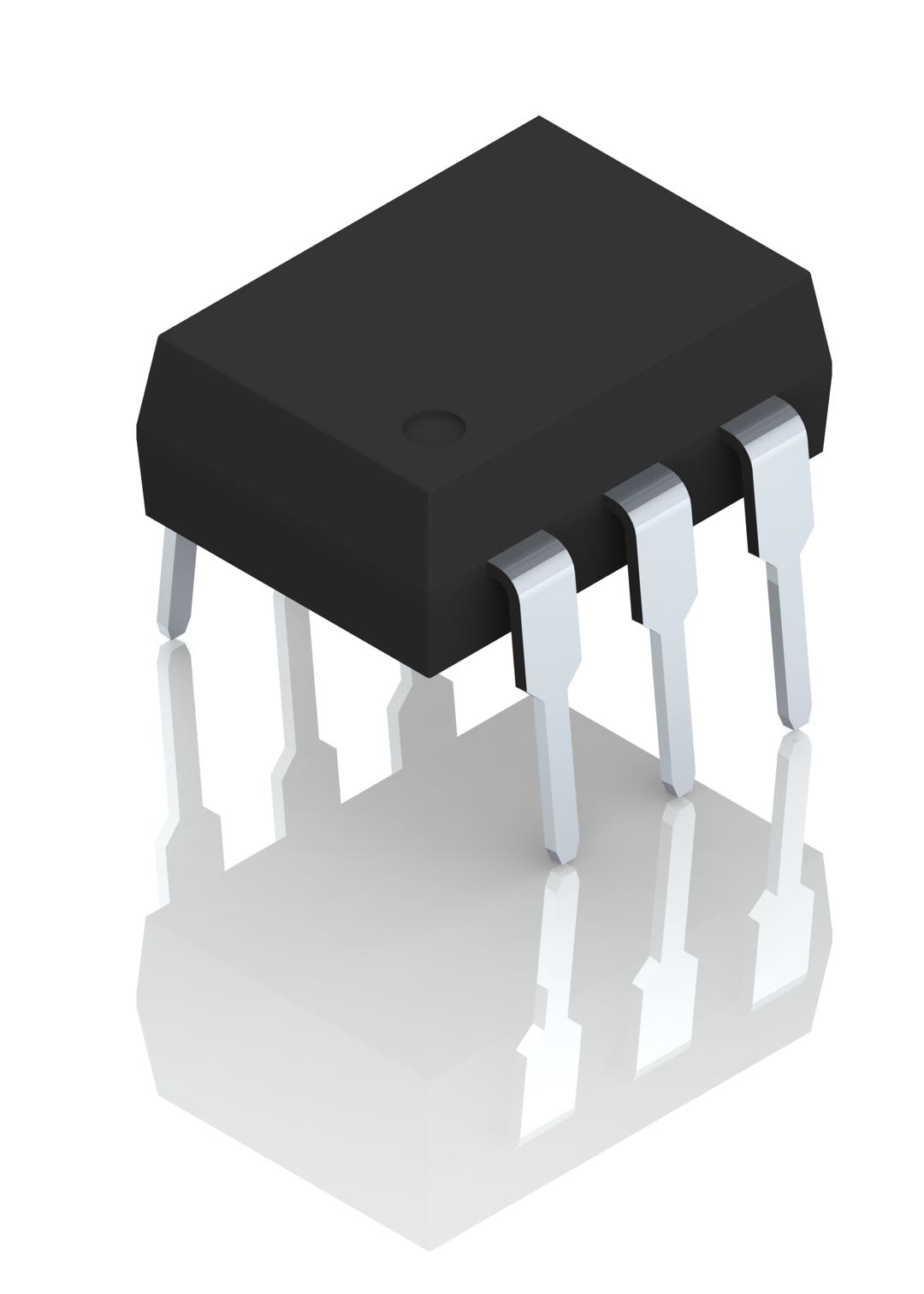

DIP 6pin- Features
- DIP package 6 Pin type in miniature design
- No moving parts
- High reliability
- Arc-Free with no snubbing circuits
- 3750Vrms Input / Output isolation
- Low driver power requirements (TTL/CMOS Compatible)
- 6.4 * 8.8 * 3.4 mm
Application
• Telecommunications (PC, Electronic notepad)• Measuring and Testing equipment
• Industrial control
• Security equipments
• High speed inspection machine
• Medicial equipments
Electrical Specifications PMA815
| Parameter | Value | Notes |
|---|---|---|
| Package | DIP6 | PMA815 is a 1-Form A solid state relay in a 6 pin DIP package that employs optically coupled MOSFET technology to provide 3750V of input to output isolation. The optically coupled input is controlled by a highly efficient GaAlAs infrared LED and MOS FETs on the output side. |
| Load Type | AC / DC | |
| Load Voltage (V) | 60 | |
| Load Current (A) | 0.4 | |
| Contact Form | 1A | |
| LED Forward Voltage VF (V, max) | 1.4 | |
| LED Operating Current Ifon (mA, max) | 5.0 | |
| On-State Resistance RON (Ω, typ.) | 1.4 | |
| Off-State Leakage Current Ileak (μA, max) | 1.0 | |
| Turn-On Time ton (ms) | 0.8 | |
| Turn-Off Time toff (ms) | 0.5 |
