- PHOTO DMOS RELAY
- DIP 6pin
- PMA826
DIP 6pin
PMA826
DIP 6pin- Features
- DIP package 6 Pin type in miniature design
- Low driver power requirements (TTL/CMOS Compatible)
- No moving parts
- High reliability
- Arc-Free with no snubbing circuits
- 3750/5000Vrms Input/Output isolation
- 6.4 * 8.8 * 3.4 mm
Application
• Telecommunications (PC, Electronic notepad)• Measuring and Testing equipment
• Industrial control
• Security equipments
• High speed inspection machine
• Medicial equipments
Electrical Specifications PMA826
| Parameter | Value | Notes |
|---|---|---|

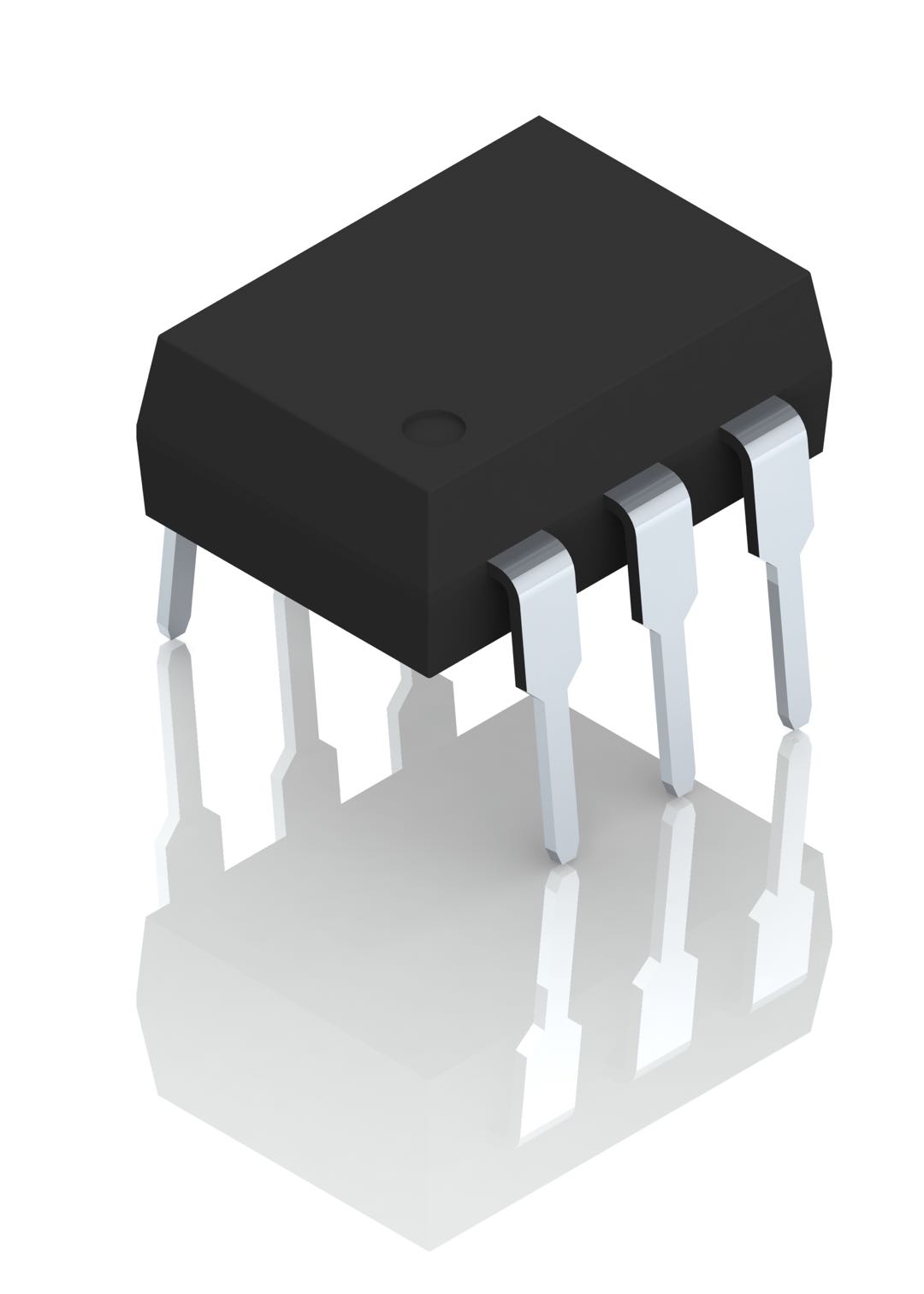

| Package | DIP6 | PMA826 is a 1-Form A solid state relay in a 6 pin DIP package that employs optically coupled MOSFET technology to provide 3750V / 5000V of input to output isolation. The optically coupled input is controlled by a highly efficient GaAlAs infrared LED and MOS FETs on the output side. Size: 6.4 × 8.8 × 3.4 mm |
| Load Type | AC / DC | |
| Load Voltage (V) | 100 | |
| Load Current (A) | A: (AC/DC) 4.5A B: (DC) 5.0A C: (DC) 6.0A |
|
| Contact Form | 1A | |
| LED Forward Voltage VF (V, max) | 1.5 | |
| LED Operating Current Ifon (mA, max) | 5.0 | |
| On-State Resistance RON (Ω, typ.) | 0.05 | |
| Off-State Leakage Current Ileak (μA, max) | 1.0 | |
| Turn-On Time ton (ms) | 2.5 | |
| Turn-Off Time toff (ms) | 0.1 |
