- PHOTO DMOS RELAY
- SMD 6pin
- PMA936
SMD 6pin
PMA936

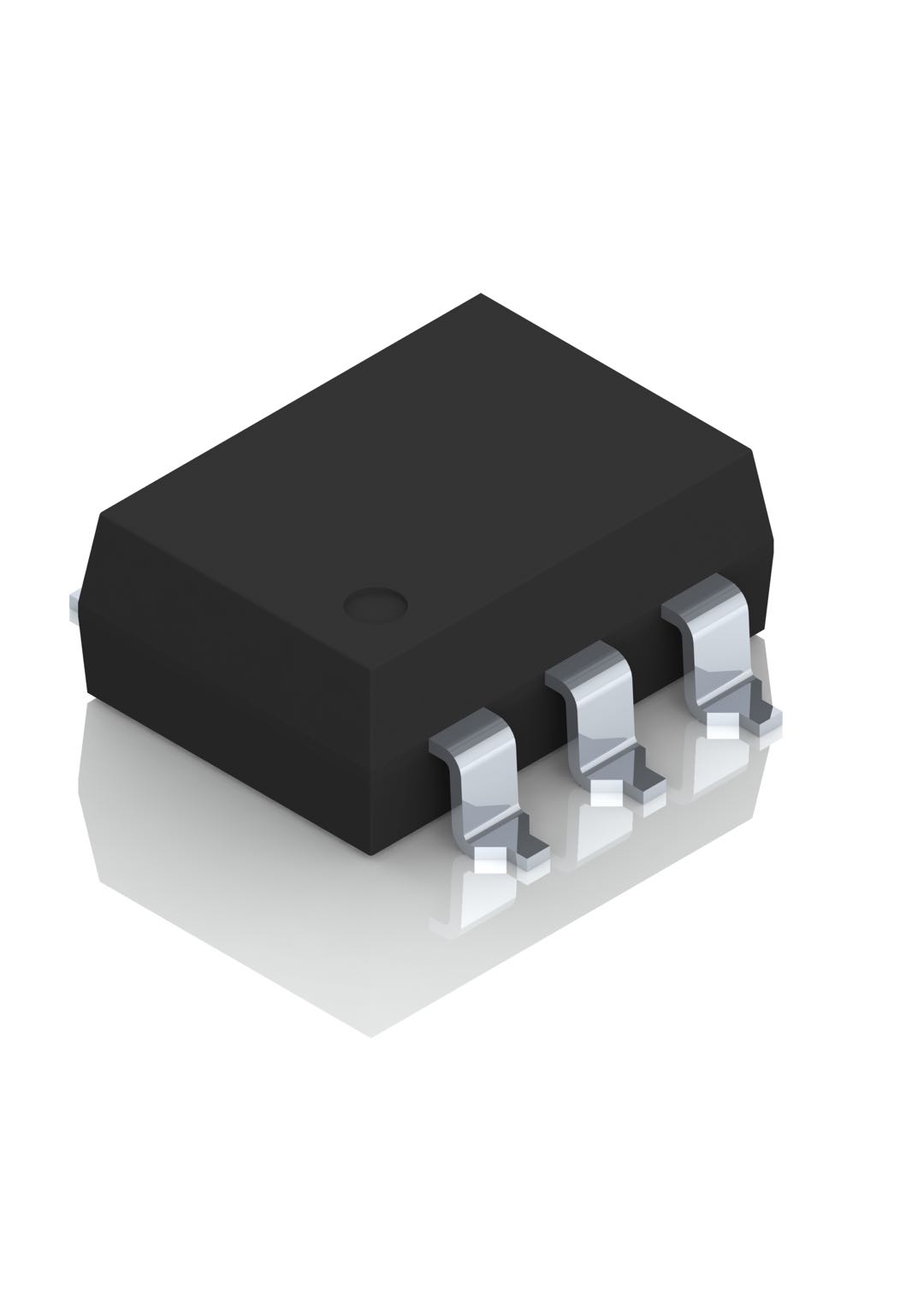

SMD 6pin- Features
- SMD package 6 Pin type in miniature design
- Contact form: 1 Form A
- High reliability
- No moving parts
- Arc-Freewithnosnubbingcircuits
- 3750Vrms / 5000Vrms Input / Output isolation
- Low driver power requirements (TTL/CMOS Compatible)
- 6.4 x 8.8 x 3.4 mm
Application
•Telecommunications (PC, Electronic notepad)•Measuring and Testing equipment •Industrial control
•Security equipments
•High speed inspection machine Arc-Free with no snubbing circuits
•Security equipments
•High speed inspection machine Arc-Free with no snubbing circuits
Electrical Specifications PMA936
| Parameter | Value | Notes |
|---|---|---|
| Package | SMD6 | PMA936 is a 1-Form A solid state relay in a 6 pin SMD package that employs optically coupled MOSFET technology to provide 3750V / 5000V of input to output isolation. The optically coupled input is controlled by a highly efficient GaAlAs infrared LED and MOS FETs on the output side. |
| Load Type | AC / DC | |
| Load Voltage (V) | 100 | |
| Load Current (A) | 0.5 | |
| Contact Form | 1A | |
| LED Forward Voltage VF (V, max) | 1.5 | |
| LED Operating Current Ifon (mA, max) | 3.0 | |
| On-State Resistance RON (Ω, typ.) | 2.5 | |
| Off-State Leakage Current Ileak (μA, max) | 1.0 | |
| Turn-On Time ton (ms) | 1.0 | |
| Turn-Off Time toff (ms) | 0.1 |
