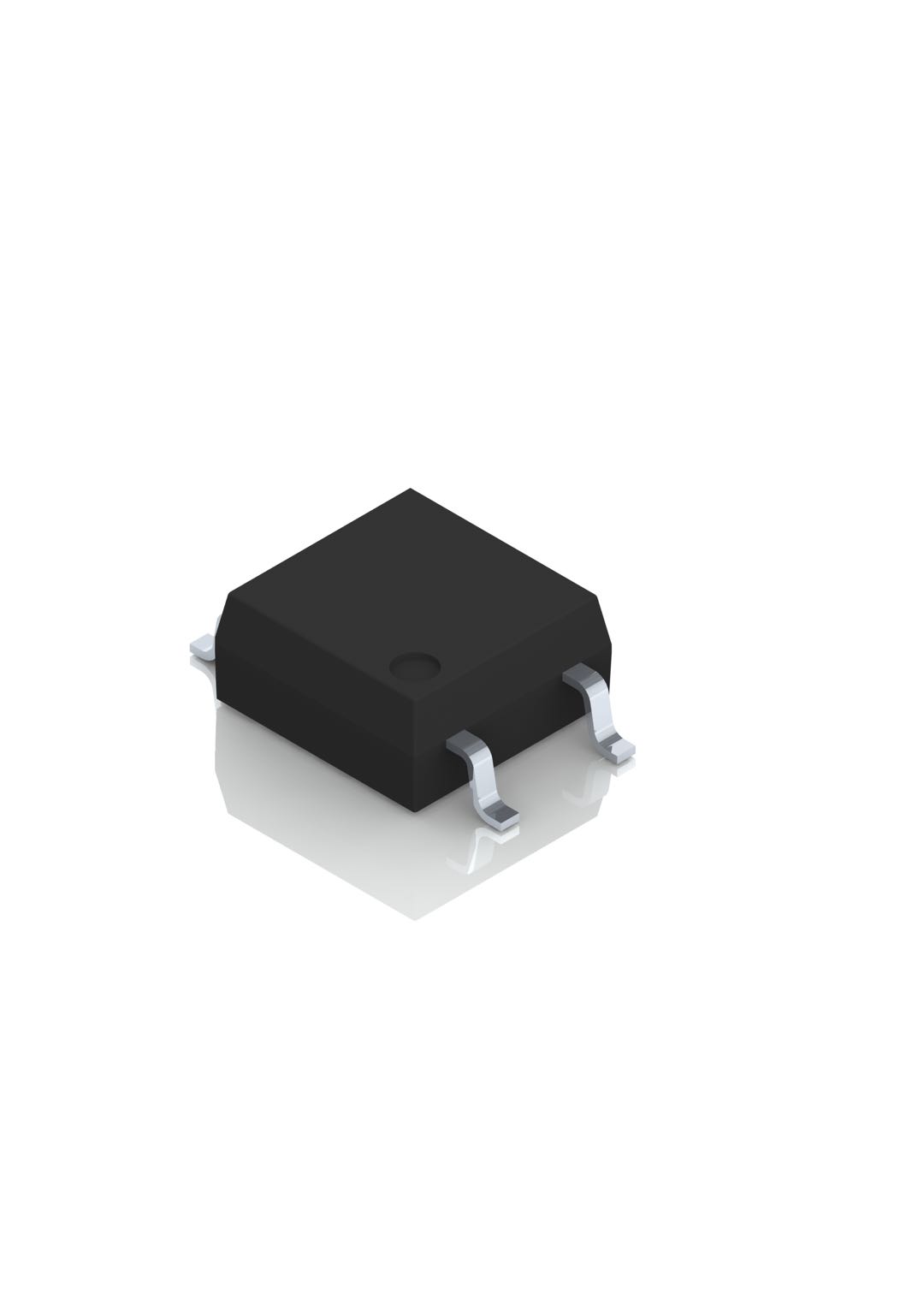

SOP 4pin
PMB210
SOP 4pin- Features
- SOP package 4 Pin type in miniature design
- Contact form : 1 Form B, Normally-Close
- Load voltage : 400V max.
- On-Resistance : 50Ω max.
- 1500Vrms Input / Output isolation
- Tape & Reel version available
- Low driver power requirements (TTL/CMOS Compatible)
- 4.4 * 4.3 * 2.0mm
Application
• Telecommunications (PC, Electronic notepad)• Measuring and Testing equipment
• Industrial control
• Security equipments
• High speed inspection machine
• Medicial equipments
Electrical Specifications PMB210
| Parameter | Value | Notes |
|---|---|---|
| Package | SOP4 | PMB210 is a miniature 1-Form B solid state relay in a 4 pin SOP package that employs optically coupled MOSFET technology to provide 1500V of input to output isolation. The optically coupled input is controlled by a highly efficient GaAlAs infrared LED and MOS FETs on the output side. |
| Load Type | AC / DC | |
| Load Voltage (V) | 400 | |
| Load Current (A) | 0.12 | |
| Contact Form | 1B | |
| LED Forward Voltage VF (V, max) | 1.4 | |
| LED Operating Current Ifon (mA, max) | 3.0 | |
| On-State Resistance RON (Ω, max) | 50 | |
| Off-State Leakage Current Ileak (μA, max) | 1.0 | |
| Turn-On Time ton (ms, max) | 1.0 | |
| Turn-Off Time toff (ms, max) | 3.0 |
