- PMC315
SOP 8pin
PMC315

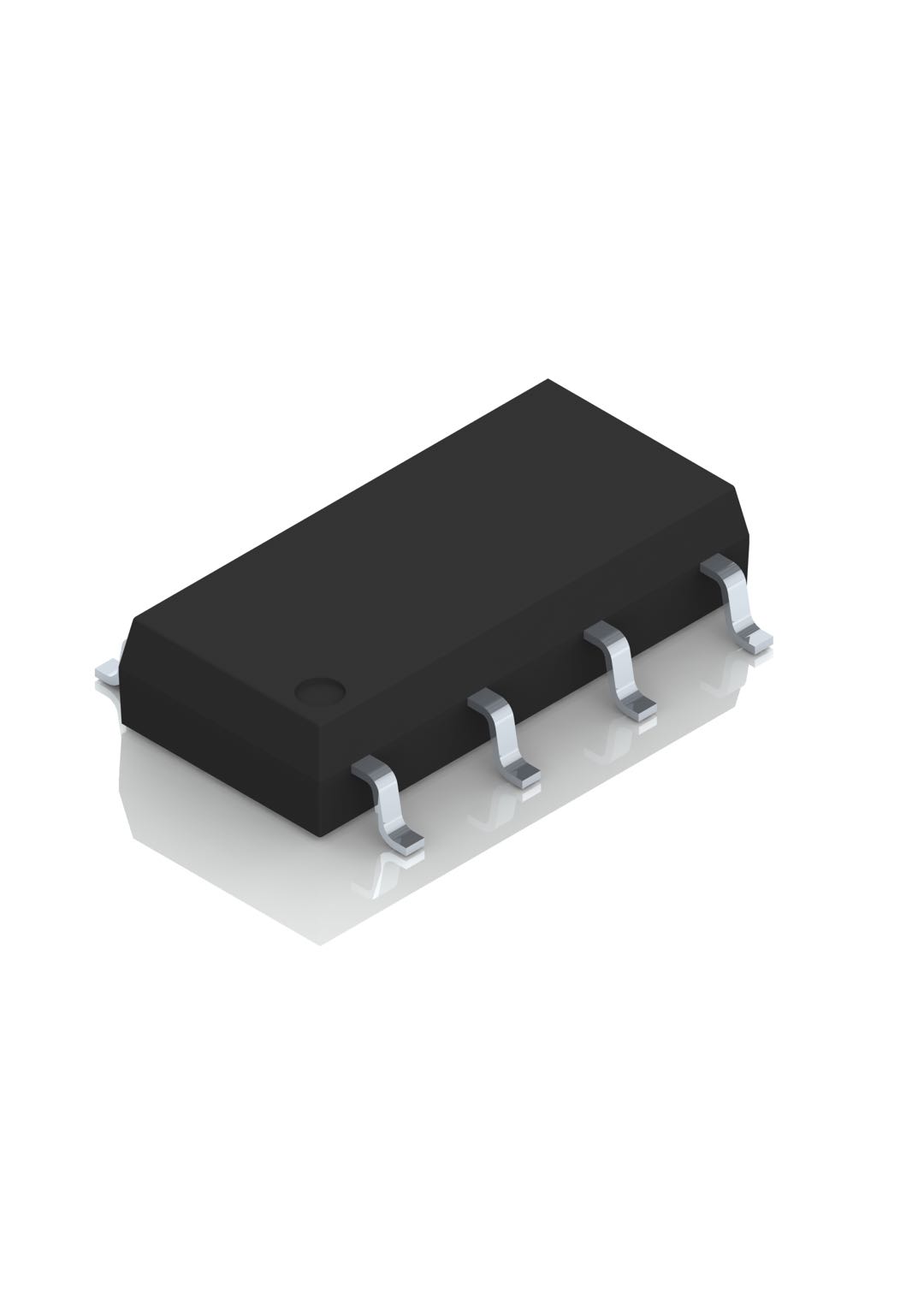

SOP 8pin- Features
- SOP package 8 Pin type in miniature design
- Load voltage : 60V max.
- On-Resistance : 50Ω max.
- 1500Vrms Input / Output isolation
- Tape & Reel version available
- Low driver power requirements (TTL/CMOS Compatible)
- Contact form : Normally-Open (1A) and Normally-Close (1B)
- 4.4 * 9.4 * 2.0mm
Application
• Telecommunications (PC, Electronic notepad)• Measuring and Testing equipment
• Industrial control
• Security equipments
• High speed inspection machine
• Medicial equipments
Electrical Specifications PMC315
| Parameter | Value | Notes |
|---|---|---|
| Package | SOP8 | PMC315 is a miniature 1-Form A and 1-Form B solid state relay in an 8 pin SOP package that employs optically coupled MOSFET technology to provide 1500V of input to output isolation. The optically coupled input is controlled by a highly efficient GaAlAs infrared LED and MOS FETs on the output side. |
| Load Type | AC / DC | |
| Load Voltage (V) | 60 | |
| Load Current (A) | 0.4 | |
| Contact Form | 1A + 1B | |
| On-State Resistance RON (Ω, max) | NO: 1.4 / NC: 3.0 | |
| Turn-On Time ton (ms, max) | NO: 0.5 / NC: 1.0 | |
| Turn-Off Time toff (ms, max) | NO: 0.2 / NC: 3.0 | |
| LED Operating Current Ifon (mA, max) | 3.0 | |
| LED Forward Voltage VF (V, max) | 1.4 | |
| Off-State Leakage Current Ileak (μA, max) | 1.0 |
