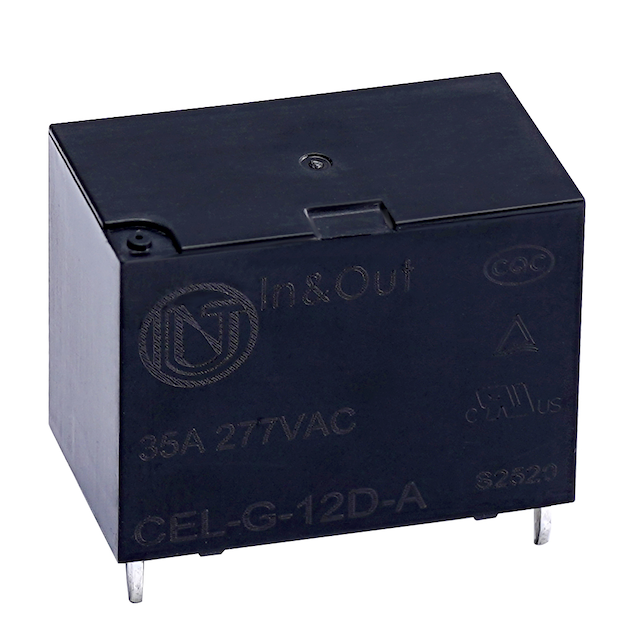

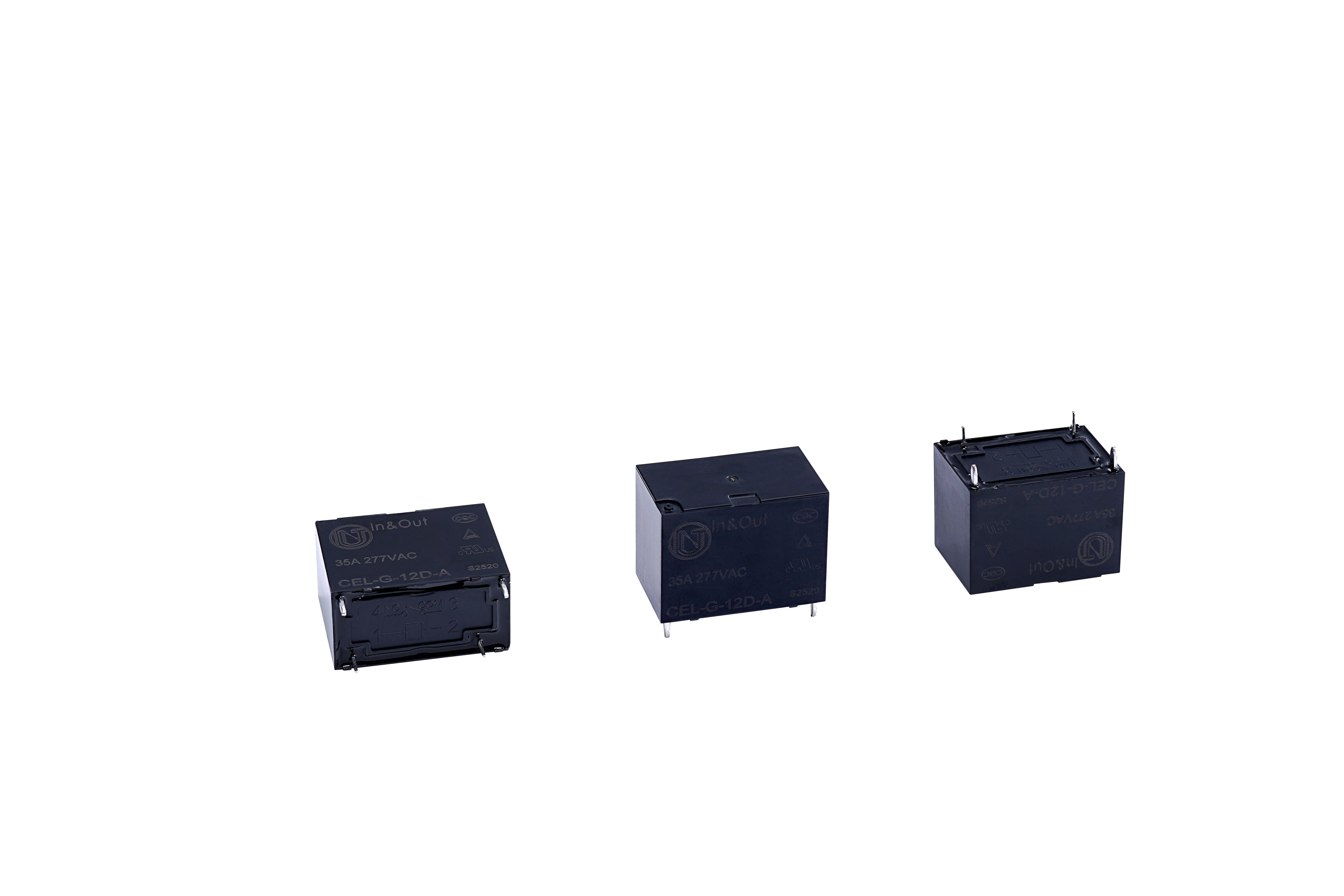

CEL-G

High Power Relay

Features: 35A switching capacity; The clearance distance between contact and coil is bigger than 6.4mm, the creepage distance is bigger than 8mm.; Low coil holding voltage contributes to saving energy of equipment; 1.8mm contact gap (compliant to IEC 62109-2-2011); UL insulation system: Class F; Environmental friendly product (RoHS compliant)

To Inverter used for Photovoltaic Power Generation System
Solar Inverter
AC/DC Power Control
UPS
Industrial Control, etc.

Add Inquiry (0) CEL-G Relay Spec

Model: CEL-G

Product Detail	Coil Voltage Form: DC Coil Voltage: 5VDC~24VDC Single Contact Contact Material: Ag Alloy Contact Rating: 35A 277VAC Max. Switching Power: 9695VA Max. Switching Voltage: 277VAC Max. Switching Current: 35A Coil Power Consumption: Approx. 1.4W Terminal Type: PCB Weight: Approx. 21g
Dimensions (mm)	30.4 × 16.0 × 23.3
