CEL-W

Miniature High Power Relay

Features: 50A loading and 40A 277VAC switching capability; UL insulation system: Class F; Environmental friendly product (RoHS compliant)

Air Conditioning Soft Start
Home Appliances
A/C Control
Refrigerator
Electronic Water Heater, etc.

Add Inquiry (0) CEL-W Relay Spec

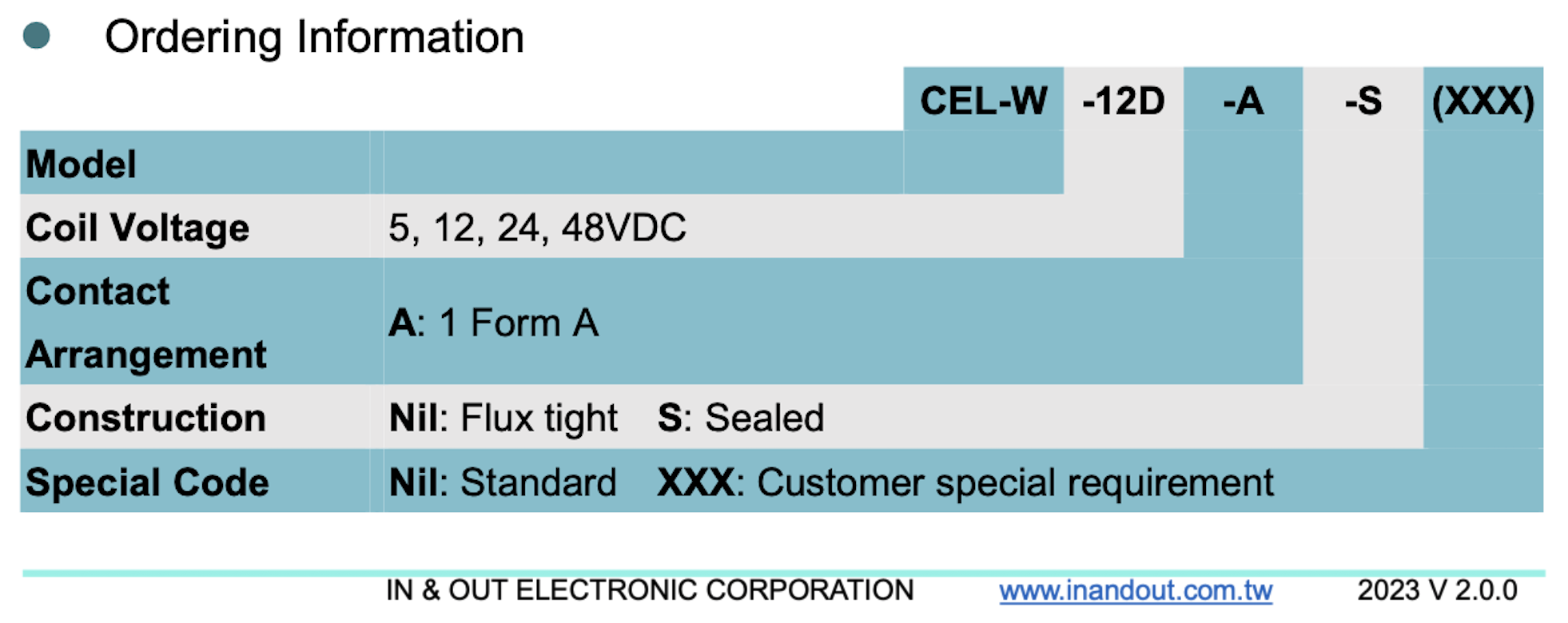

Model: CEL-W

Product Detail	Coil Voltage Form: DC Coil Voltage: 5VDC~48VDC Single Contact Contact Material: Ag Alloy Contact Rating: Making 20A, Loading 50A, Breaking 20A Making 10A, Loading 40A, Breaking 10A 40A 277VAC Max. Switching Power: 11080VA Max. Switching Voltage: 277VAC Max. Switching Current: 40A Coil Power Consumption: Approx. 0.9W Terminal Type: PCB Weight: Approx. 25g
Dimensions (mm)	30.4 × 16.0 × 23.3
