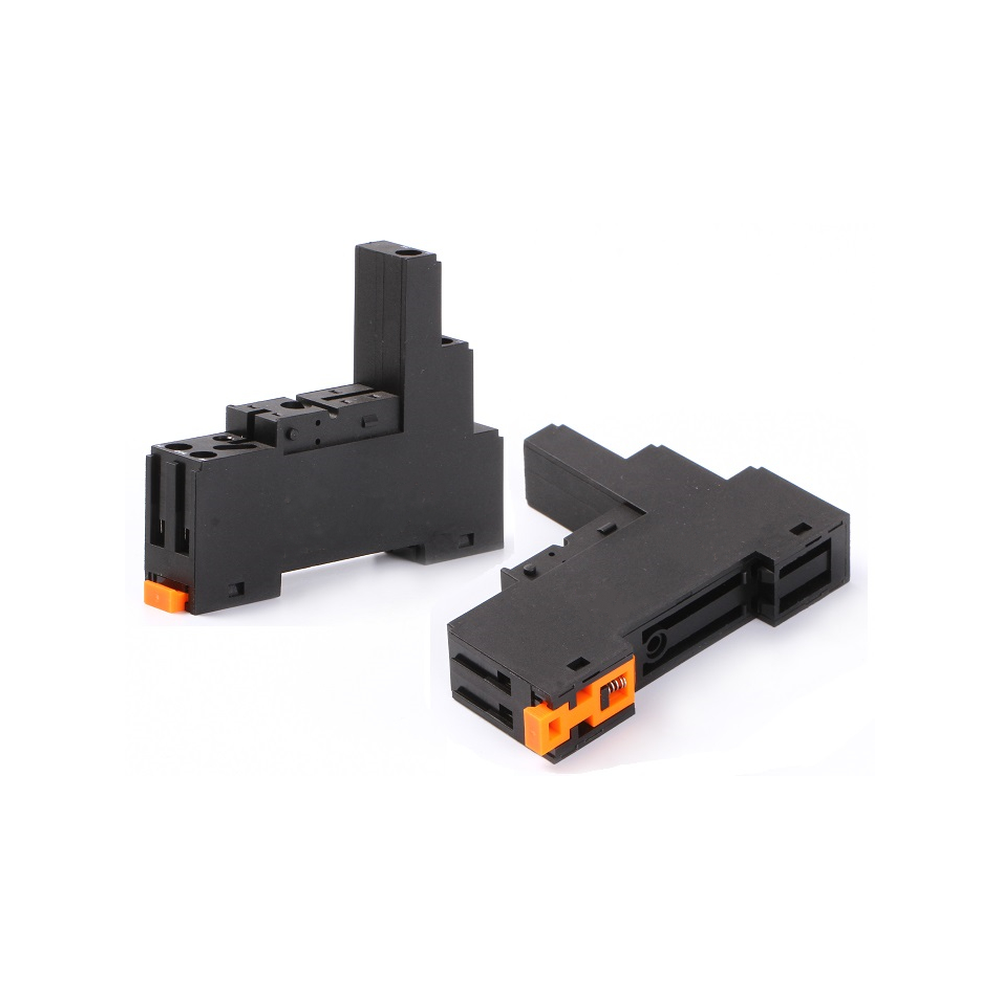

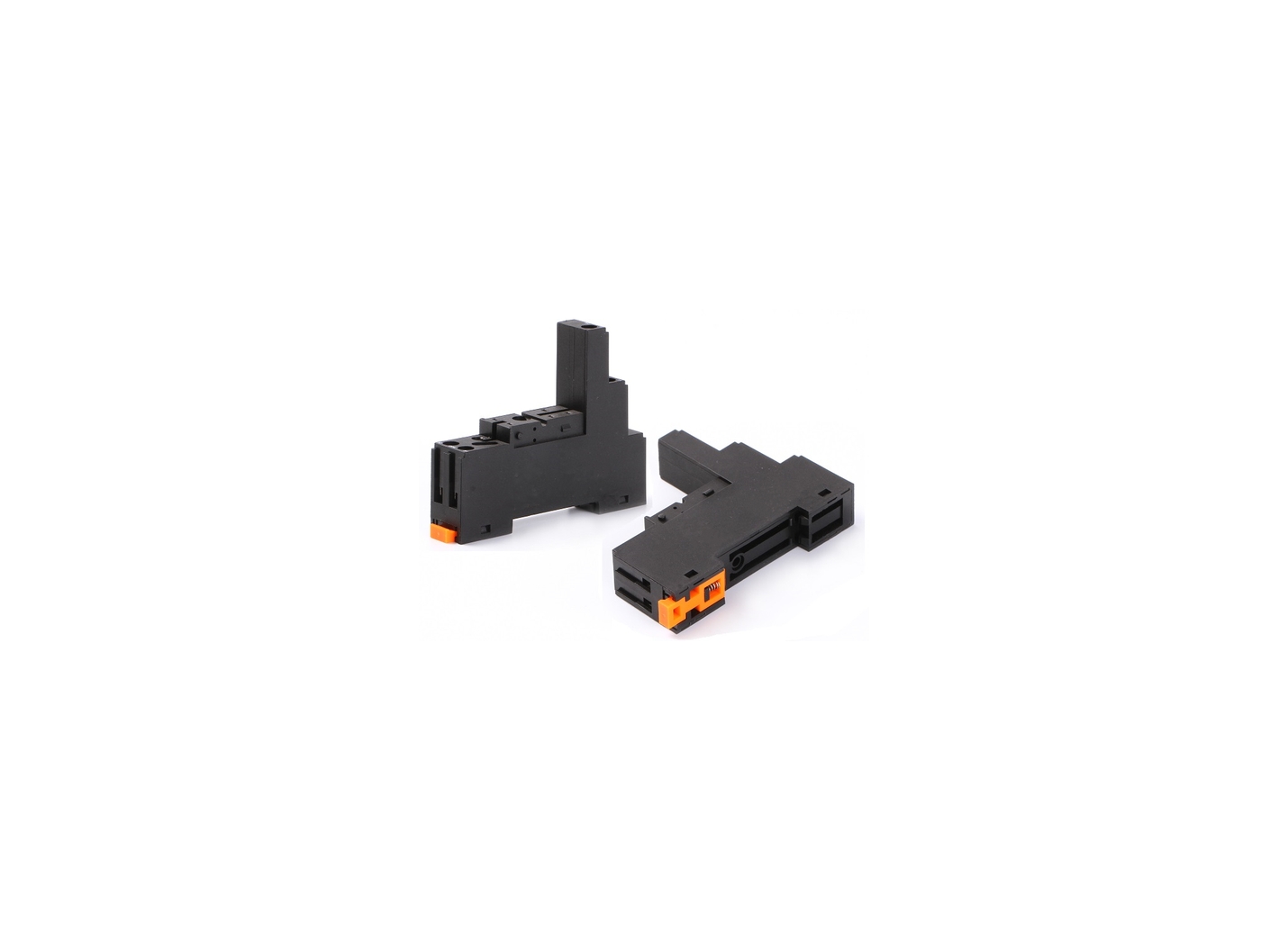

G Series Relay Socket
GNS-1C-C4
G Series Relay Socket- Features
- Rated current 12A, rated voltage 300V for medium load applications
- High dielectric strength: 4000V/S (coil/contact), 2500V/S (between contacts)
- Secure wiring with screw torque of 1.0 Nm, prevents loosening
- Supports 20–14 AWG / 0.5–2.5 mm² external wires, wide compatibility
- Wide operating temperature range: −40℃ to +85℃, suitable for harsh environments
- Lightweight design at only 34g for easy installation
Application
Industrial control systems: PLC I/O wiring, control circuits, small distribution panelsMotor and drive control: Small motors, pumps, fans, solenoid valves
HVAC equipment: Air conditioner compressors, cooling fans, heaters, thermostats
Home and office appliances: Dishwashers, ovens, refrigerators, small heaters
Power and lighting systems: UPS switching circuits, industrial/commercial lighting
Automation machinery: Production line and machinery wiring
| Specification GNS-1C-C4 |
| Socket Type | GNS-1C-C4 | |
| Rated Load | Current | 12 A |
| Voltage | 300 V | |
| Dielectric Strength | Coil / Contact: 4000 V/S Between Contacts: 2500 V/S |
|
| Screw Torque | 1.0 Nm | |
| External Connection Wire | 20–14 AWG / 0.5–2.5 mm² | |
| Ambient Temperature | −40 ℃ ~ +85 ℃ | |
| Weight | 34 g | |
| Outline Dimensions |
Outline Dimensions (unit: mm)
