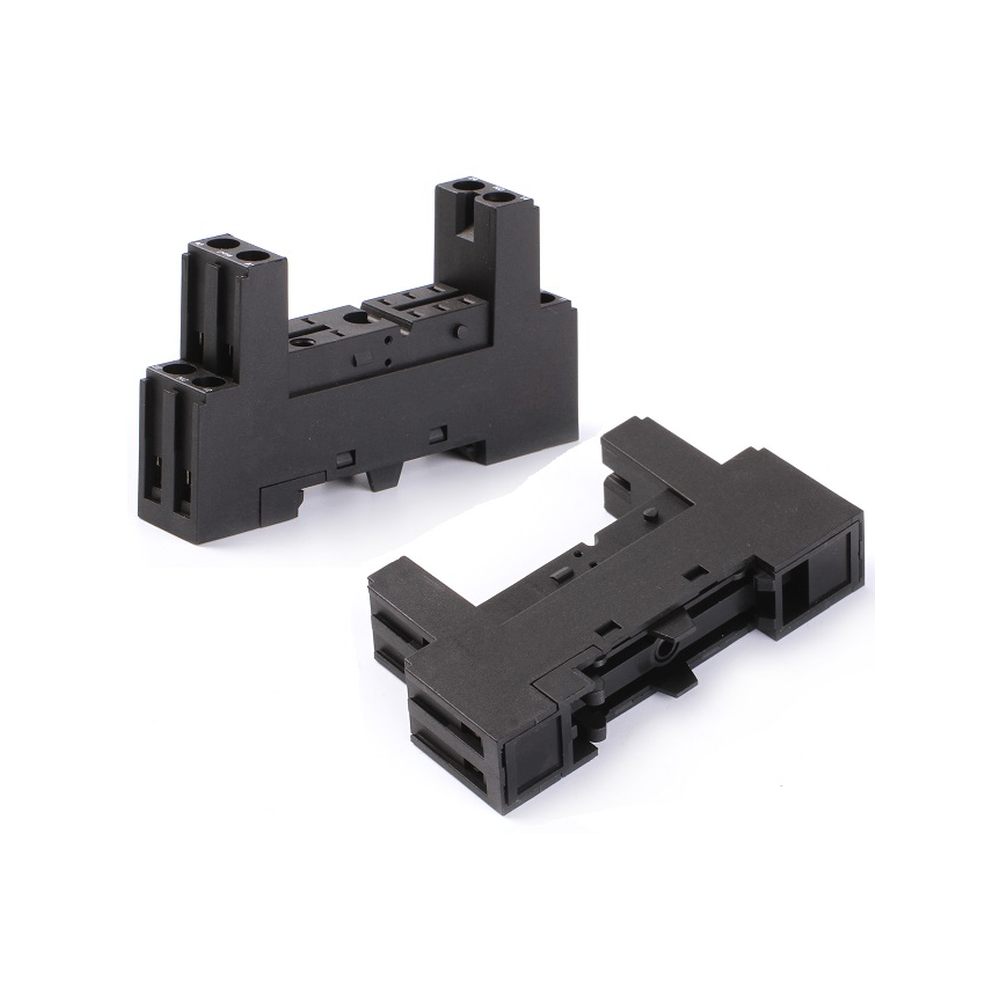

G Series Relay Socket

GN-2C-C2

G Series Relay Socket
Features
Industrial control: PLC wiring, control circuits, small distribution panels
Motor control: fans, small motors, pumps
Automation equipment: packaging machines, assembly lines
Home appliances: refrigerator compressors, dishwashers, ovens
Power and lighting: UPS switching, small lighting circuits

Application

Industrial control: PLC wiring, control circuits, small distribution panels
Motor control: fans, small motors, pumps
Automation equipment: packaging machines, assembly lines
Home appliances: refrigerator compressors, dishwashers, ovens
Power and lighting: UPS switching, small lighting circuits
Add Inquiry (0)
Added to Inquiry list.
GN-2C-C2 SPEC

| Specification GN-2C-C2 |


Socket Type GN-2C-C2
Rated Load Current 10A
Voltage 300V
Dielectric Strength Coil / Contact: 4000V/S
Between Contacts: 2500V/S
Screw Torque 1.0 Nm
External Connection Wire 20–14 AWG / 0.5–2.5 mm²
Ambient Temperature −40℃ ~ +85℃
Weight 38 g


| Outline Dimensions |


outline_GN-2C-C2

Outline Dimensions (unit: mm)
