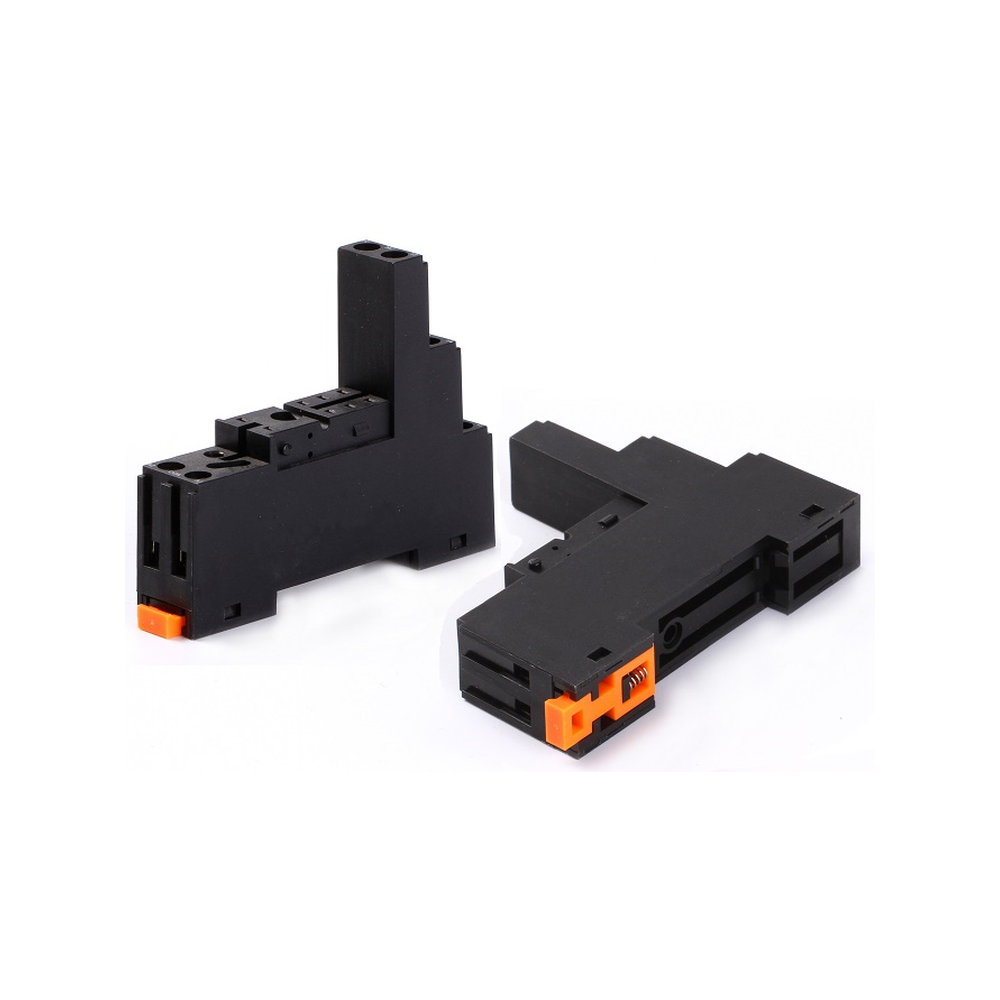

G Series Relay Socket
GN-2C-C4
G Series Relay Socket- Features
- Rated 10A / 300V for general control and power applications
- High dielectric strength: 4000V/S (coil/contact), 2500V/S (between contacts)
- Screw torque of 1.0 Nm for secure wiring
- Supports 20–14 AWG (0.5–2.5 mm²) wires for flexible installation
- Wide operating temperature range: −40℃ to +85℃
- Weight 38 g, solid construction
Application
Industrial control systems: PLC I/O wiring, control circuit switchingMotors and pumps: small motors, fans, solenoid valve control
HVAC: compressors, heaters, cooling fans
Lighting and power distribution: industrial/commercial lighting circuits, power switching
Automation machinery: equipment control, signal isolation
| Specification GN-2C-C4 |
| Socket Type | GN-2C-C4 | |
| Rated Load | Current | 10A |
| Voltage | 300V | |
| Dielectric Strength | Coil / Contact: 4000V/S Between Contacts: 2500V/S |
|
| Screw Torque | 1.0 Nm | |
| External Connection Wire | 20–14 AWG / 0.5–2.5 mm² | |
| Ambient Temperature | −40℃ ~ +85℃ | |
| Weight | 38 g | |
| Outline Dimensions |
Outline Dimensions (unit: mm)
