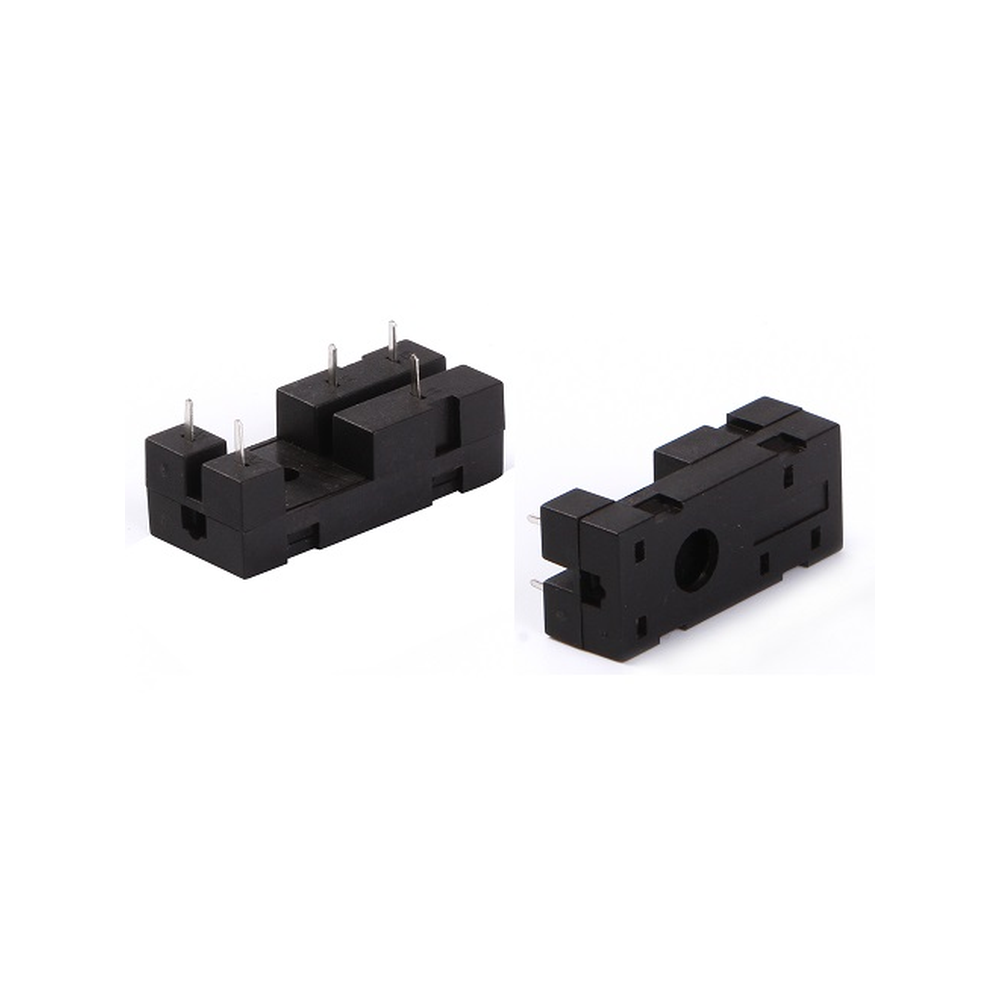

G Series Relay Socket
GNS-1C-A1
G Series Relay Socket- Features
- Rated current 12A, rated voltage 300V for medium load applications
- High dielectric strength: 5000V/S (coil/contact), 2000V/S (between contacts)
- Wide operating temperature: −40℃ to +85℃, suitable for harsh environments
- Ultra-lightweight at only 3.3 g, easy to install without added load
Application
Automotive relay sockets: suitable for small high-voltage automotive circuitsIndustrial control: PLC I/O modules, small control circuits
Motor/pump/fan control for medium-small inductive loads
Home appliances: compressors, heaters, small power circuits
Automation machinery and electronic device wiring
| Specification GNS-1C-A1 |
| Socket Type | GNS-1C-A1 | |
| Rated Load | Current | 12A |
| Voltage | 300V | |
| Dielectric Strength | Coil / Contact: 5000V/S Between Contacts: 2000V/S |
|
| Ambient Temperature | −40℃ ~ +85℃ | |
| Weight | 3.3 g | |
| Outline Dimensions |

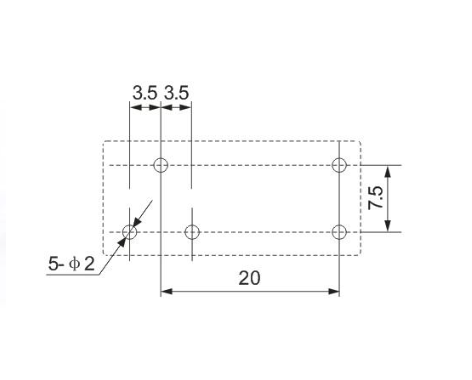

Outline Dimensions (unit: mm)
