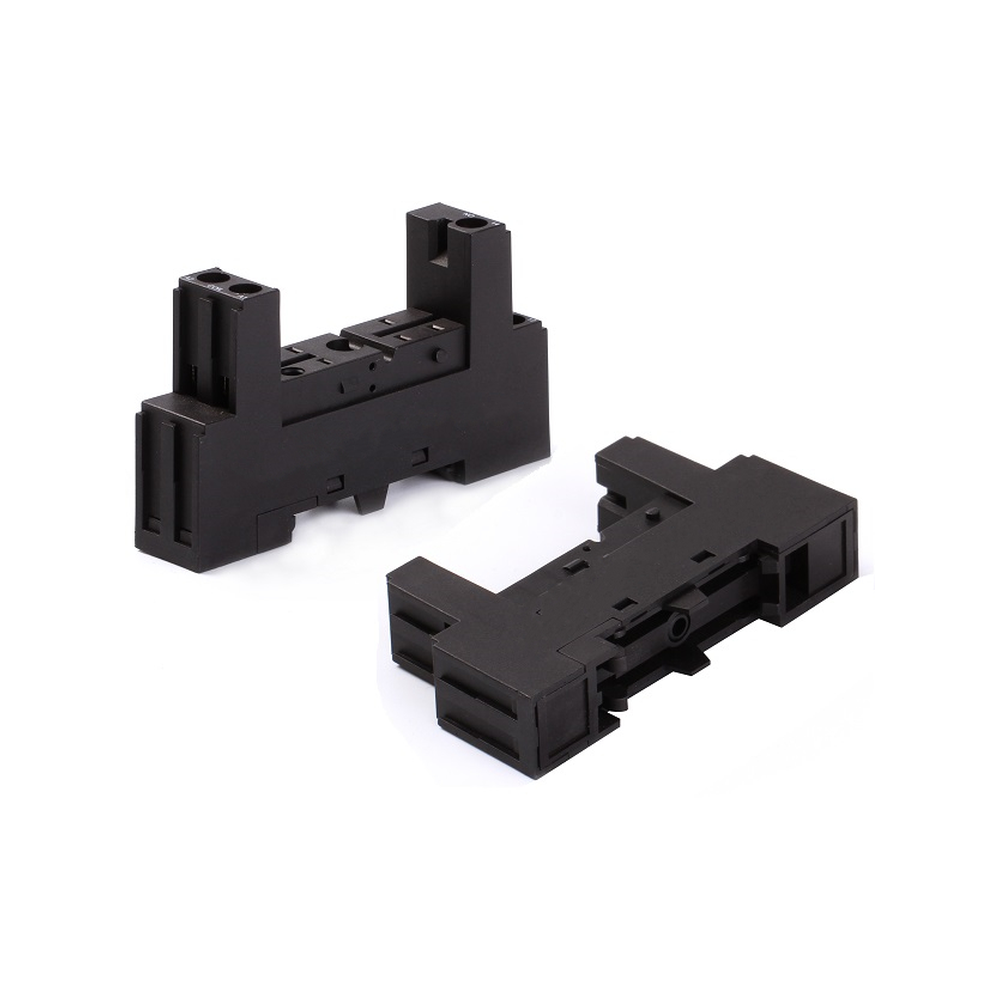

G Series Relay Socket
GNS-1C-C2
G Series Relay Socket- Features
- Rated current 12A, rated voltage 300V for medium load circuits
- High dielectric strength: 4000V/S (coil/contact), 2500V/S (between contacts)
- Screw torque of 1.0 Nm for reliable connections
- Supports 20–14 AWG / 0.5–2.5 mm² wires, wide wiring compatibility
- Wide operating temperature: −40℃ to +85℃
- Weight 33 g, lightweight design
Application
Industrial control systems: PLC I/O wiring, control circuit switchingMotors and pumps: small motors, fans, solenoid valve control
HVAC equipment: compressors, heaters, cooling fans
Lighting and power distribution: industrial or commercial lighting circuits
Automation equipment and production line signal control
| Specification GNS-1C-C2 |
| Socket Type | GNS-1C-C2 | |
| Rated Load | Current | 12A |
| Voltage | 300V | |
| Dielectric Strength | Coil / Contact: 4000V/S Between Contacts: 2500V/S |
|
| Screw Torque | 1.0 Nm | |
| External Connection Wire | 20–14 AWG / 0.5–2.5 mm² | |
| Ambient Temperature | −40℃ ~ +85℃ | |
| Weight | 33 g | |
| Outline Dimensions |
Outline Dimensions (unit: mm)
