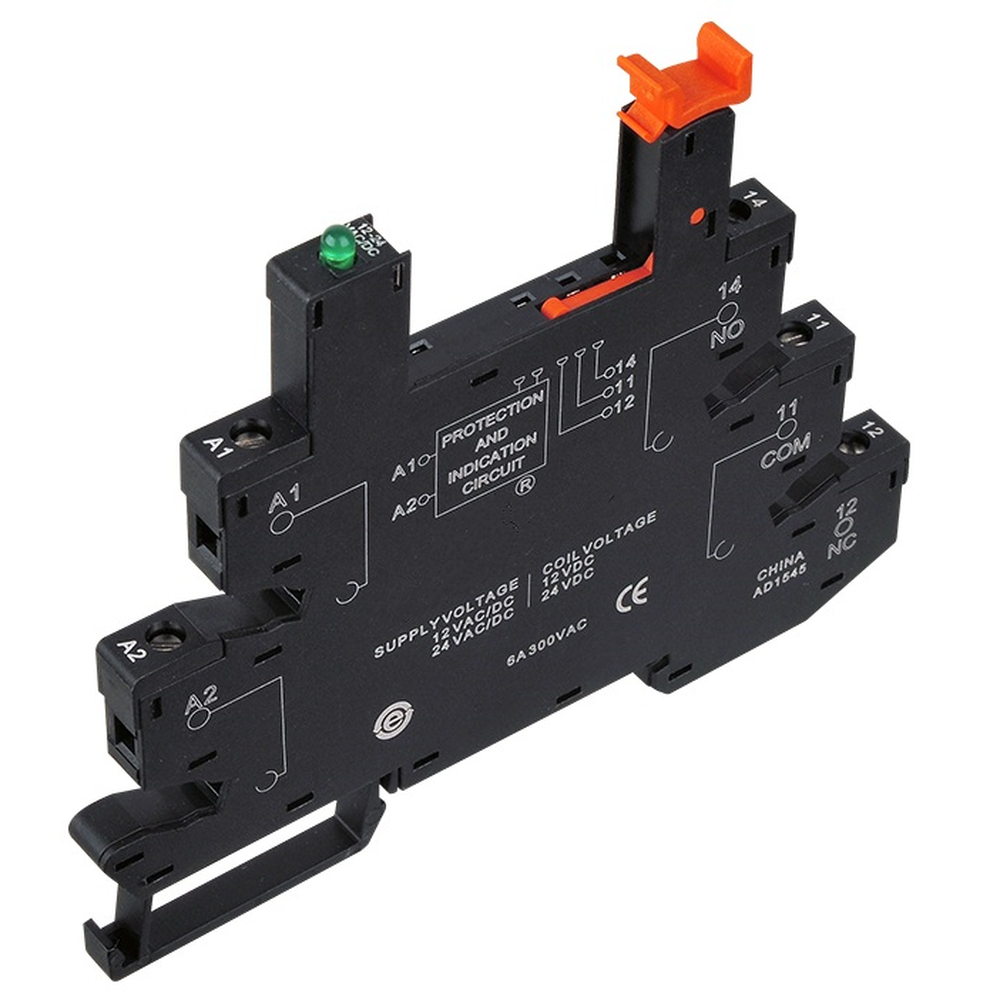

S Series Relay Socket
SB-1C-C2N
S Series Relay Socket- Features
- Rated 6A / 250V, ideal for small and medium load relay sockets
- High dielectric strength: 4000V/S (Coil/Contact) and 2500V/S (Between Contacts)
- Screw torque 0.5Nm ensures stable and safe wiring
- Supports 20–16 AWG (0.5–1.5mm²) connection wires
- Compact and lightweight (24g) design suitable for limited-space installations
Application
- Control and signal relay sockets
- Industrial automation systems
- Electrical control cabinets
- Power distribution and monitoring units
- HVAC and protection relay modules
| Specification SB-1C-C2N |
| Socket Type | SB-1C-C2N | |
| Rated Load | Current | 6 A |
| Voltage | 250 V | |
| Dielectric Strength | Coil / Contact: 4000 V/S Between Contacts: 2500 V/S | |
| Screw Torque | 0.5 Nm | |
| External Connection Wire | 20–16 / 0.5–1.5 AWG/mm² | |
| Ambient Temperature | −40 ℃ ~ +70 ℃ | |
| Weight | 24 g | |
| Outline Dimensions |
Outline Dimensions (unit: mm)
