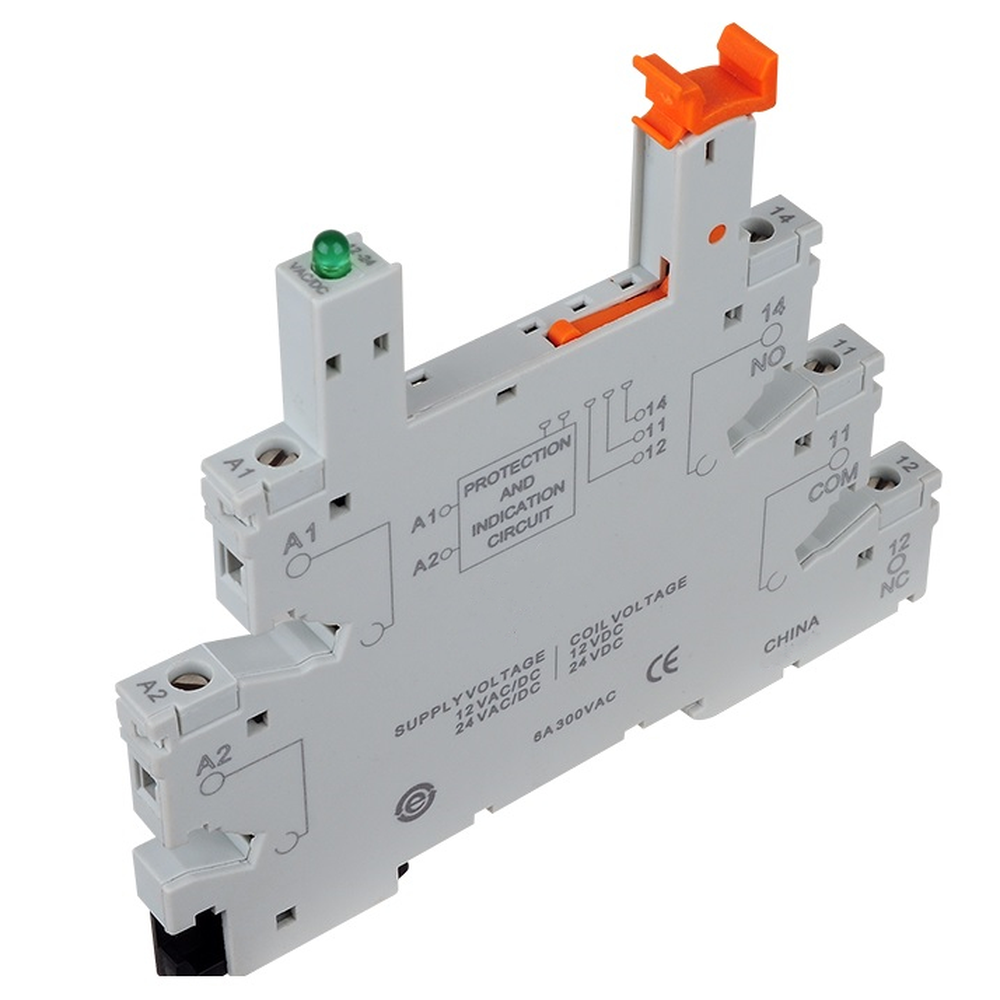

S Series Relay Socket
SB-1C-C2
S Series Relay Socket- Features
- Rated 6A / 250V, suitable for small and medium relay applications
- Dielectric strength up to 4000V/S (Coil/Contact) and 2500V/S (Between Contacts)
- Screw torque 0.5Nm, ensuring secure wiring
- Compatible with 20–16AWG (0.5–1.5mm²) connection wires
- Compact and lightweight (22g) with excellent insulation reliability
Application
- General-purpose relay sockets
- Industrial control systems and automation panels
- Communication equipment and signal control circuits
- Power supply switching units
- Measurement and protection relay modules
| Specification SB-1C-C2 |
| Socket Type | SB-1C-C2 | |
| Rated Load | Current | 6 A |
| Voltage | 250 V | |
| Dielectric Strength | Coil / Contact: 4000 V/S Between Contacts: 2500 V/S | |
| Screw Torque | 0.5 Nm | |
| External Connection Wire | 20–16 / 0.5–1.5 AWG/mm² | |
| Ambient Temperature | −40 ℃ ~ +70 ℃ | |
| Weight | 22 g | |
| Outline Dimensions |
Outline Dimensions (unit: mm)
