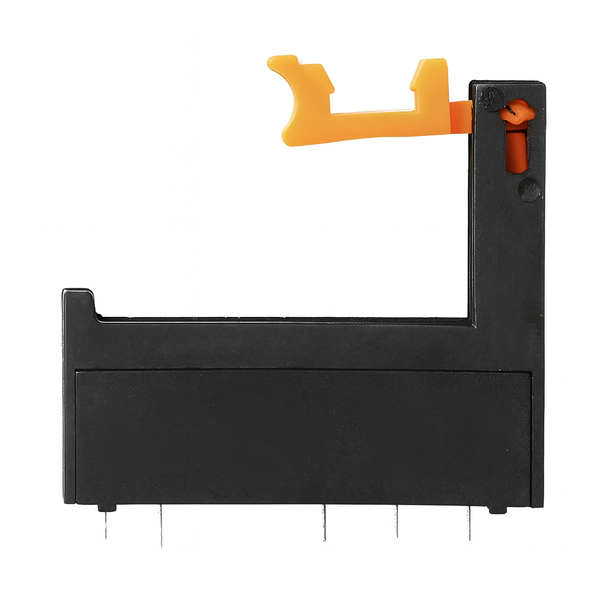

S Series Relay Socket
SB-1C-A
S Series Relay Socket- Features
- Rated 8A / 250V for general relay socket usage
- Dielectric strength 2000V/S ensures solid insulation reliability
- Wide operating temperature −40℃ ~ +85℃
- Ultra-lightweight (2.5g) and compact, friendly for dense PCB layouts
- Stable contact design for secure relay mounting and easy replacement
Application
- PCB-mounted relay bases
- Industrial control and automation modules
- Home appliances and small electronic devices
- Communication/signal relay circuits
- General-purpose compact relay sockets
| Specification SB-1C-A |
| Socket Type | SB-1C-A | |
| Rated Load | Current | 8 A |
| Voltage | 250 V | |
| Dielectric Strength | 2000 V/S | |
| Ambient Temperature | −40 ℃ ~ +85 ℃ | |
| Weight | 2.5 g | |
| Outline Dimensions |

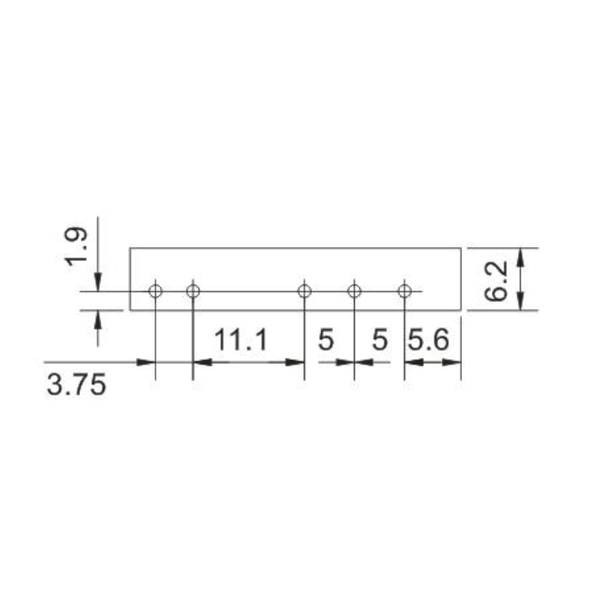

Outline Dimensions (unit: mm)
