S Series Relay Socket

SAS

S Series Relay Socket
Features
Rated 7A / 250V, compact and lightweight design
Dielectric strength 2000V/S, ensuring stable insulation performance
Operating temperature range −40℃ ~ +70℃
Small size (0.75g) ideal for space-limited PCB applications
Designed for secure relay mounting and easy replacement

Application

  • PCB-mounted relays
  • Industrial control modules
  • Communication and signal relay systems
  • Home appliances and electronic products
  • Compact relay socket applications
Add Inquiry (0)
Added to Inquiry list.
SAS

| Specification SAS |

Socket TypeSAS
Rated LoadCurrent7 A
Voltage250 V
Dielectric Strength2000 V/S
Ambient Temperature−40 ℃ ~ +70 ℃
Weight0.75 g

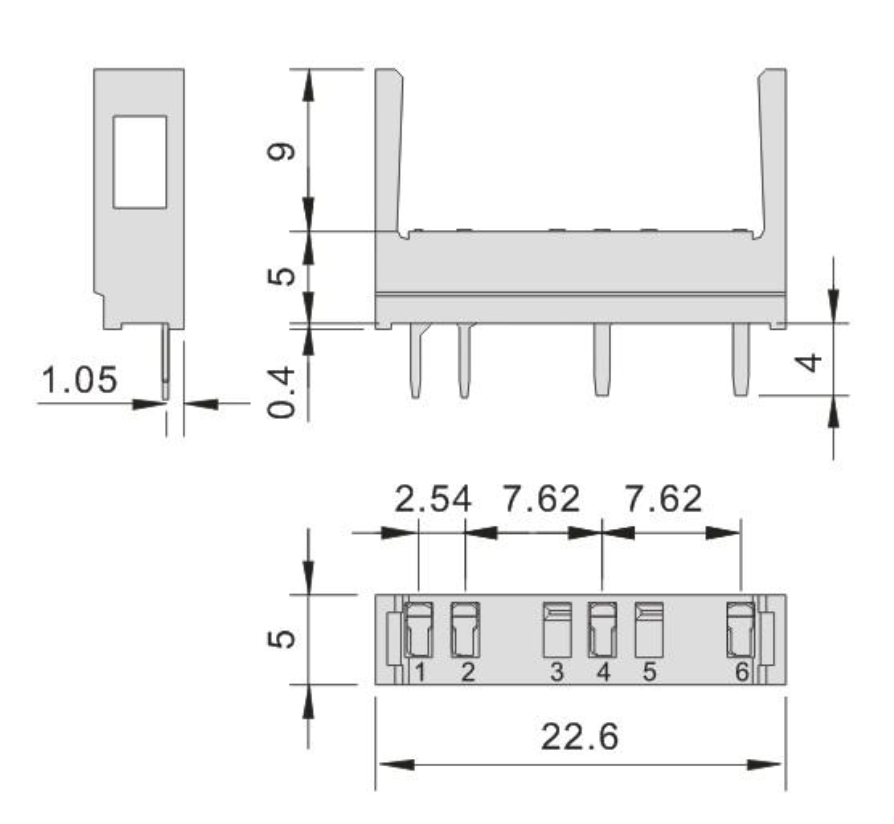

| Outline Dimensions |

outline_SAS

Outline Dimensions (unit: mm)
