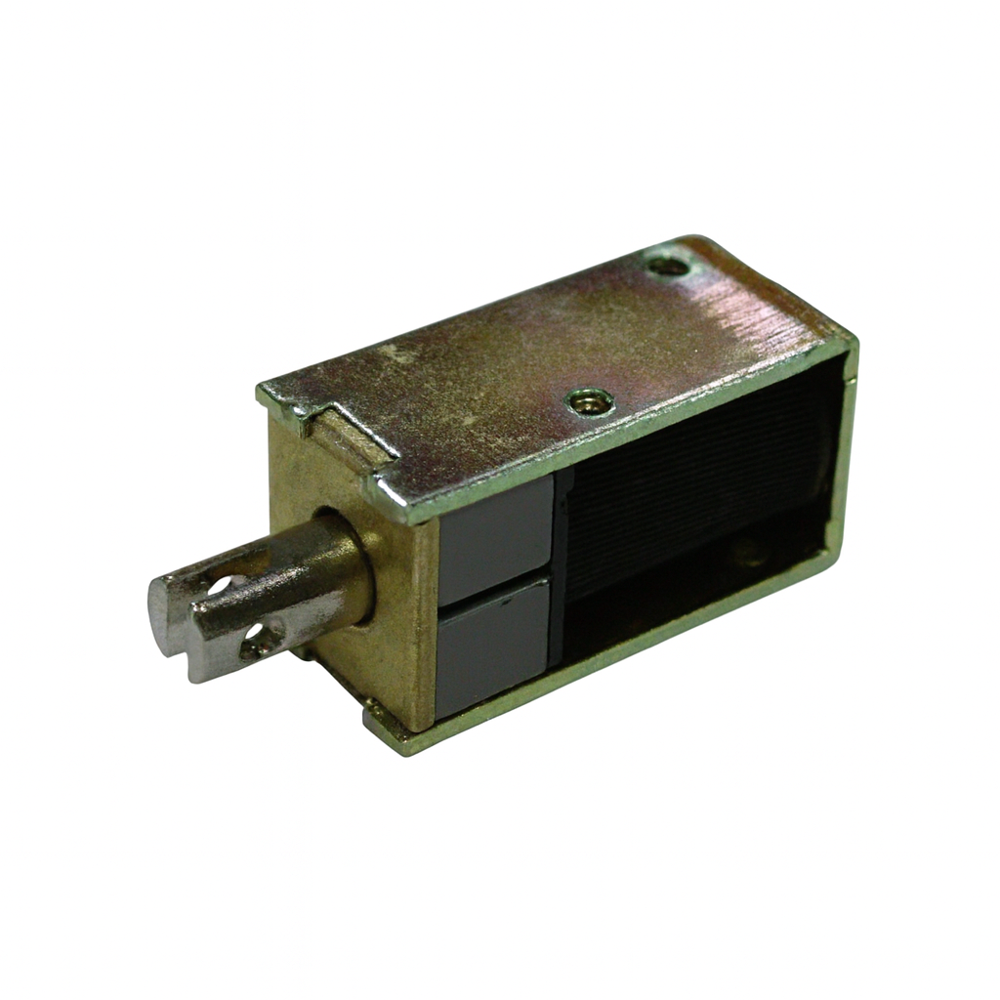

SK-0625
Keep Type- Features
- Compact Size, High Magnetic Output: Despite its small size, the SK-0625 delivers up to 1024 Ampere-Turns at 10% duty, and maintains a stable 320 AT in continuous operation.
- High Efficiency, Low Power Consumption: Operates at only 2.5W under continuous mode, minimizing heat rise and energy use, ideal for long-duty or continuous drive applications.
- Flexible Duty Cycle Operation: Supports 100%, 50%, 25%, and 10% duty settings for either continuous or intermittent power modes.
- Wide Voltage Options (6V / 12V / 24V / 48V): Easily adaptable to DC systems or PLC control environments.
- Fast Response & Long Service Life: High-grade copper winding and insulation ensure reliable performance with quick actuation.
- Suitable for Light-to-Medium Load Control: Ideal for compact automation modules, electronic locks, and valve actuation units.
Application
• Automation equipment: push-pull actuators, dispensing mechanisms, and conveyor control modules.
• Solenoid valve control systems: miniature valve actuation and pressure regulation.
• Electronic locking devices: door locks, drawer locks, and safety release mechanisms.
• Medical and laboratory instruments: sample handling, testing devices, and miniature actuator modules.
• Consumer electronic devices: vending machines, coin mechanisms, and button release modules.
• Industrial control and electromechanical applications: PLC output drives, positioning, and micro-motion control.
SK-0625 Series Electromagnet | Compact & Efficient, Continuous / Intermittent Duty
▍Coil Data
| Model | Voltage (V) | Resistance (Ω @20°C) | Coil Turns |
|---|---|---|---|
| SK-0625-6V | 6 | 7.2 | 550 |
| SK-0625-12V | 12 | 28.8 | 1100 |
| SK-0625-24V | 24 | 115.5 | 2200 |
| SK-0625-48V | 48 | 460.8 | 4400 |
▍Duty Cycle vs Output
| Duty Cycle | Max. ON Time (Sec) | Power (W @20°C) | Ampere-Turns |
|---|---|---|---|
| 100% (Continuous) | ∞ | 2.5 | 320 |
| 50% | 60 | 5 | 458 |
| 25% | 34 | 10 | 650 |
| 10% | 7 | 25 | 1024 |
▍Coil Voltage / Overdrive
| Model | 100% | 50% | 25% | 10% |
|---|---|---|---|---|
| SK-0625-6V | 4.2 | 6 | 8.5 | 13.4 |
| SK-0625-12V | 8.5 | 12 | 17 | 26.8 |
| SK-0625-24V | 17 | 24 | 34 | 53.6 |
| SK-0625-48V | 34 | 48 | 67.8 | 107.2 |
▍Features
- Compact & efficient: only 2.5W in continuous duty with 320 AT output—low heat and low power.
- Flexible duty operation: 100% / 50% / 25% / 10% modes; peak up to 1024 AT at 10% duty.
- Wide voltage options (6V / 12V / 24V / 48V) for easy DC/PLC integration.
- Fast response and long-life winding for reliable actuation.
▍Applications
- Automation modules: micro push–pull actuators, feeding & conveying control
- Small solenoid valve actuation; pneumatic/fluid control
- Electronic locks and release mechanisms
- Medical & lab devices: sample actuation, test fixtures
- Commercial devices: vending/coin mechanisms, button eject modules
▍Description
The SK-0625 is a compact, high-efficiency DC solenoid. At 20°C, it delivers 320 AT at just 2.5W in continuous duty. In 50% / 25% / 10% intermittent modes, the peak output reaches 458 / 650 / 1024 AT. With 6–48V variants, it integrates cleanly into automation and control systems where long duty and quick response are required.
