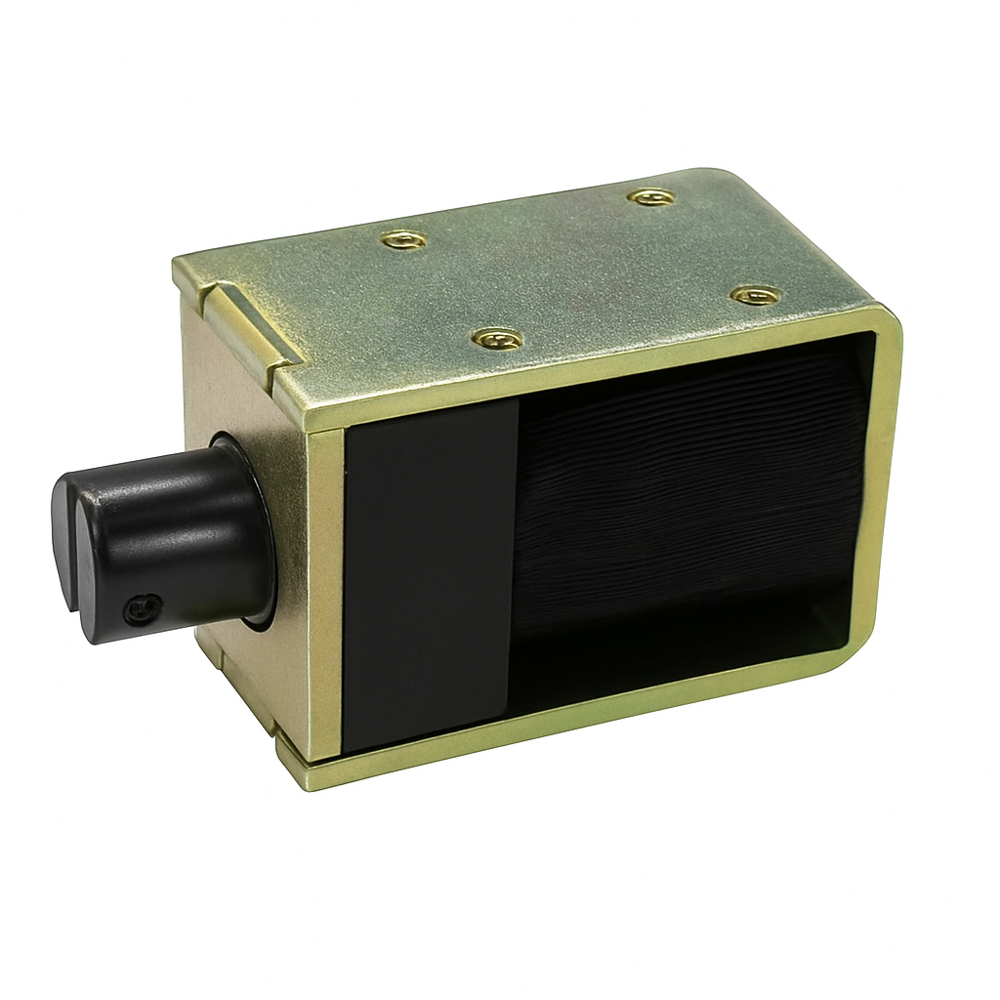

SK-1240
Keep Type- Features
- High Magnetic Flux Output and Strong Medium-Sized Holding Force: The SK-1240 Series features a high-permeability core and optimized coil design, delivering up to 2160 Ampere-Turns in 10% intermittent mode, and maintaining a stable 683 AT in continuous operation, offering consistent push-pull strength and long-duration holding performance.
- High Efficiency and Low Power Consumption: With only 6W coil power under continuous duty, it supports long-term energized operation, effectively minimizing heat buildup and energy usage — ideal for automation and industrial control applications.
- Multiple Duty Cycle Modes: Supports 100%, 50%, 25%, and 10% duty cycle settings, allowing users to switch between continuous holding or high-power intermittent operation as needed.
- Multiple Voltage Versions (6V / 12V / 24V / 48V): Covers standard DC voltage options for easy integration with PLC systems, automation machinery, and other DC power-driven systems.
- Heat-Resistant and Reliable Structure: Constructed with high-temperature enameled copper wire and reinforced insulation layers, ensuring superior magnetic conductivity, long-term stability, and operational safety.
- Compact Size and Flexible Installation: Medium-sized structure offers both high magnetic force and easy integration, suitable for diverse production lines and modular installation environments.
Application
• Automated production equipment: push-pull actuators, positioning modules, and feeding systems.
• Industrial machinery control: packaging machines, cutting machines, forming machines, and jig control systems.
• Solenoid valve and pneumatic control systems.
• Door lock and safety control mechanisms.
• Medical and diagnostic equipment: precision actuator modules and sample release units.
• Commercial equipment: vending machines, coin mechanisms, and automatic door control systems.
• Testing and laboratory instruments: drive control components and sample adsorption systems.
SK-1240 Series Electromagnet | Mid-Size, High Magnetic Output for Continuous & Intermittent Duty
▍Coil Data
| Model | Resistance (Ω @20°C) | Coil Turns |
|---|---|---|
| SK-1240-6V | 3 | 484 |
| SK-1240-12V | 12 | 976 |
| SK-1240-24V | 48 | 1952 |
| SK-1240-48V | 192 | 3904 |
▍Duty Cycle vs Output
| Duty Cycle | Max. ON Time (s) | Power (W @20°C) | Ampere-Turns |
|---|---|---|---|
| 100% (Continuous) | ∞ | 6 | 683 |
| 50% | 60 | 12 | 967 |
| 25% | 30 | 24 | 1365 |
| 10% | 10 | 60 | 2160 |
▍Coil Voltage / Overdrive
| Model | 100% | 50% | 25% | 10% |
|---|---|---|---|---|
| SK-1240-6V | 4.2 | 6 | 8.5 | 13.4 |
| SK-1240-12V | 8.5 | 12 | 17 | 26.8 |
| SK-1240-24V | 17 | 24 | 33.9 | 53.7 |
| SK-1240-48V | 33.9 | 48 | 67.8 | 107.3 |
▍Features
- High magnetic output: 683 AT continuous, up to 2160 AT at 10% duty.
- Efficient coil design: 6–60 W power range with excellent thermal management.
- Selectable duty modes (100% / 50% / 25% / 10%) to balance holding vs. peak force.
- Wide voltage options 6V / 12V / 24V / 48V for easy DC/PLC integration.
- Precision winding, reinforced insulation—reliable for long-duty and high-cycle use.
▍Applications
- Automation: push–pull actuators, positioning and feeding modules
- Machinery control: packaging/cutting/forming clamping & drive
- Solenoid valve & pneumatic control units
- Door lock, safety control & automatic door systems
- Medical/inspection devices: actuators & sample release
- Commercial devices: vending/coin mechanisms, latches & locks
▍Description
The SK-1240 is a mid-size high-force DC solenoid. It delivers 683 AT continuously at 20 °C and up to 2160 AT at 10% duty. With robust thermal/insulation design, it operates stably in automation and industrial control where both continuous holding and high peak force are required.
