G Series Relay Socket

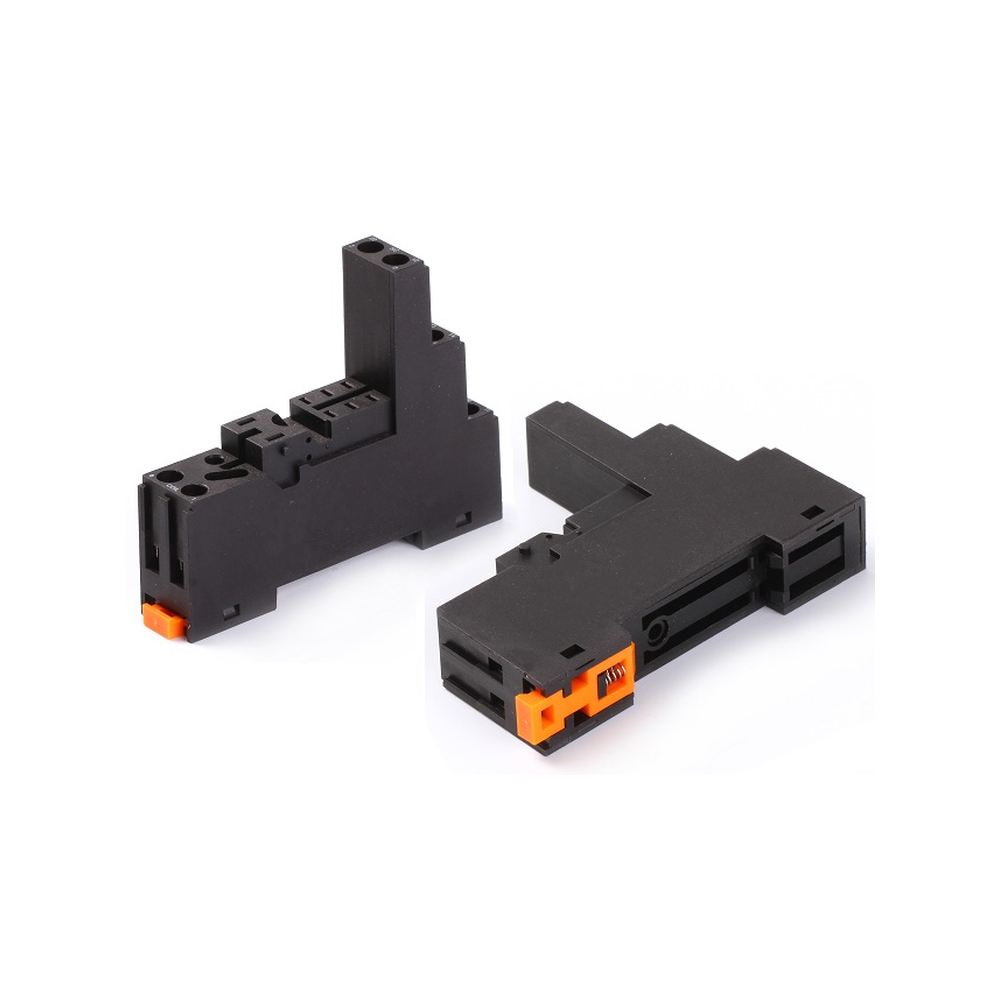

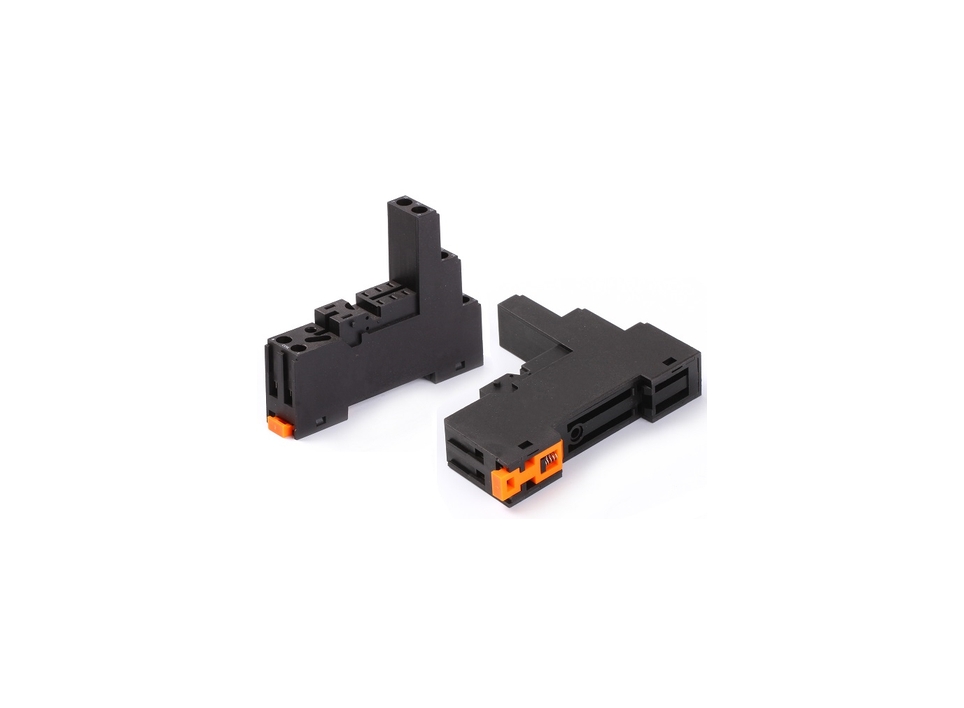

GQ-2C-C5
G Series Relay Socket- Features
- Rated 10A / 300V, suitable for most industrial control and power distribution applications
- High dielectric strength: 4000V/S (coil to contact), 2500V/S (between contacts) for safety assurance
- Wide wire range support (0.5–2.5 mm² / AWG 20–14) for flexible wiring
- Screw terminal with 1.0 Nm torque, ensuring secure and reliable connections
- Operating temperature −40℃ to +85℃, ideal for harsh environments
- Lightweight (38 g) for easy installation and maintenance
Application
-
Industrial automation control panels and distribution boards
-
Interface relays for PLC input/output modules
-
Control of small inductive loads such as motors, pumps, and fans
-
HVAC systems (air conditioners, compressors, heaters)
-
Lighting and power circuit switching
-
Safety and protection control circuits
| Specification GQ-2C-C5 |
| Socket Type | GQ-2C-C5 | |
| Rated Load | Current | 10 A |
| Voltage | 300 V | |
| Dielectric Strength | Coil / Contact: 4000 V/S Between Contacts: 2500 V/S |
|
| Screw Torque | 1.0 Nm | |
| External Connection Wire | 20–14 AWG / 0.5–2.5 mm² | |
| Ambient Temperature | −40 ℃ ~ +85 ℃ | |
| Weight | 38 g | |
| Outline Dimensions |
Outline Dimensions (unit: mm)
