AUTOMOTIVE RELAY

AI

Automotive Relay

Features: 35A switching capability; Ambient temp. range up to 125℃; Plug-In Type Relay; 1 Form A & 1 Form C contact arrangement; Plastic sealed and dust protected types available; Environmental friendly product (RoHS compliant)

Application

Car auxiliary systems
Seat control
Car heated seats
Linkage control
Heated window control
Wiper control
Light control
Fan control
Lighting system
Headlight control
Solenoid control
Car air conditioning
Heater
Fuel pump control
Wiper control, etc

Add Inquiry (0) AI Relay Spec

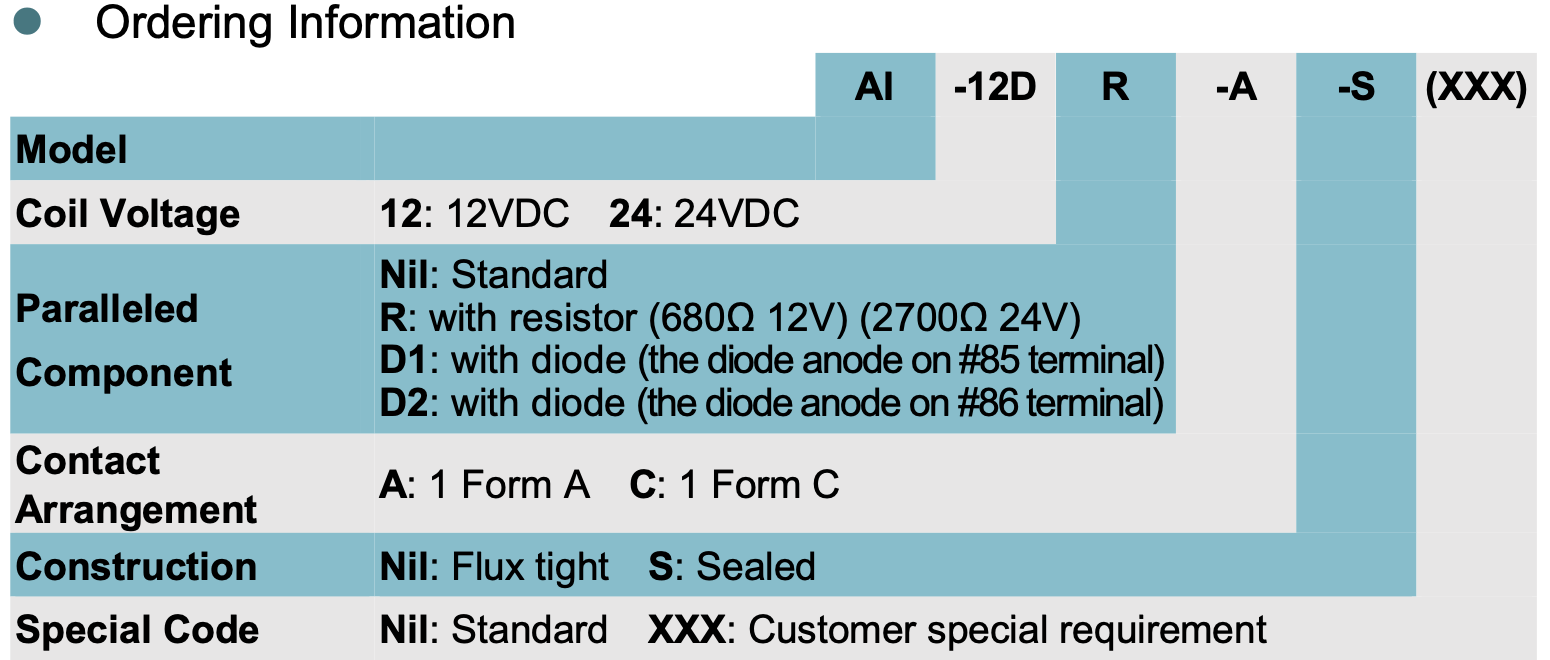

Model: AI

Product Detail	Coil Voltage Form: DC relay Coil Voltage: 12/24VDC Contact Material: Ag Alloy Contact Arrangement: 1A, 1C Contact Rating: 1A: 35A 14VDC / 15A 28VDC 1C: NO: 35A 14VDC / NC: 20A 14VDC, 15A 28VDC Coil Power Consumption: 12VDC: Approx. 1.5W 24VDC: Approx. 1.8W Max. Switching Power: 490W Max. Switching Voltage: 16VDC Max. Switching Current: 35A Weight: Approx. 18.5g
Dimensions (mm)	20.4 × 15.1 × 22
