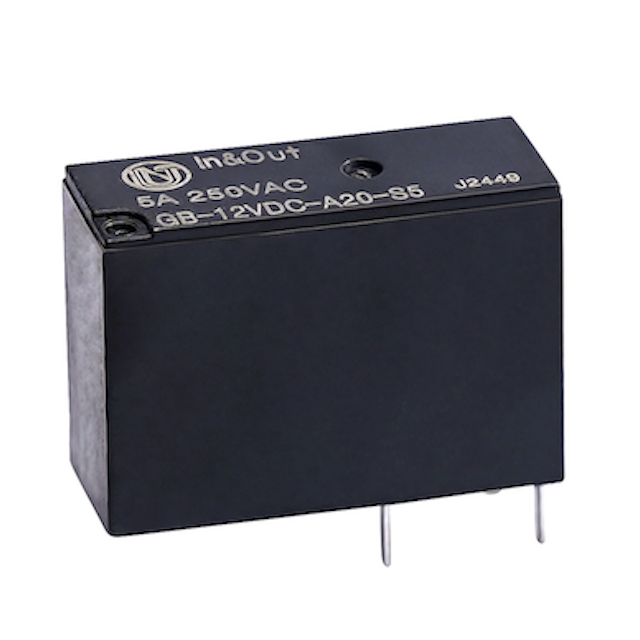

GB (5A)

General Power Relay

Features: 5A switching capability; 10kV impulse withstand voltage (between coil and contacts); Highly efficient magnetic circuit for high sensitivity: 200mW; Environmental friendly product (RoHS compliant); UL insulation system: Class F available

Application

Smart home solution
Home Appliance
Temperature Control
Industrial Control
Medicial Equipment
Security System
Anti-Theft System
Household appliance
Dehumidification Control Inverter, etc.

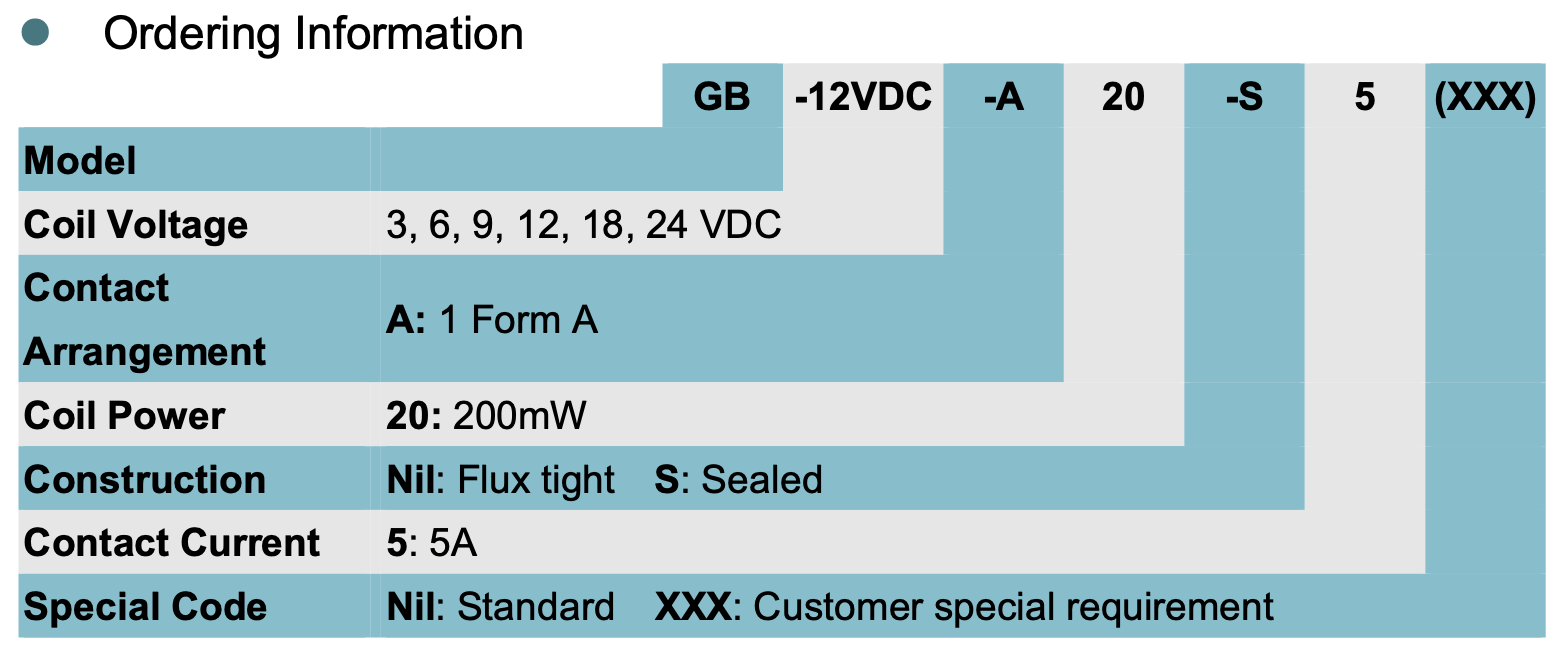

Add Inquiry (0) GB (5A) SPEC

Model: GB

Product Detail	Coil Voltage Form: DC relay Coil Voltage: 3~24VDC Contact Arrangement: 1A Terminal Type: PCB Coil Power Consumption: 0.2W Max. Switching Power: 1250VA / 150W Max. Switching Voltage: 250VAC Max. Switching Current: 5A Weight: Approx. 4g
Dimensions (mm)	20.5 × 7.2 × 15.3
Qualification	UL / VDE / CQC
