GENERAL POWER RELAY

GE

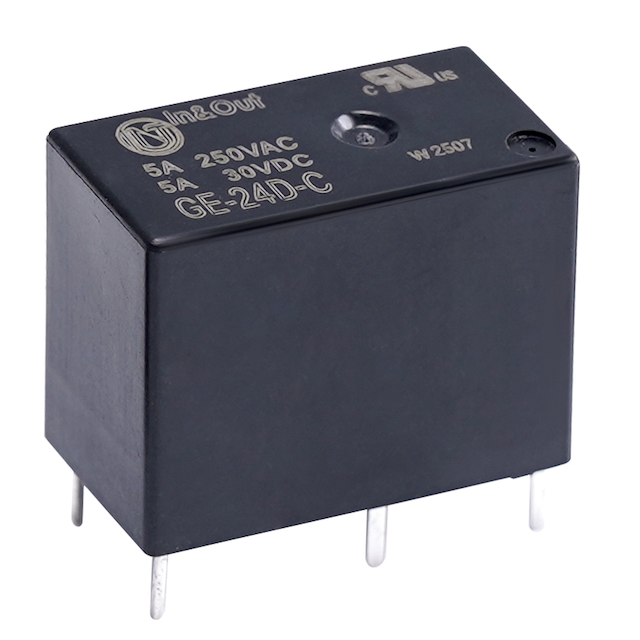

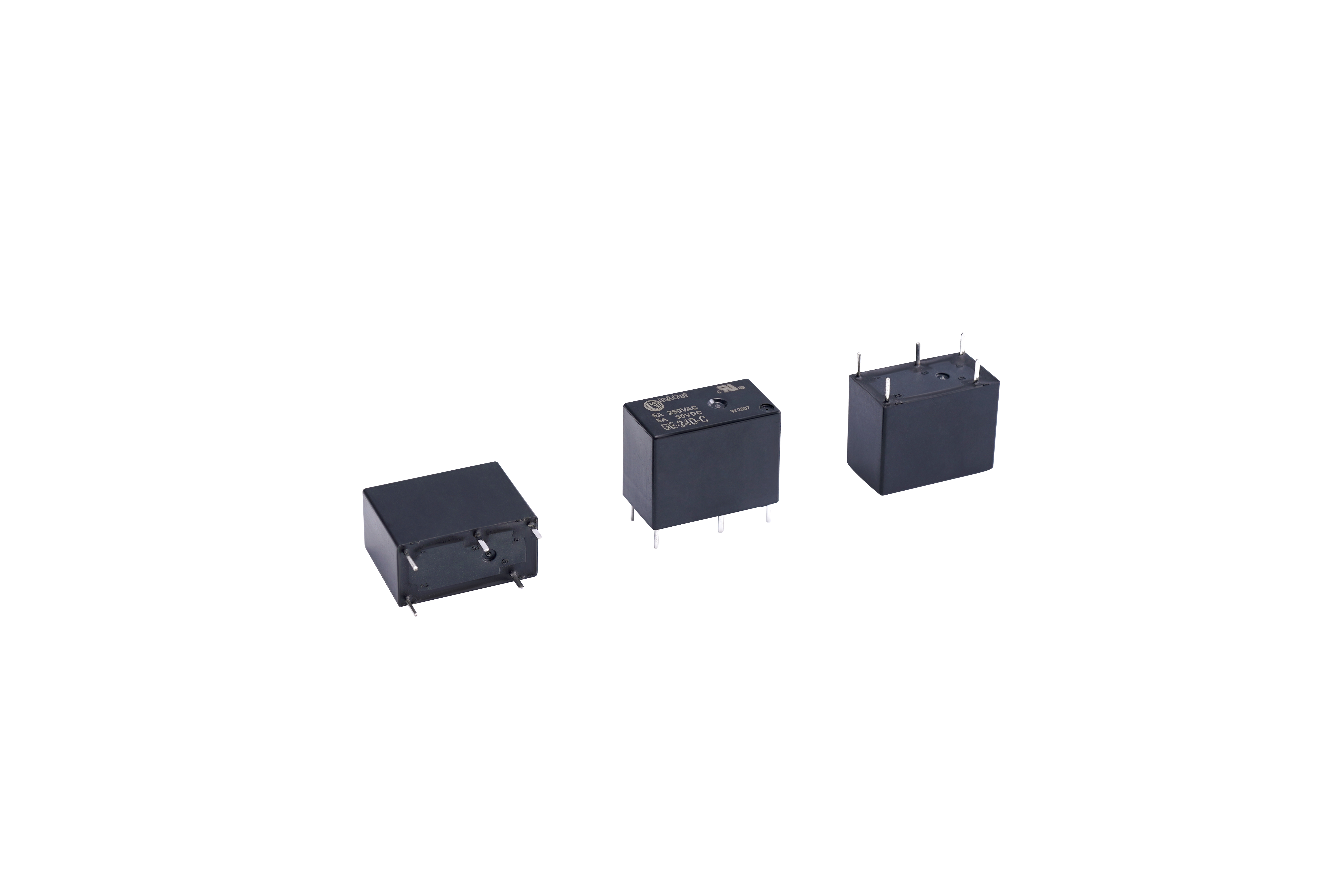

General Power Relay

Features: 10A switching capability; Creepage distance: 8mm (coil & contacts); 1 Form A and 1 Form C configurations; Subminiature, standard PCB layout; Plastic sealed and flux proofed types available; UL insulation system: Class F available; Environmental friendly product (RoHS compliant)

Application

Smart home solution
Home Appliance
Temperature Control
Industrial Control
Medicial Equipment
Security System
Anti-Theft System
Household appliance
Dehumidification Control Inverter, etc.

Add Inquiry (0) GE Relay Spec

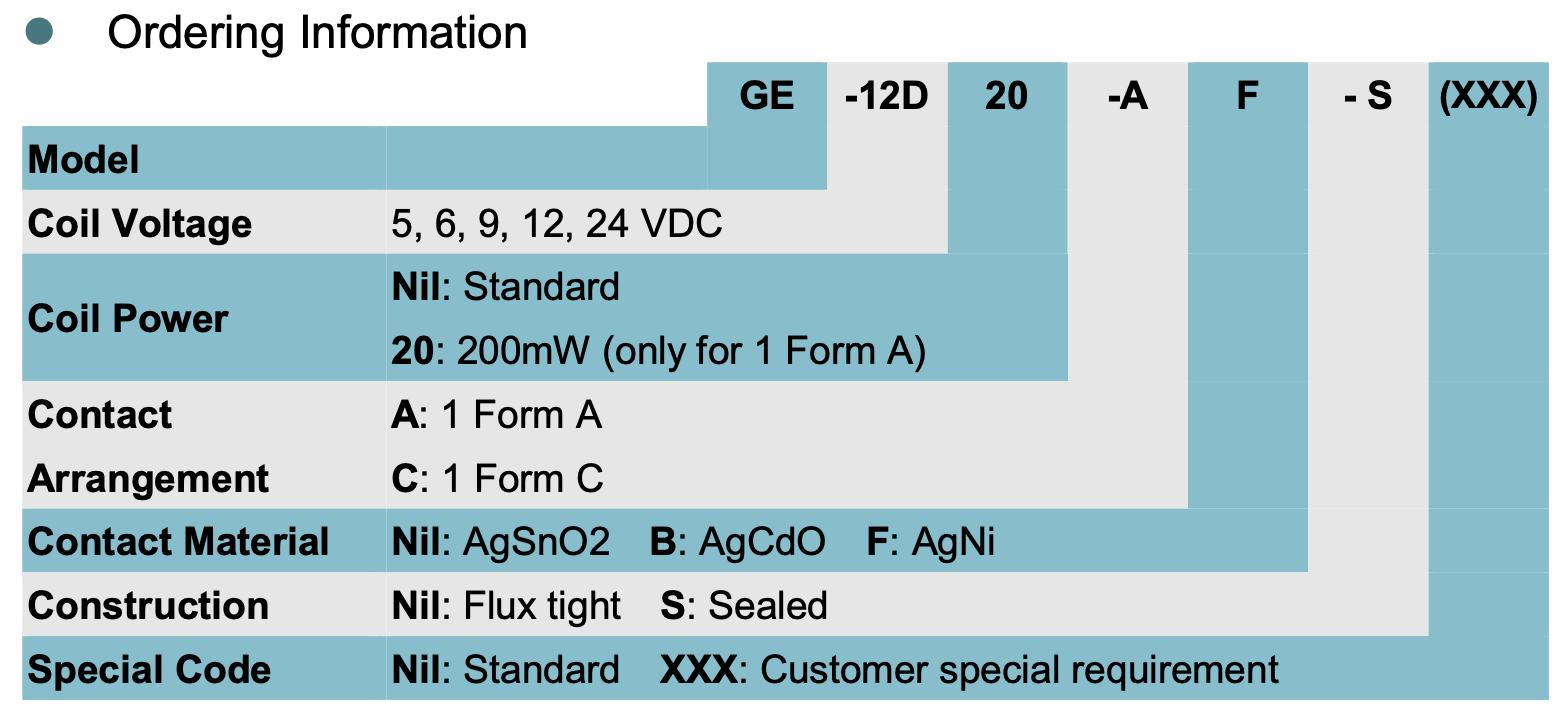

Model: GE

Product Detail	Coil Voltage Form: DC relay Contact Arrangement: 1 Form A, 1 Form C Contact Rating: 1A: 5A 250VAC / 30VDC, 10A 125VAC 1C: NO: 5A 250VAC / 30VDC, 10A 125VAC NC: 3A 250VAC / 30VDC Terminal Type: PCB Coil Voltage: 5VDC~24VDC Contact Material: Ag Alloy Coil Power Consumption: Standard 0.4W Sensitive Type 0.2W available Max. Switching Power: 1250VA / 150W Max. Switching Voltage: 250VAC / 30VDC Max. Switching Current: 10A Weight: Approx. 7g
Dimensions (mm)	20.5 × 10.2 × 15.3
Qualification	UL
