GENERAL POWER RELAY

GNA/GNAS

AC Power Relay

Features: AC voltage coil type; 16A switching capability; 1 & 2 pole configurations; 5kV dielectric strength (between coil and contacts); Low height: 15.7 mm; Creepage distance: 10mm; Plastic sealed and flux proofed types available; UL insulation system: Class F; Environmental friendly product (RoHS compliant); Dimensions: 29.0 x 12.7 x 15.7 mm

Application

Air Conditioner Compressor
Fan Motor Control
Refrigerator Compressor
Heater / Water Heater
Dishwasher
Oven
Small Motor (1HP Class) Start and Stop
Pump
Solenoid Valve Control
Automation Machinery Control (PLC Output)
Industrial Lighting or Heating Control Circuit
Small Power Switching in UPS System
Industrial or Commercial Lighting Circuit
Small Distribution Panel AC Load Switching, etc

Add Inquiry (0) GNA Relay Spec V2.1.3

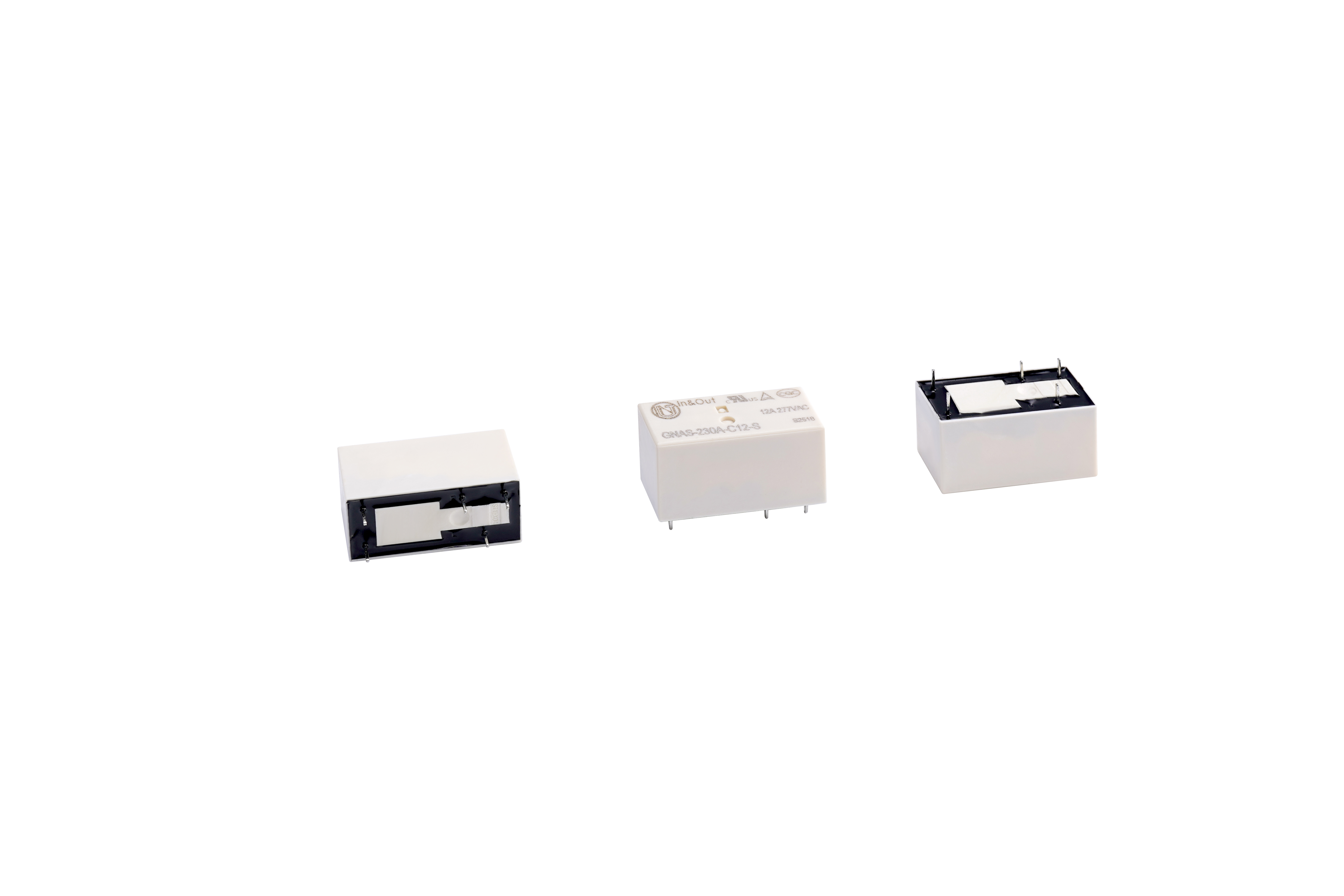

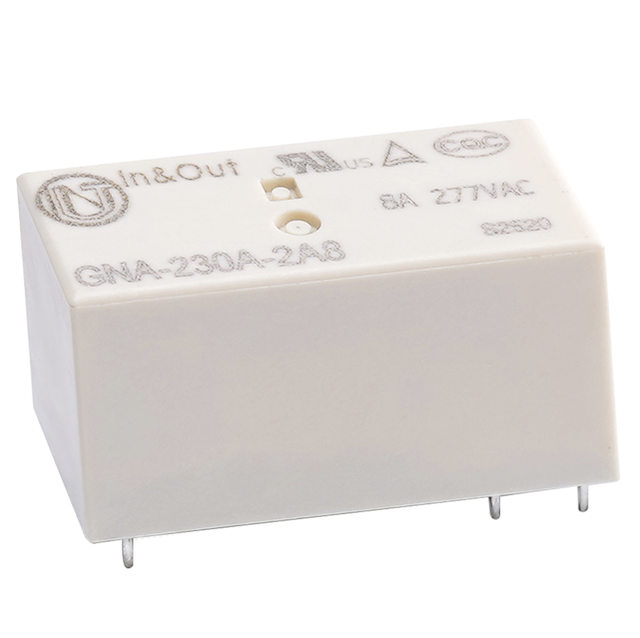

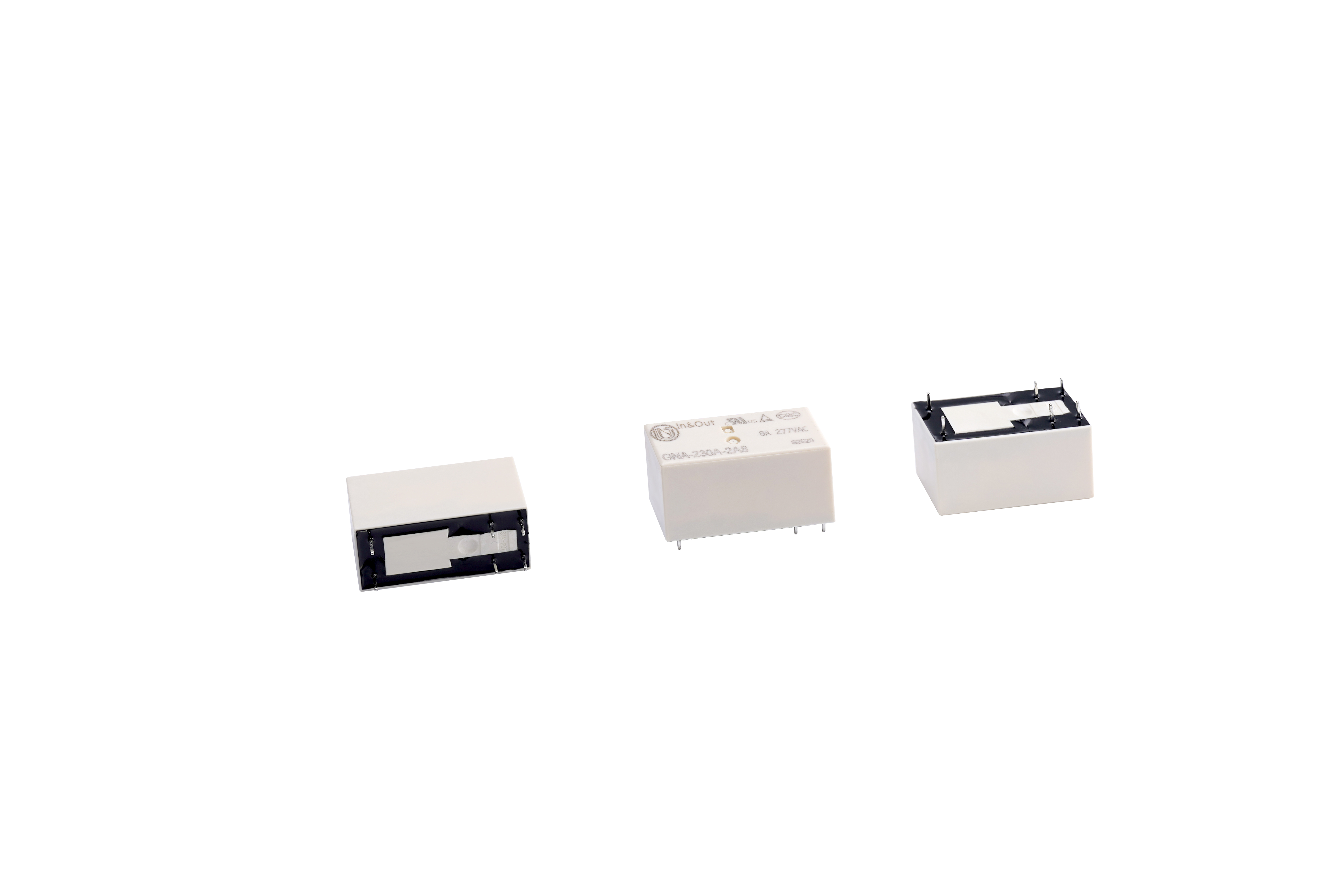

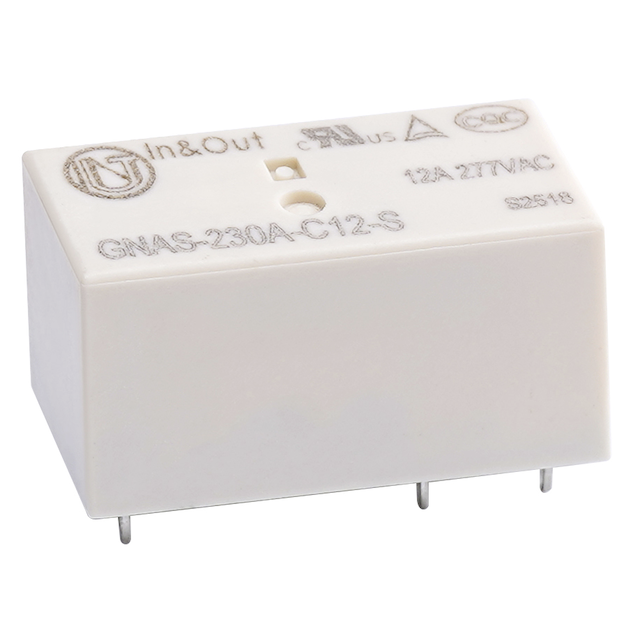

Model: GNA

Product Detail

Coil Voltage Form: AC relay

Coil Voltage: 24VAC / 115VAC / 230VAC

Contact Arrangement:
1A, 1B, 1C
2A, 2B, 2C

Contact Material: Ag Alloy

Coil Power Consumption: 0.75VA

Contact Rating:
1 Form A: 12A, 16A 250VAC (resistive)
2 Form A: 8A 250VAC (resistive)

Max. Switching Power:
1 Form A: 12A: 3000VA / 16A: 4000VA
2 Form A: 2000VA

Max. Switching Voltage: 440VAC

Max. Switching Current:
1 Form A: 12A / 16A
2 Form A: 8A

Weight: Approx. 13.5g

Certification: VDE, UL / CUL, CQC

Dimensions (mm)

29.0 × 12.7 × 15.7
