CEA

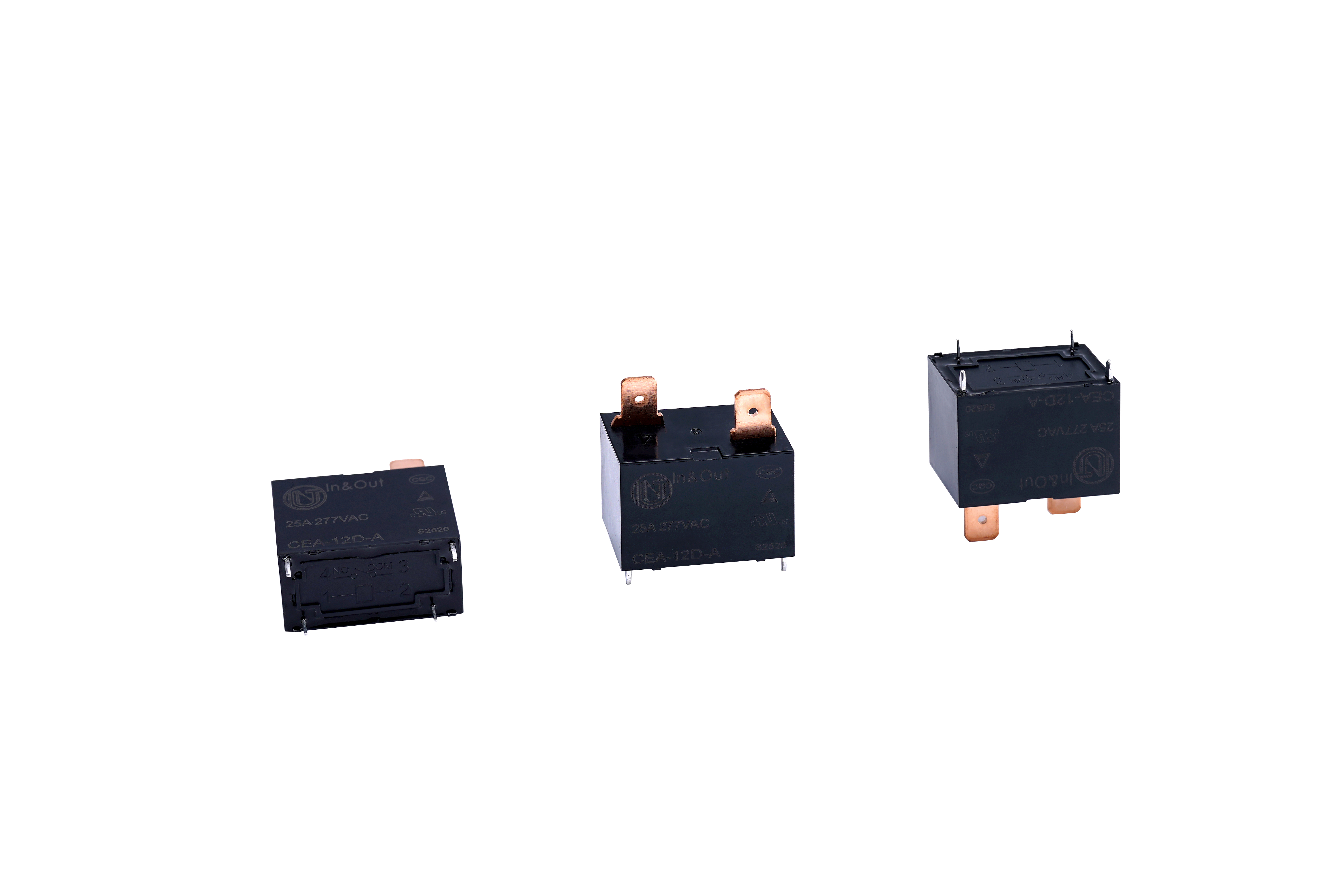

Miniature High Power Relay

Features: 25A Switching Capability; Heavy load up to 6925VA; 4.5kV dielectric strength (between coil and contacts); PCB & QC layouts available; UL insulation system: Class F; With bracket cover (CE-B Type); Environmental friendly product (RoHS compliant)

Home Appliances
A/C Contro
Electronic Water Heater
Refrigerator
Dehumidification Control Inverter, etc.

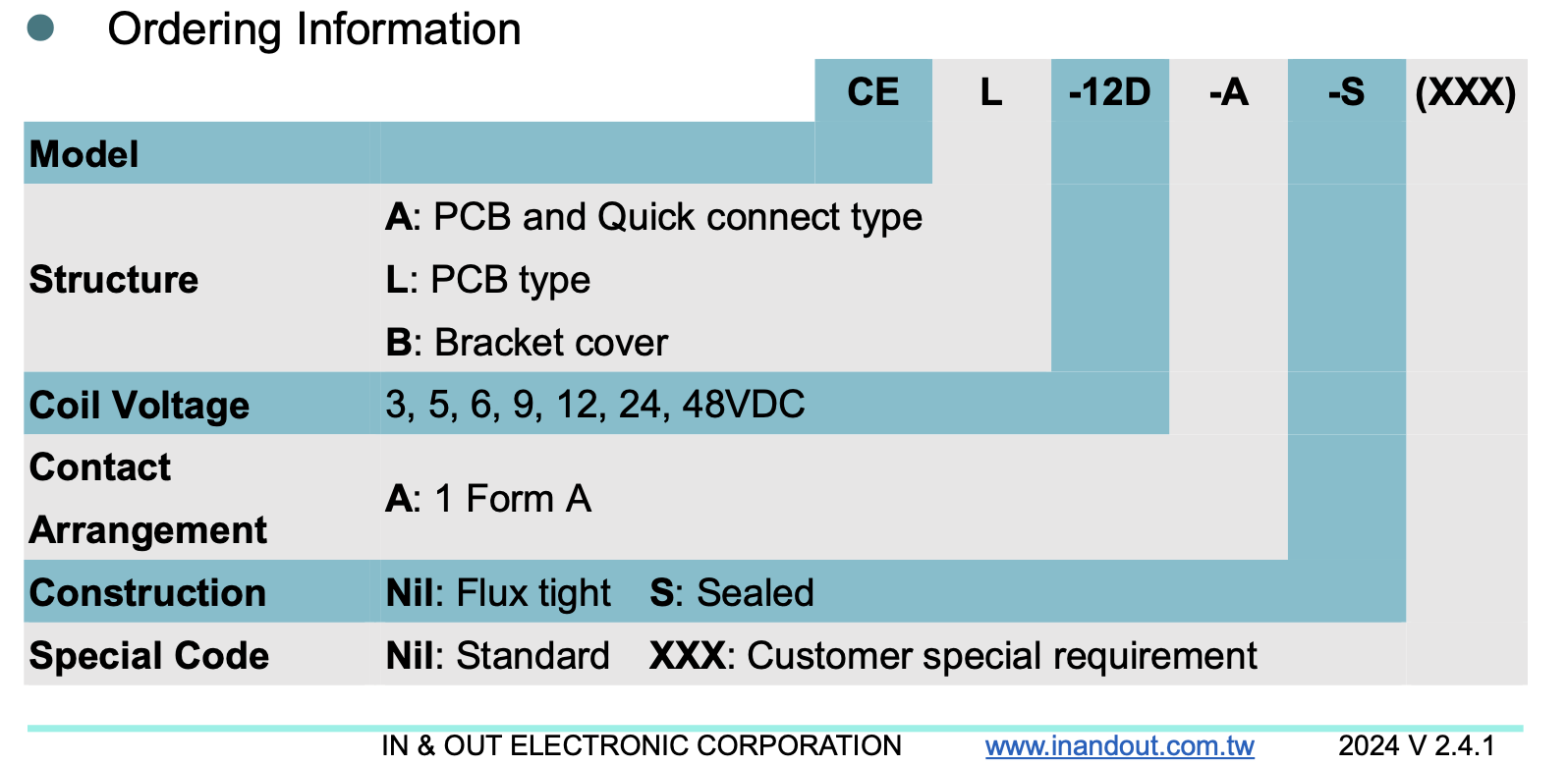

Add Inquiry (0) CE Relay Spec

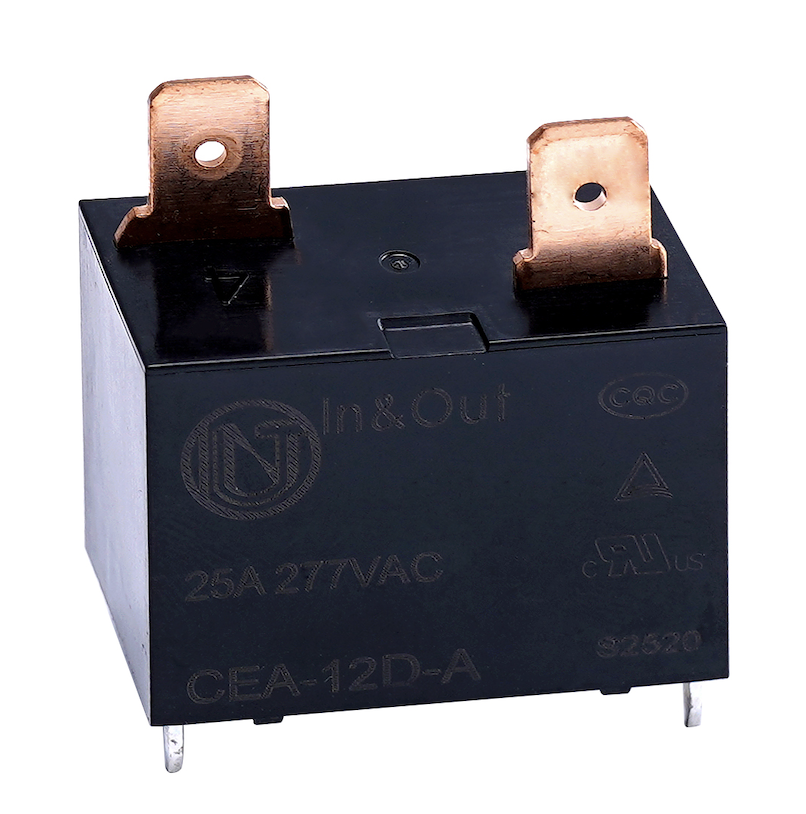

Model: CEA

Product Detail	25A contact switching capacity Maximum load up to 6925VA Dielectric strength between coil and contacts: 4.5kV PCB and Quick Connect terminals UL insulation class: Class F With bracket cover (CE-B type) Environment-friendly product (RoHS compliant) Contact gap: 1.5mm Suitable for motor load switching
Dimensions (mm)	30.4 × 16.0 × 23.3 (PCB & QC) 30.4 × 16.0 × 29.8 (Bracket)
