SIGNAL RELAY

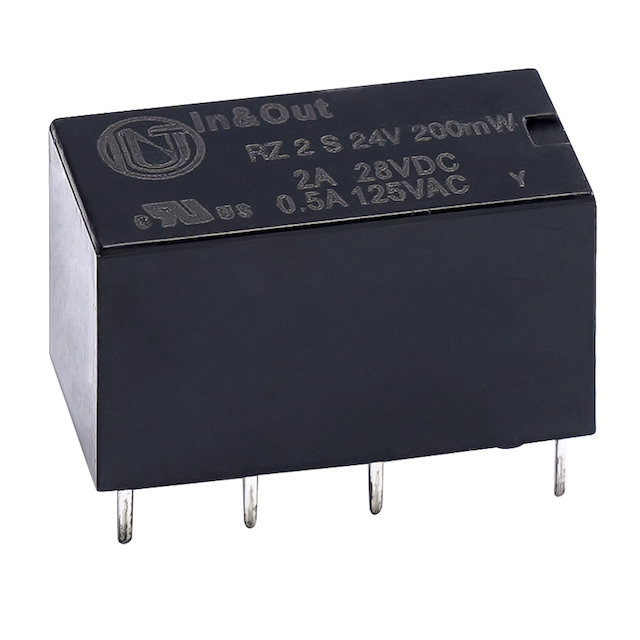

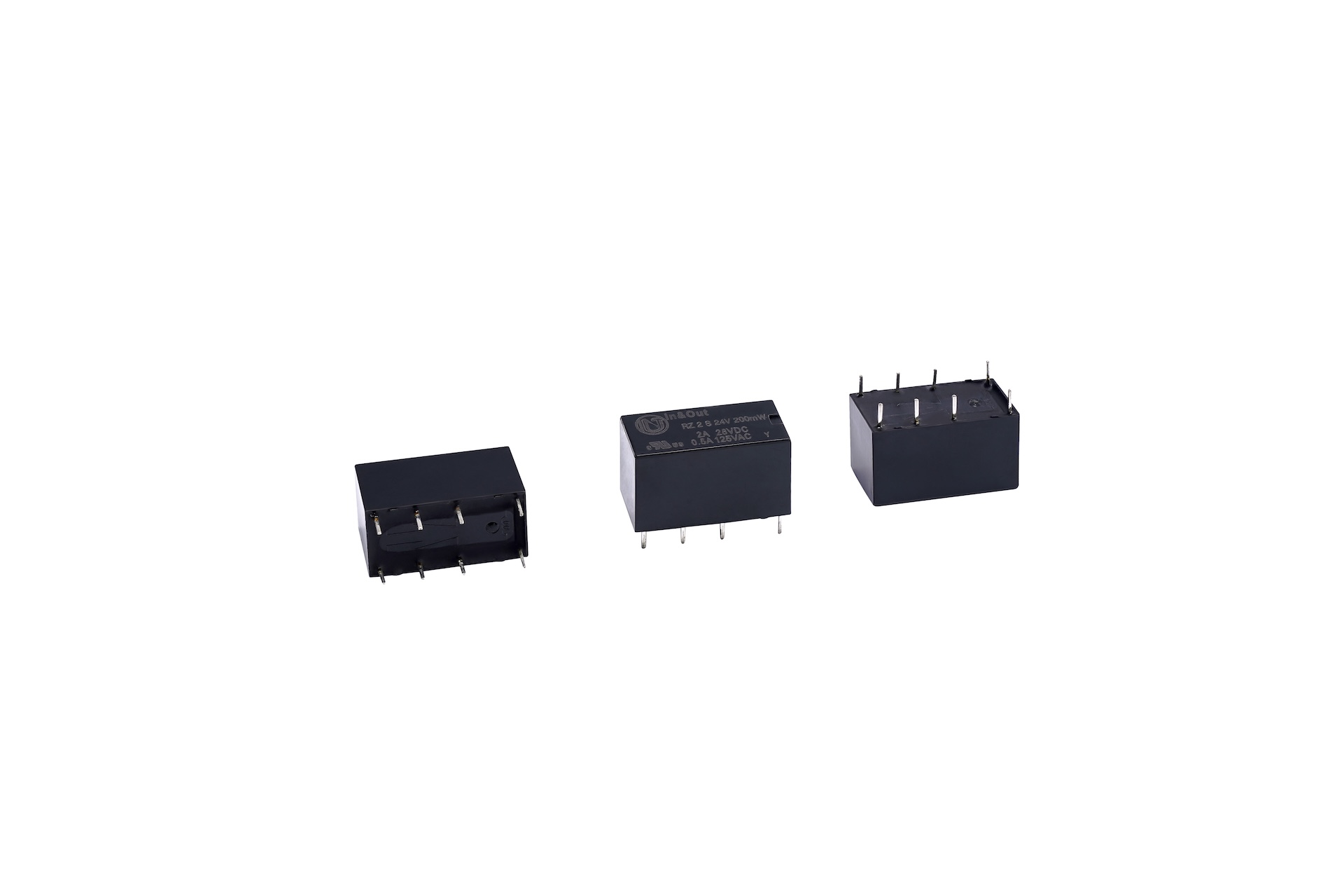

RZ2

Signal Relay

Features: Subminiature DIP Relay; 2 Form C configuration; Bifurcated contacts; Low coil consumption, high sensitivity; Environmental friendly product (RoHS compliant)

Application

Measurement Instruments
Office Automation
Telecommunication Equipment
Office Equipment
Security Alarm Systems
Medical Monitoring Equipment
Audio Visual Equipment
Flight Simulator
Wireless remote control toys
Sensor Control
Instrumentation
Household Appliances
Industrial Automatic Control Devices, etc.

Add Inquiry (0) RZ2 Relay Spec V2.0.2

Model: RZ2

Product Detail	Coil Voltage Form: DC relay Coil Voltage: 5~24VDC Contact Material: Ag Alloy Contact Arrangement: 2C Contact Rating: 2A 125VAC / 2A 28VDC Coil Power Consumption: 150mW / 200mW Max. Switching Power: 250VA / 56W Max. Switching Voltage: 125VAC / 28VDC Max. Switching Current: 2A Weight: Approx. 5g
Dimensions (mm)	20.2 × 10.0 × 12.0
