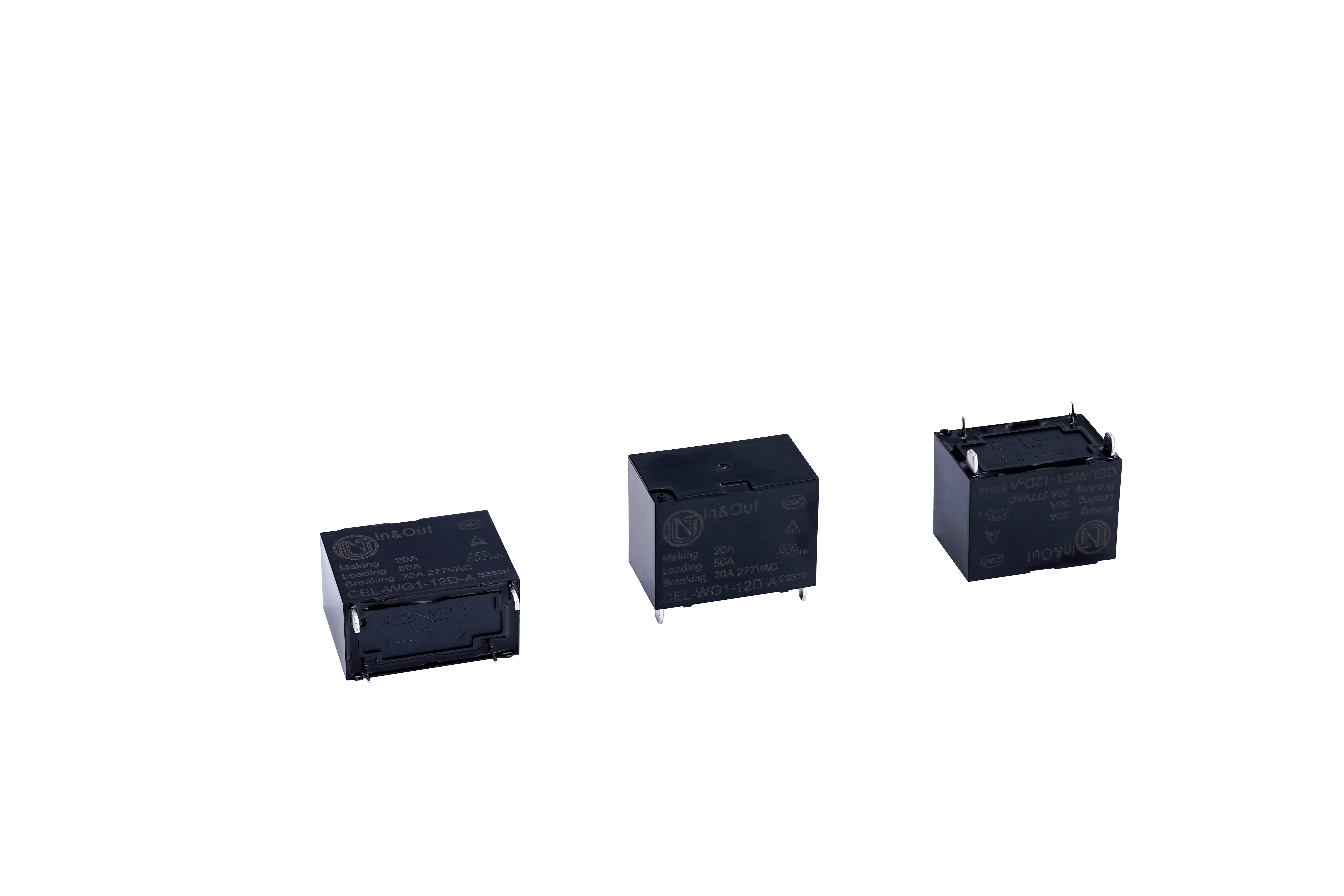

CEL-WG

Miniature High Power Relay

Features: 50A loading and 43A 277VAC switching capability; 1.8mm contact gap (compliant to IEC 62109-2-2011); Ideal for UPS; Low coil holding voltage contributes to saving energy of equipment; UL insulation system: Class F; Environmental friendly product (RoHS compliant)

To Inverter used for Photovoltaic Power Generation System
Solar Inverter
UPS System
AC/DC Power Control
Industrial Control, etc.

Add Inquiry (0)

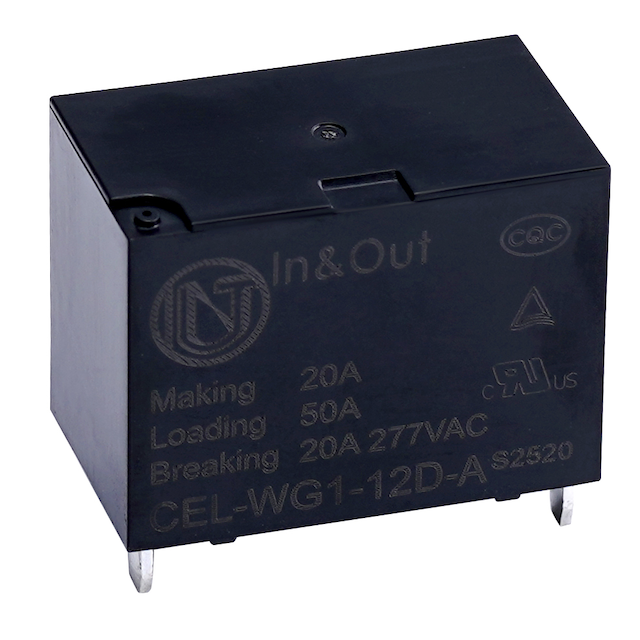

Model: CEL-WG

Product Detail

Coil Voltage Form: DC

Coil Voltage: 6VDC~24VDC

Single Contact

Contact Material: Ag Alloy

Contact Rating:
Making 20A, Loading 50A, Breaking 20A
Making 50A, Breaking 20A
43A 277VAC

Contact Gap: 1.8mm or 2.0mm available

Max. Switching Power: 11911VA

Max. Switching Voltage: 277VAC

Max. Switching Current: 50A

Coil Power Consumption: Approx. 3.8W or 1.6W

Terminal Type: PCB

Weight: Approx. 25g

Dimensions (mm)

30.4 × 16.0 × 23.3
