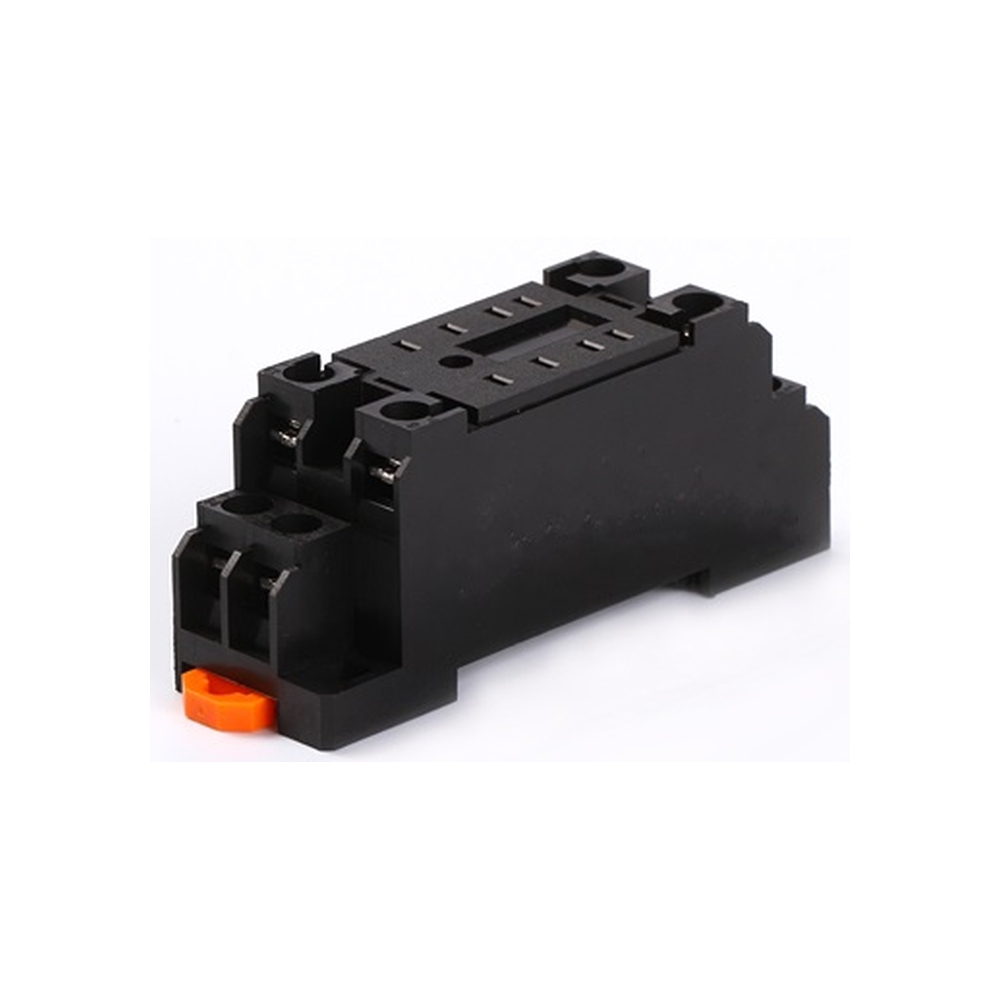

H Series Relay Socket
HB-2C-C2
H Series Relay Socket- Features
- Rated current 10A / voltage 300V for medium-load applications
- Dielectric strength 2000V/S for reliable insulation protection
- Screw torque 1.0 Nm ensures secure mounting
- Supports wire range 20–14 AWG / 0.5–2.5 mm² for flexible wiring
- Operating temperature −40℃ to +85℃, durable and reliable
- Weight 34 g, combining lightweight and stability
Application
- Automotive relay sockets and in-vehicle circuits
- Industrial control loops and PLC modules
- Motor, fan, and pump load switching
- HVAC: compressors and heaters
- Home appliances and small power control
| Specification HB-2C-C2 |
| Socket Type | HB-2C-C2 | |
| Rated Load | Current | 10 A |
| Voltage | 300 V | |
| Dielectric Strength | 2000 V/S | |
| Screw Torque | 1.0 Nm | |
| External Connection Wire | 20–14 AWG / 0.5–2.5 mm² | |
| Ambient Temperature | −40 ℃ ~ +85 ℃ | |
| Weight | 34 g | |
| Outline Dimensions |
Outline Dimensions (unit: mm)
