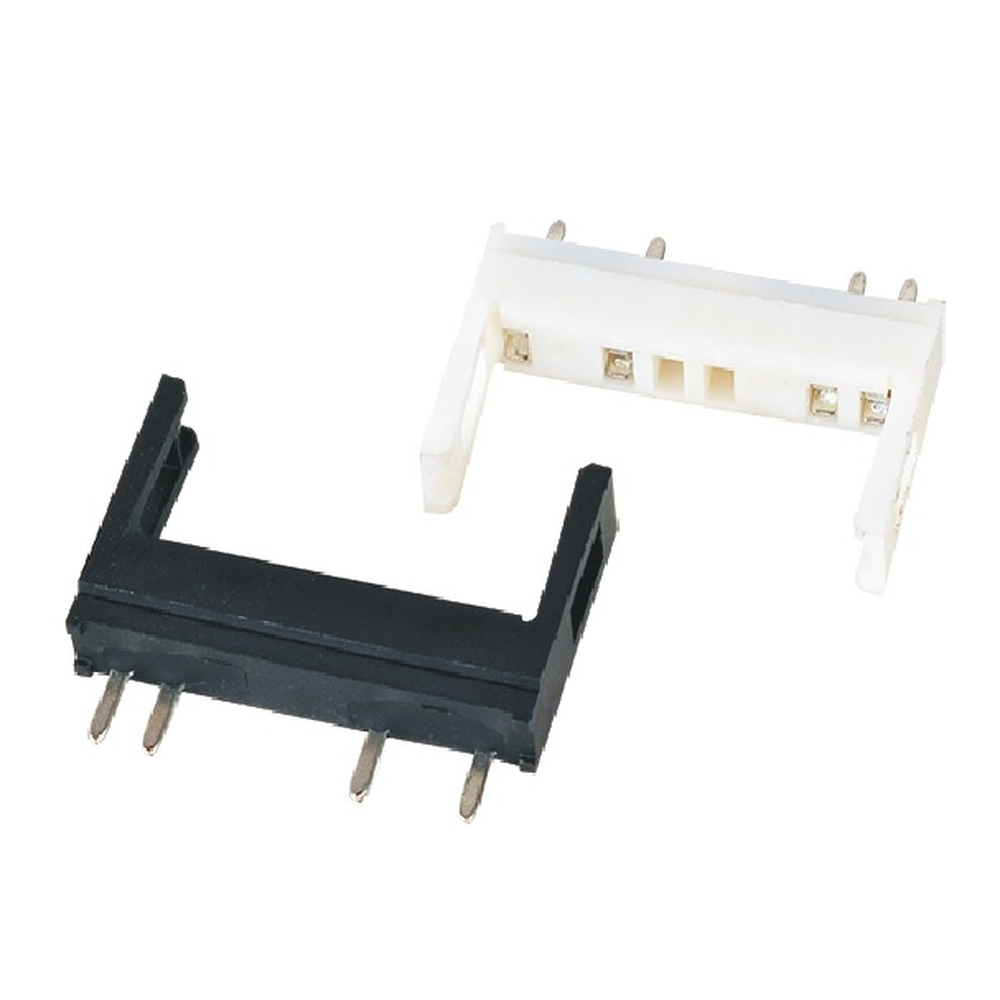

S Series Relay Socket
SA
S Series Relay Socket- Features
- Rated 7A / 250V, suitable for general relay socket use
- Dielectric strength 2000V/S for reliable insulation
- Compact and lightweight (0.75g) for easy PCB mounting
- Operating temperature range −40℃ ~ +70℃
- Designed for stable and secure relay connection
Application
- PCB-mounted relays and modules
- Control and automation circuits
- Small appliances and electronic devices
- Communication and signal transmission systems
- General-purpose relay sockets
| Specification SA |
| Socket Type | SA | |
| Rated Load | Current | 7 A |
| Voltage | 250 V | |
| Dielectric Strength | 2000 V/S | |
| Ambient Temperature | −40 ℃ ~ +70 ℃ | |
| Weight | 0.75 g | |
| Outline Dimensions |

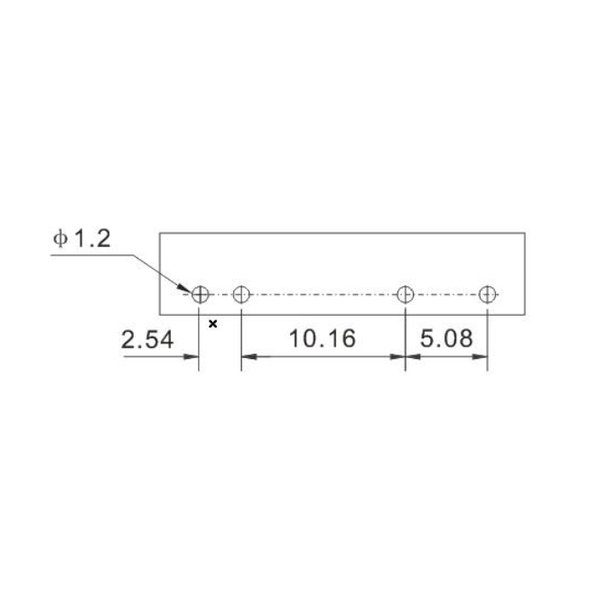

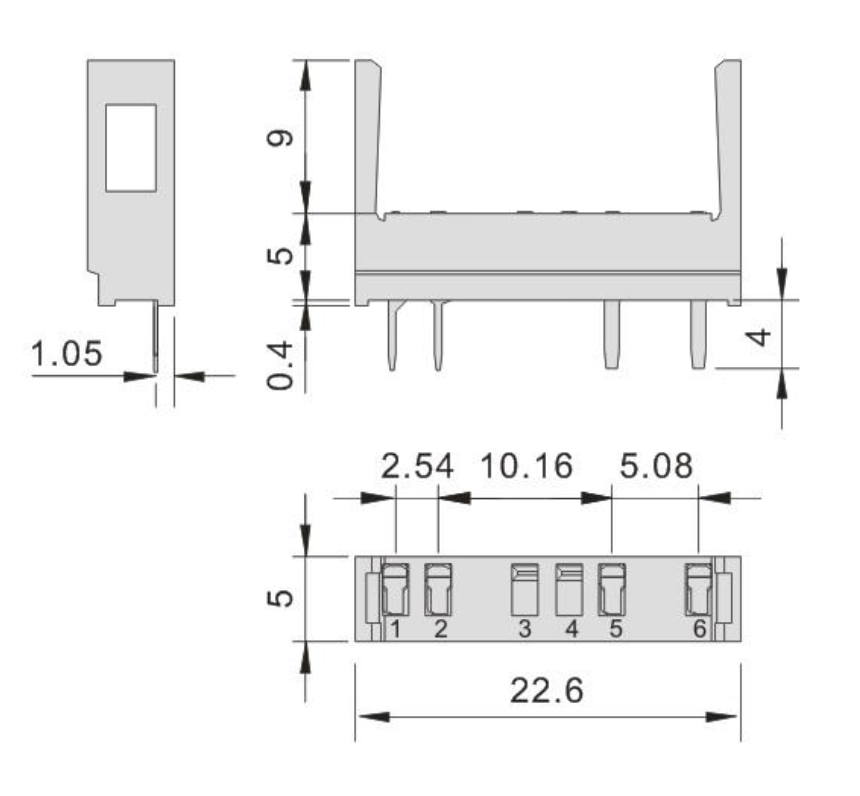

Outline Dimensions (unit: mm)
