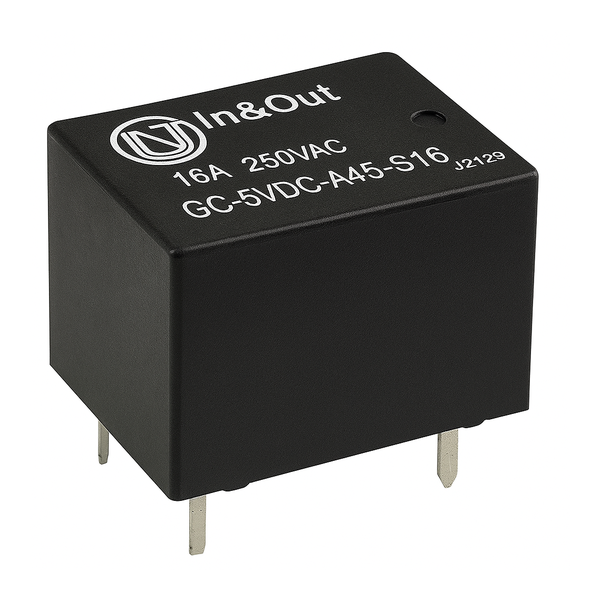

GENERAL POWER RELAY

GC 16A

General Power Relay

Features: 20A switching capability; 1 Form A configurations; Subminiature, standard PCB layout; Plastic sealed and flux proofed types available; UL insulation system: Class F; Environmental friendly product (RoHS compliant); Dimensions: 18.2 x 10.2 x 15.5 mm

Application

Smart home solution
Home Appliance
Temperature Control
Industrial Control
Medicial Equipment
Security System
Anti-Theft System
Household appliance ...etc

Add Inquiry (0) GC(16A) SPEC

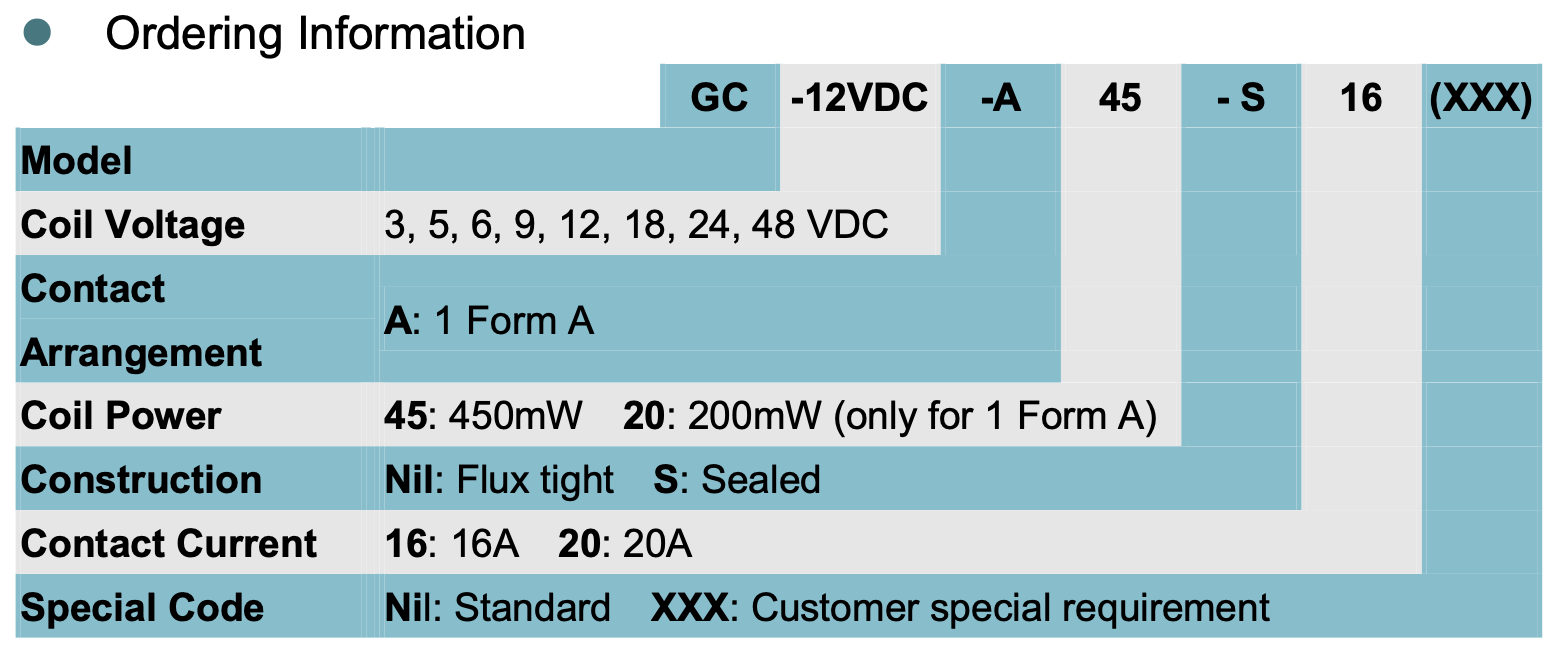

Model: GC 16A

Product Detail	Coil Voltage Form: DC relay Coil Voltage: 3~48VDC Contact Arrangement: 1 Form A Contact Rating: 10A 250VAC / 18A 277VAC / 20A 250VAC Terminal Type: PCB Contact Current: 16A & 20A available Coil Power: Standard: 0.45W Sensitive: 0.2W Max. Switching Power: 15540VA / 600W Max. Switching Voltage: 277VAC / 30VDC Max. Switching Current: 20A Weight: Approx. 6g
Dimensions (mm)	18.2 × 10.2 × 15.5
